Front Bumper Fascia Energy Lower Absorber Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) Front Bumper Fascia Replacement (Encore) . |
|

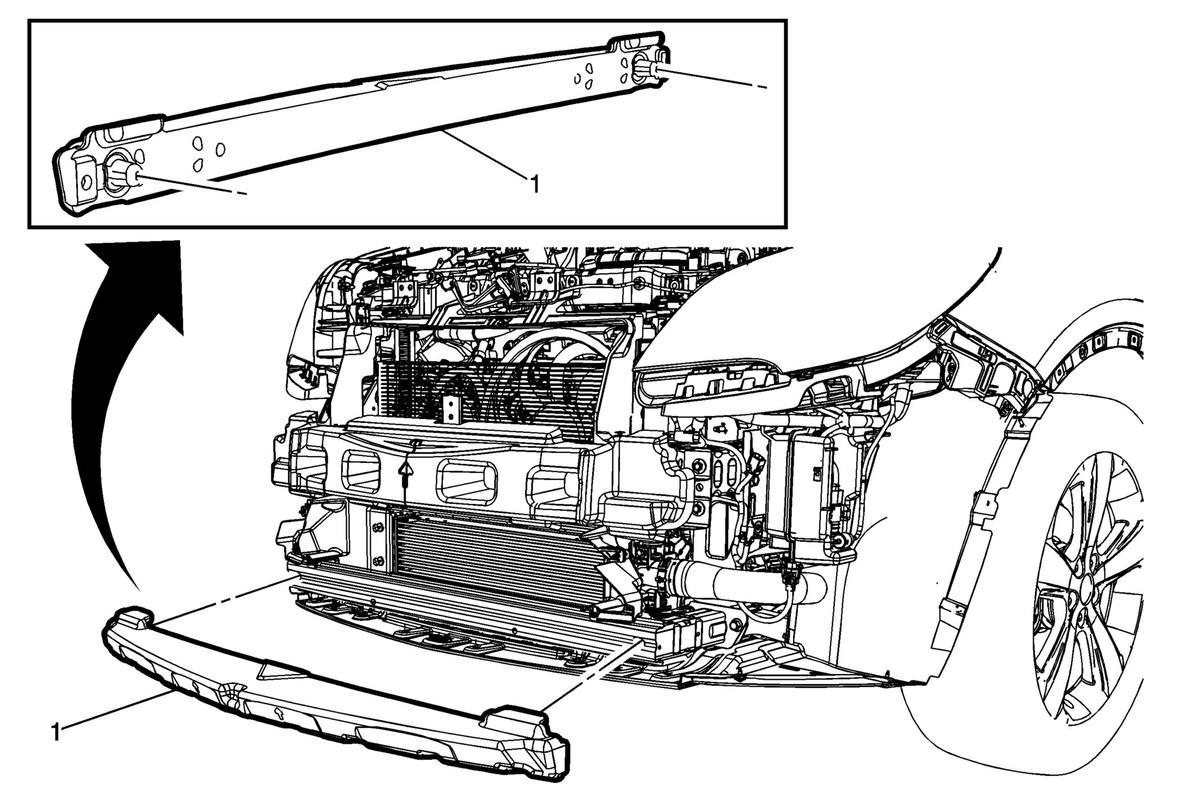

| 1 | Front Bumper Fascia Energy Lower Absorber Procedure Slowly pull the energy absorber from the front bumper lower impact bar. |
