Front Bumper Fascia Guide Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

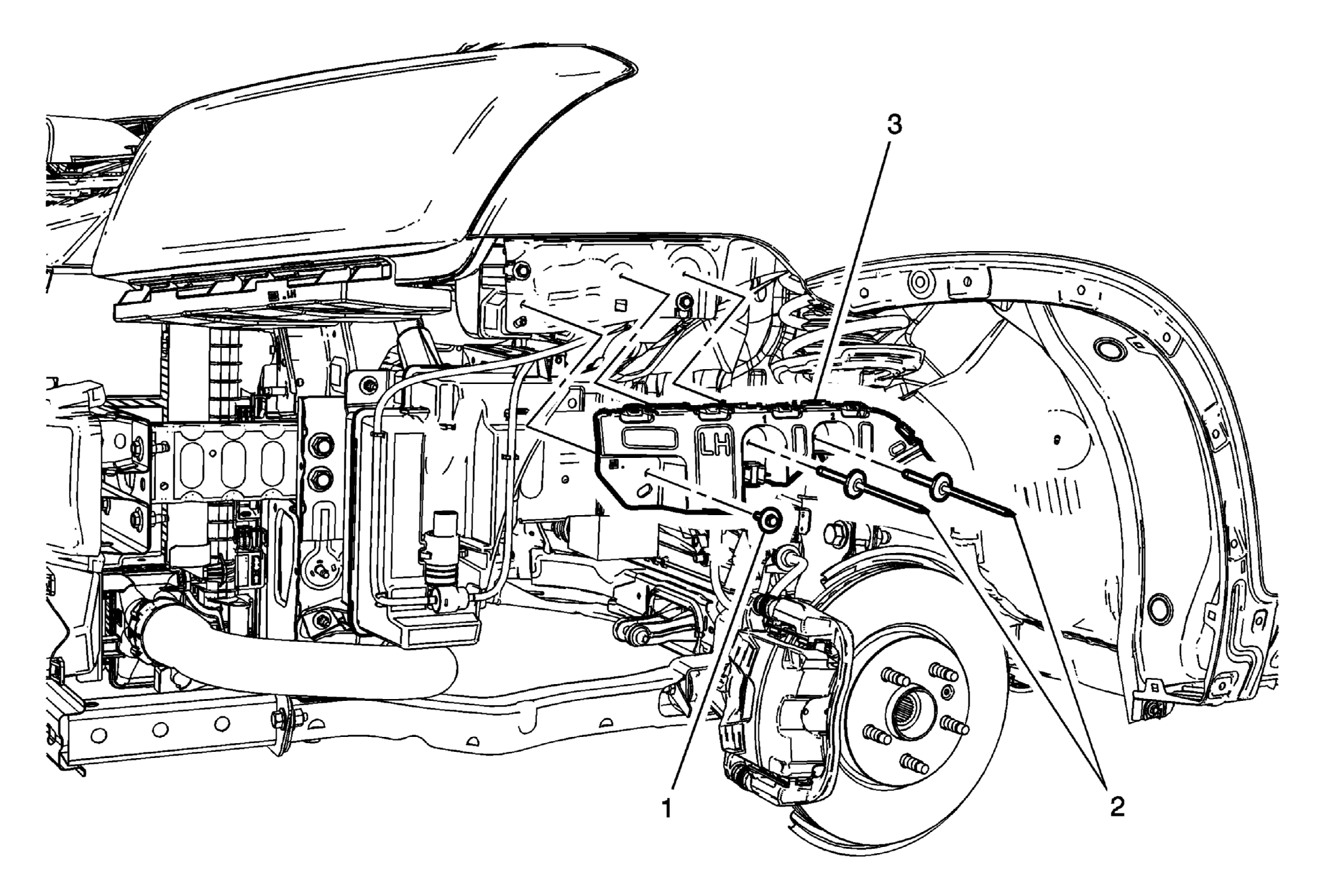

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) Front Bumper Fascia Replacement (Encore) .Refer to Eye Protection Warning . |
|
| 1 | Headlamp Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Bumper Fascia Guide Rivet (Qty: 2) |
| 3 | Front Bumper Fascia Guide |
