Front Bumper Fascia Air Deflector Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

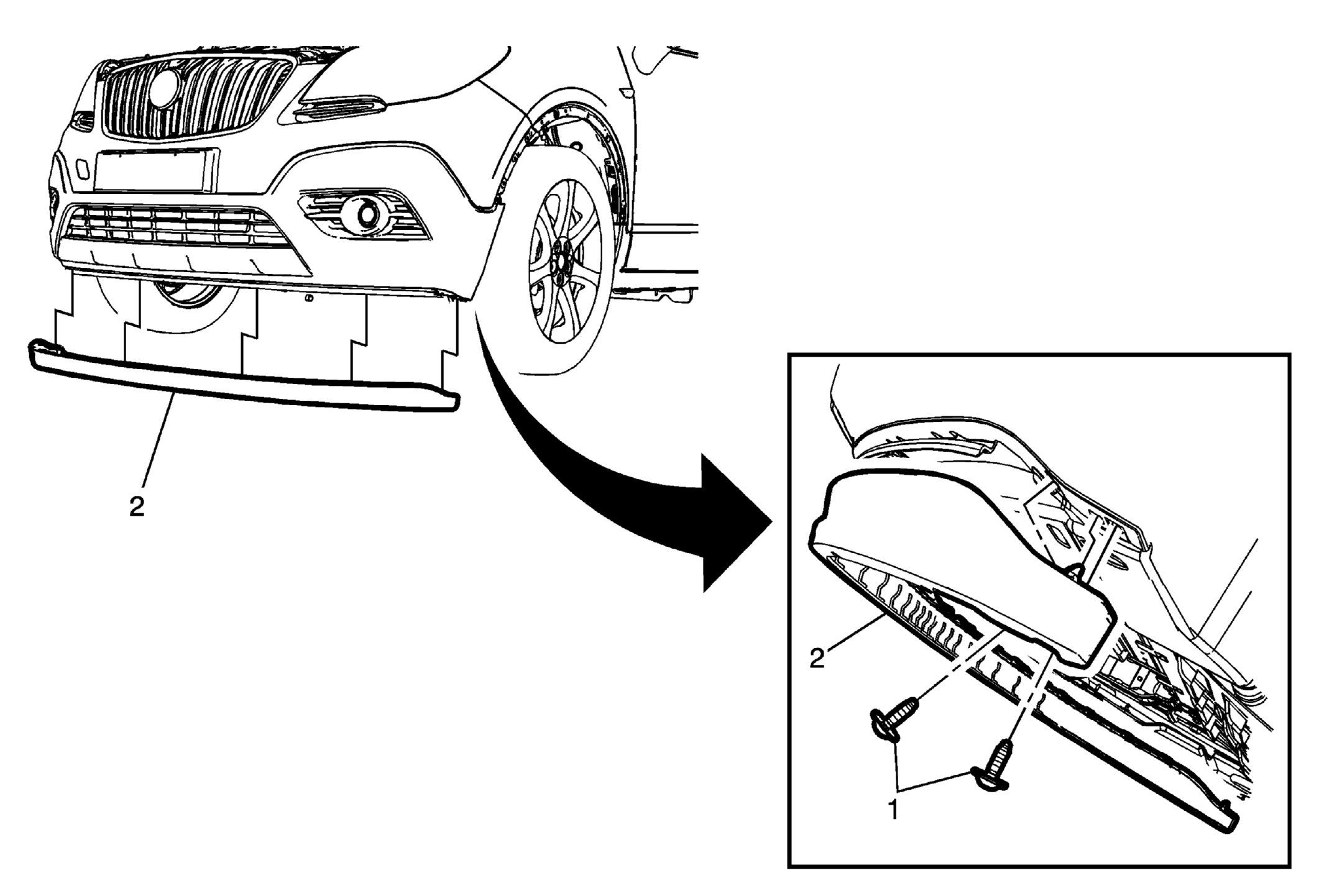

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement |
|
| 1 | Front Bumper Fascia Air Deflector Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Front Bumper Fascia Air Deflector Procedure Remove the front bumper fascia air deflector pulling forward to release the retainer tabs from the fascia. |
