Windshield Defroster Outlet Duct Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

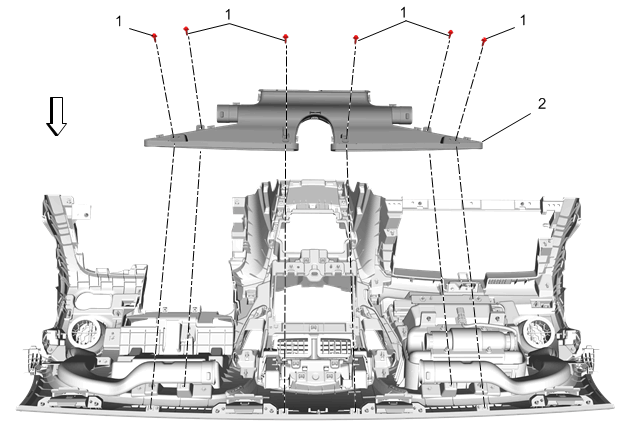

Fig 1: Windshield Defroster Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Trax)Instrument Panel Assembly Replacement (Encore) . Remove the instrument panel outer air outlet duct. Refer to Instrument Panel Outer Air Outlet Duct Replacement (Trax) Instrument Panel Outer Air Outlet Duct Replacement (Encore) .
1	Windshield Defroster Outlet Duct Fastener (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Windshield Defroster Outlet Duct CAUTION: Refer to HVAC Duct Heat Stake Caution . Procedure Disconnect the windshield defroster outlet duct from the right and left side window defroster outlet ducts.

Call out

Component Name

Preliminary Procedures

Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Trax)Instrument Panel Assembly Replacement (Encore) .
Remove the instrument panel outer air outlet duct. Refer to Instrument Panel Outer Air Outlet Duct Replacement (Trax) Instrument Panel Outer Air Outlet Duct Replacement (Encore) .

Windshield Defroster Outlet Duct Fastener (Qty: 6)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Windshield Defroster Outlet Duct

CAUTION:

Refer to HVAC Duct Heat Stake Caution .

Procedure
Disconnect the windshield defroster outlet duct from the right and left side window defroster outlet ducts.
