Instrument Panel Outer Air Outlet Duct Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

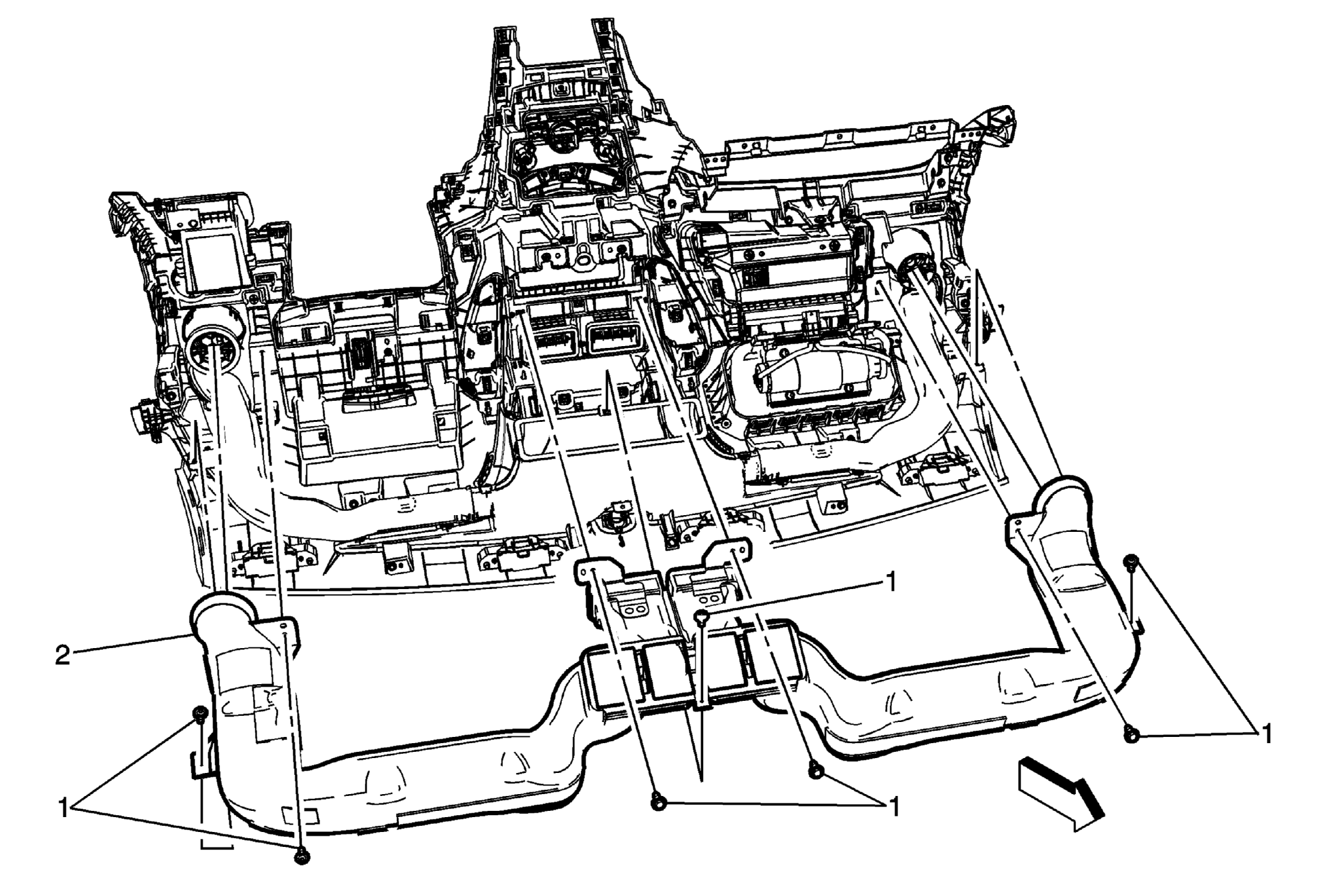

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Trax) . |
|
| 1 | Instrument Panel Outer Air Outlet Duct Bolt (Qty: 7)
CAUTION:
Refer to Fastener Caution . |
| 2 | Instrument Panel Outer Air Outlet Duct |
