Removal Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Instrument Panel Outer Air Outlet Duct Replacement (Trax) Instrument Panel Outer Air Outlet Duct Replacement (Encore) Remove

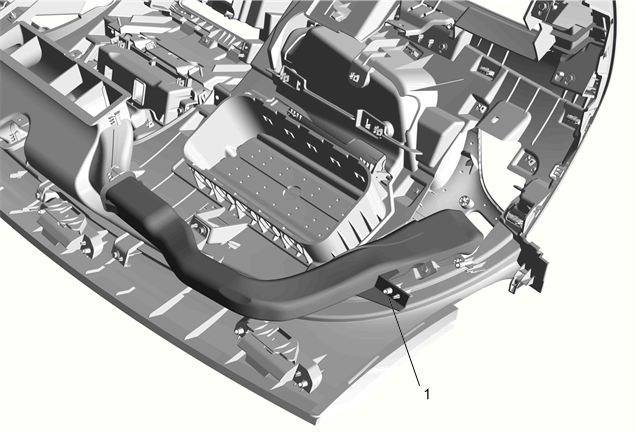

- Using the appropriate tool, remove the heat stake (1) securing the right side window defogger outlet duct to the instrument panel.
- Side Window Defogger Outlet Duct - Right Side - Remove
NOTE:
The side window defogger outlet duct is fastened onto the instrument panel by the heat staking method. For the re-securing side window defogger outlet duct refer to the installation procedure.
