Heater and Air Conditioning Evaporator and Blower Upper Case Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

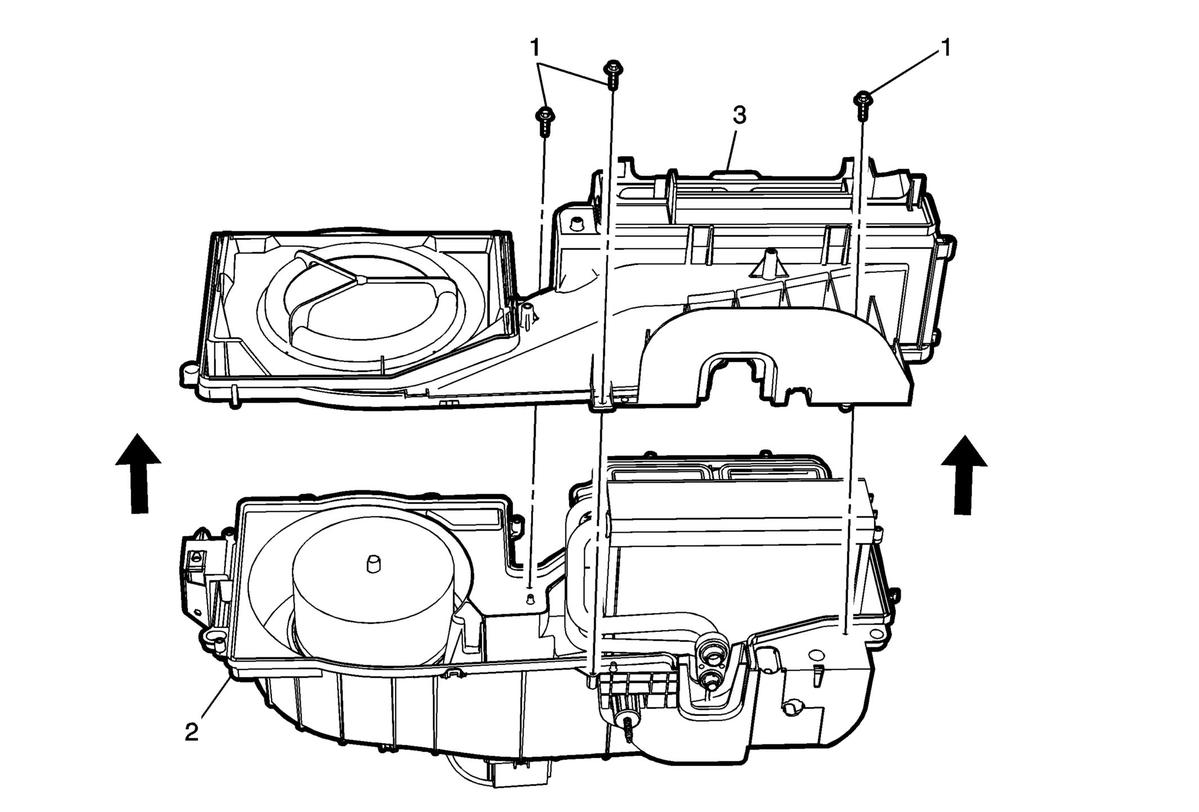

| Call out | Component Name |
|---|---|
| Preliminary Procedure Remove the air conditioning evaporator case assembly. Refer to Air Conditioning (A/C) Evaporator Case Assembly Replacement . |
|
| 1 | Heater and Air Conditioning Evaporator and Blower Case Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.0 N.m (18 lb in) |
| 2 | Heater and Air Conditioning Evaporator and Blower Lower Case |
| 3 | Heater and Air Conditioning Evaporator and Blower Upper Case Procedure Transfer all the components. |
