Air Conditioning (A/C) Evaporator Case Assembly Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

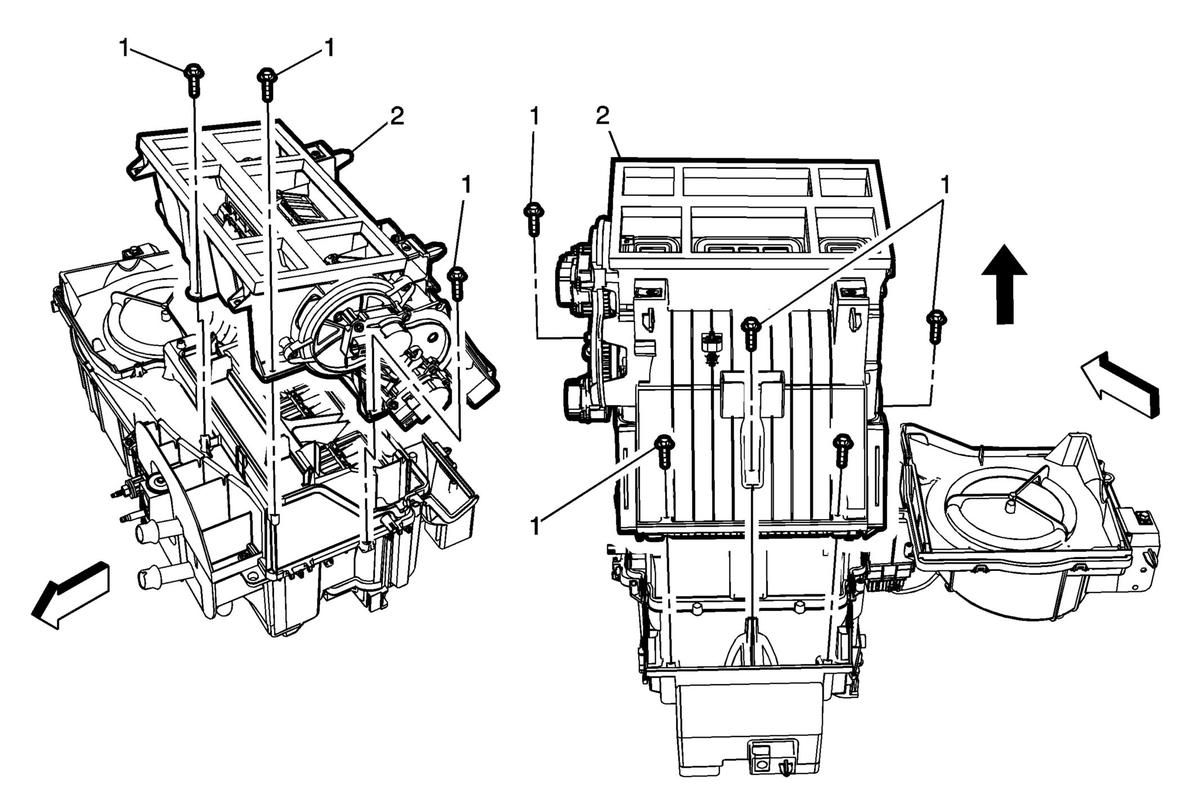

Fig 1: Air Conditioning (A/C) Evaporator Case Assembly

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove the air distributor case assembly. Refer to Air Distributor Case Replacement . Remove the mode control cam actuator, if equipped. Refer to Mode Control Cam Actuator Replacement (C67) . Remove the mode control cable, if equipped.
1	Air Conditioning Evaporator and Blower Module Bolt (Qty: 8) CAUTION: Refer to Fastener Caution .
2	Air Conditioning Evaporator Case Assembly Procedure Transfer all the components.

Call out

Component Name

Preliminary Procedures

Remove the air distributor case assembly. Refer to Air Distributor Case Replacement .
Remove the mode control cam actuator, if equipped. Refer to Mode Control Cam Actuator Replacement (C67) .
Remove the mode control cable, if equipped.

Air Conditioning Evaporator and Blower Module Bolt (Qty: 8)

CAUTION:

Refer to Fastener Caution .

Air Conditioning Evaporator Case Assembly
Procedure
Transfer all the components.
