Heater and Air Conditioning Evaporator and Blower Lower Case Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

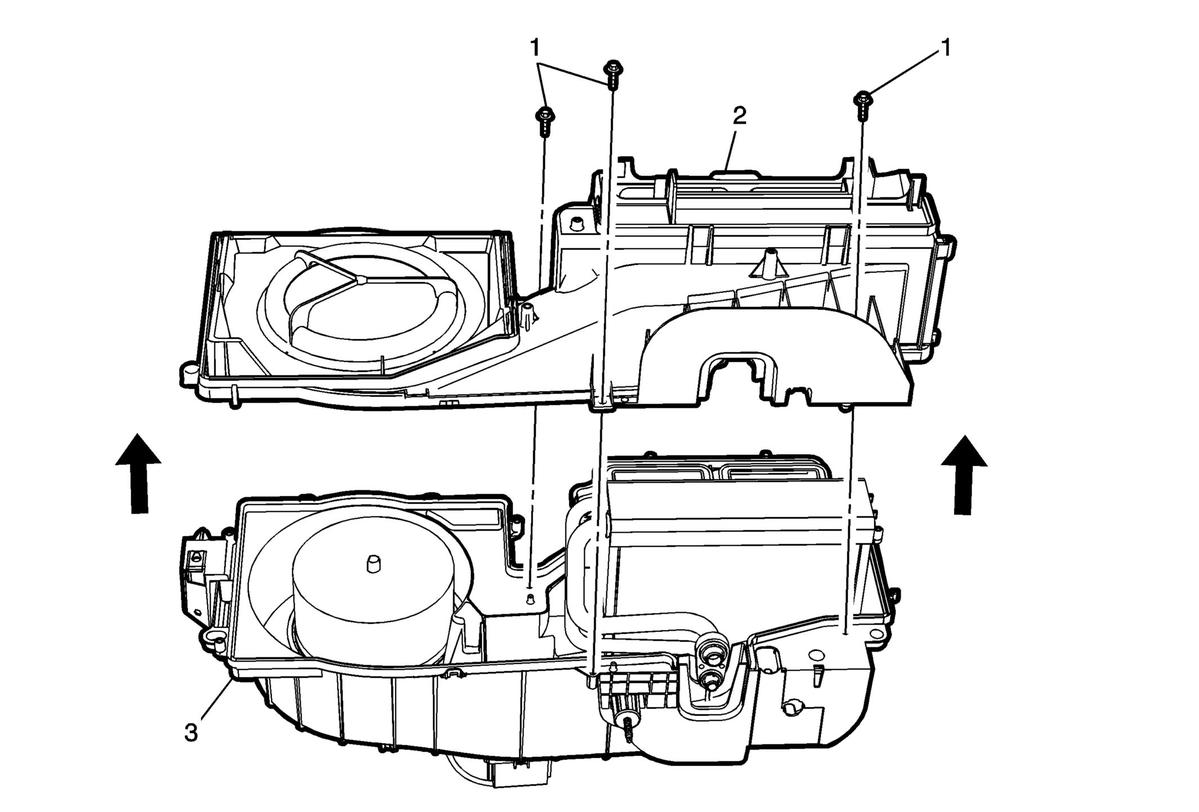

Fig 1: Heater And Air Conditioning Evaporator And Blower Lower Case

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove the air distributor case. Refer to Air Distributor Case Replacement . Remove the air conditioning evaporator case assembly. Refer to Air Conditioning (A/C) Evaporator Case Assembly Replacement .
1	Heater and Air Conditioning Evaporator and Blower Case Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.0 N.m (18 lb in)
2	Heater and Air Conditioning Evaporator and Blower Upper Case
3	Heater and Air Conditioning Evaporator and Blower Lower Case Procedure Transfer all the components.
