Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Heater Outlet Hose
    GM2791536Courtesy of GENERAL MOTORS COMPANY
  1. Install the heater outlet rear hose (2) into the heater outlet hose connector (3).
  2. Using BO-38185  Hose Clamp Pliers , reposition the heater outlet rear hose clamp (1) on the heater outlet rear hose (2).

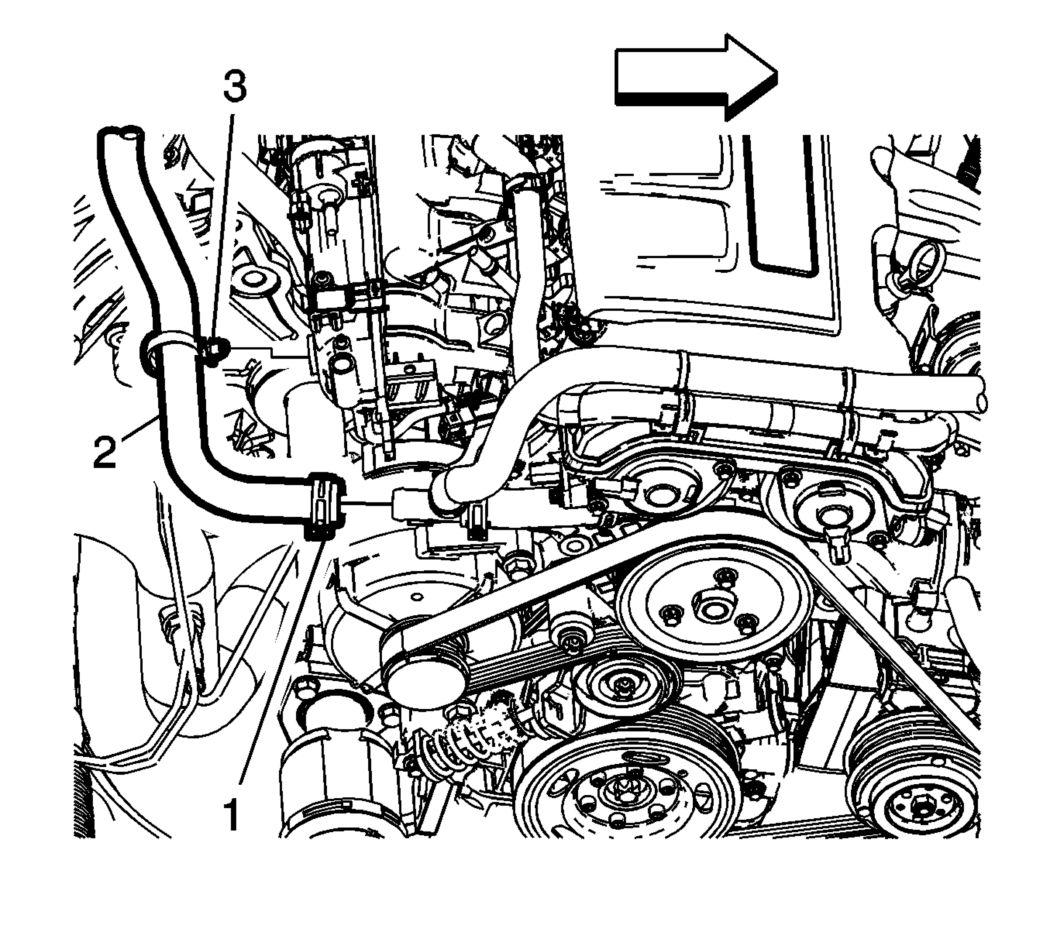

    3. Fig 2: Rear Hose, Hose Retainer And Rear Hose Clamp
    GM3409235Courtesy of GENERAL MOTORS COMPANY
  3. Install the heater outlet rear hose retainer (3) to the engine.
  4. Install the heater outlet rear hose (2) to the heater outlet rear hose tee.
  5. Using BO-38185  Hose Clamp Pliers , reposition the heater outlet rear hose clamp (1), on the heater outlet rear hose (2).
  6. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
  7. Fill the cooling system. Refer to Cooling System Draining and Filling .
  8. Check the cooling system for leaks.
