Heater Outlet Hose Connector Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

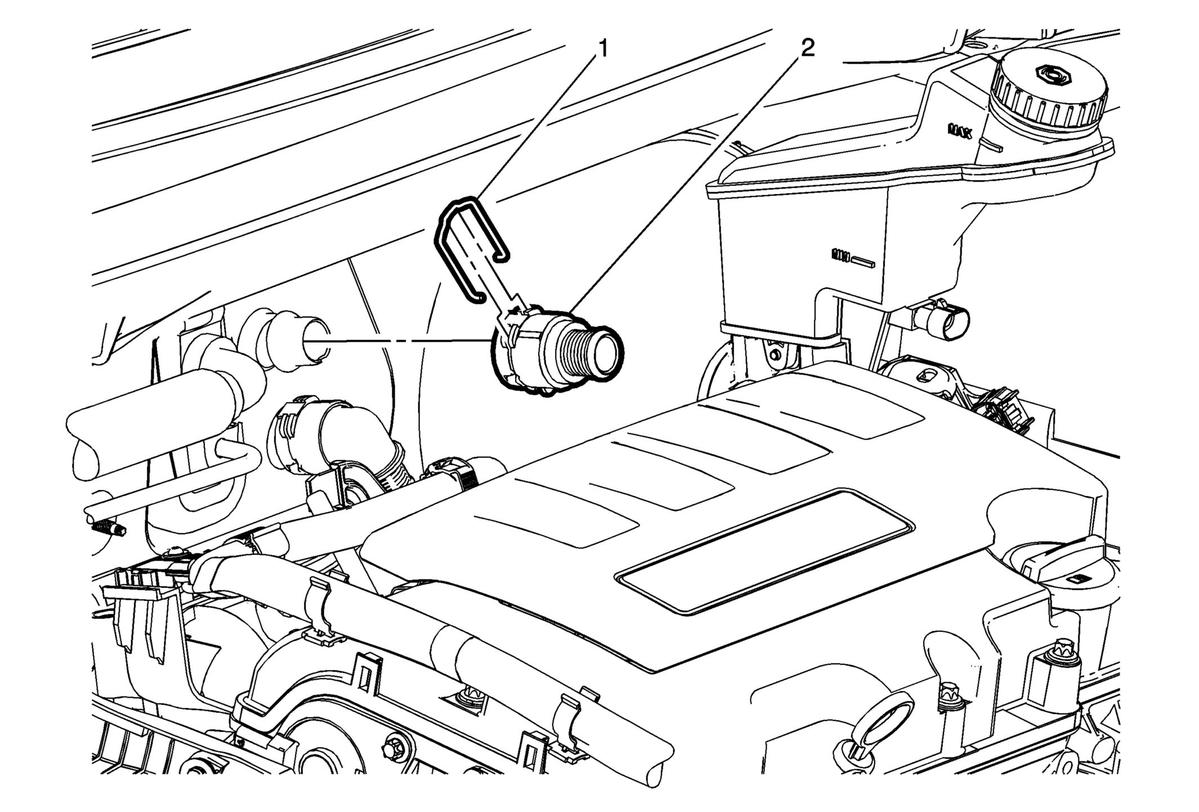

Fig 1: Heater Outlet Hose Connector
GM2678194Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the engine coolant. Refer to Cooling System Draining and Filling .
  2. Remove the heater outlet hose. Refer to Heater Outlet Hose Replacement (2H0) Heater Outlet Hose Replacement (LUV) Heater Outlet Hose Replacement (LUV Rear)
1 Heater Outlet Hose Connector Retaining Clip
2 Heater Outlet Hose Connector
