Heater Inlet Hose Connector Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

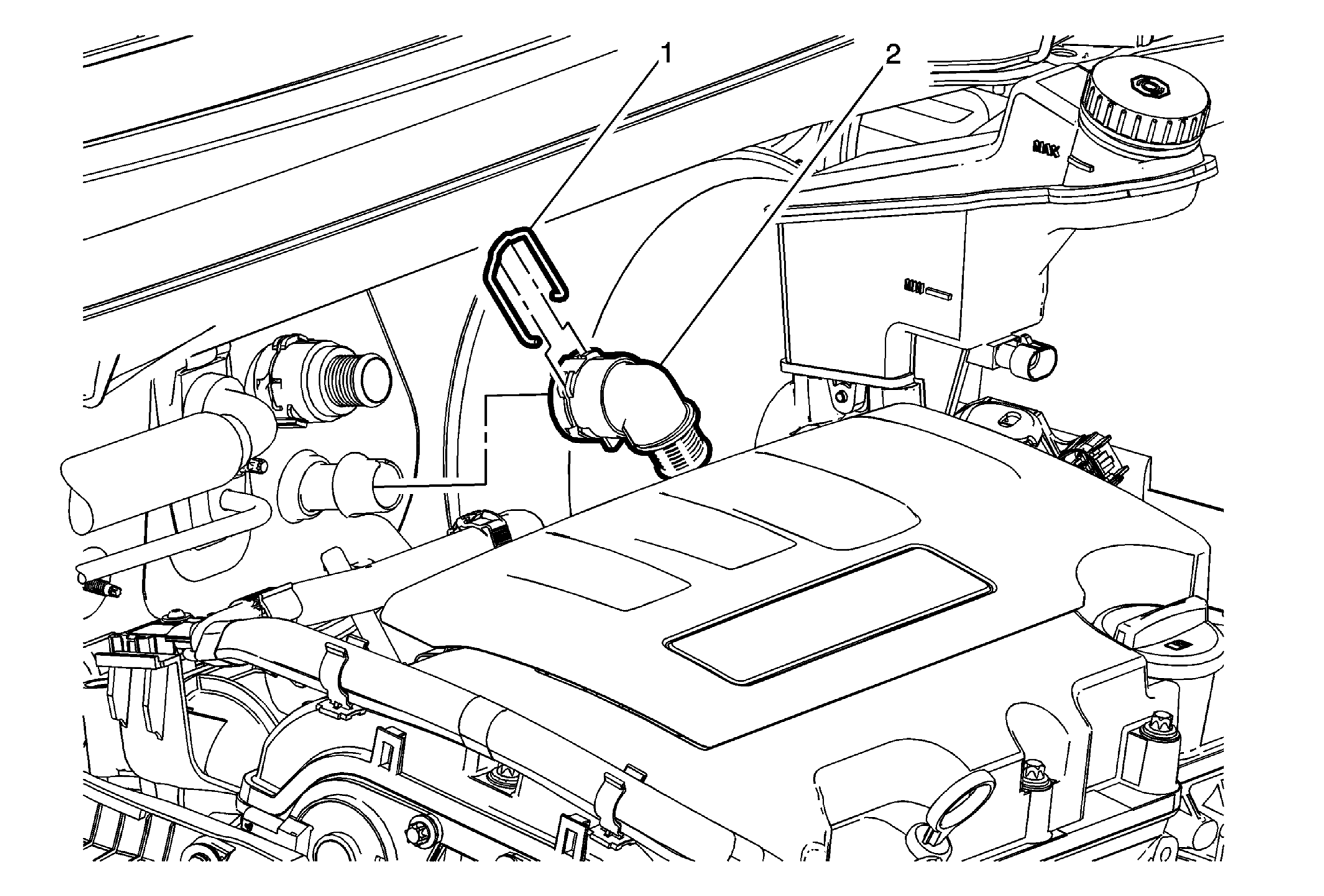

Fig 1: Heater Inlet Hose Connector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the engine coolant. Refer to Cooling System Draining and Filling . Remove the heater inlet hose. Refer to Heater Inlet Hose Replacement (2H0) Heater Inlet Hose Replacement (LUV)
1	Heater Inlet Hose Connector Retaining Clip
2	Heater Inlet Hose Connector

Callout

Component Name

Preliminary Procedures

Drain the engine coolant. Refer to Cooling System Draining and Filling .
Remove the heater inlet hose. Refer to Heater Inlet Hose Replacement (2H0) Heater Inlet Hose Replacement (LUV)

Heater Inlet Hose Connector Retaining Clip

Heater Inlet Hose Connector
