Heater Core Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

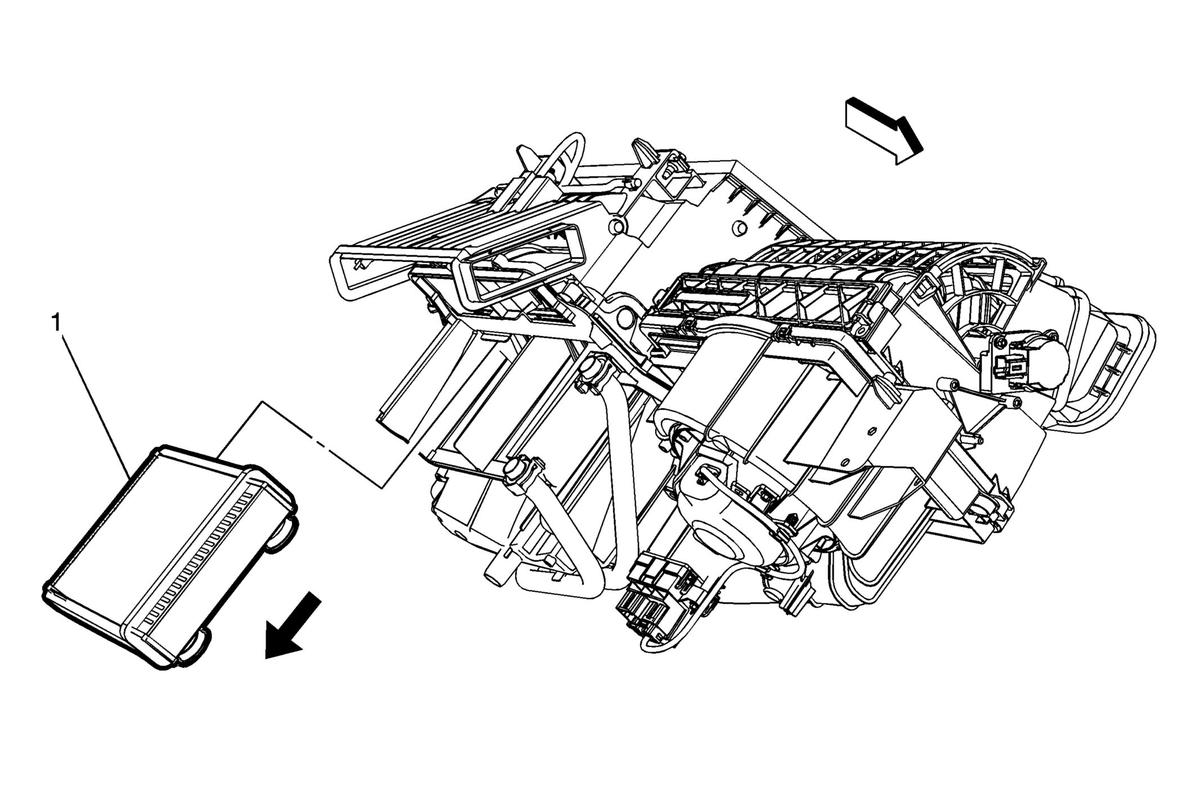

Fig 1: Heater Core

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the heater case. Refer to Heater Case Replacement . Disconnect the heater core outlet tube. Refer to Heater Core Outlet Tube Replacement . Disconnect the heater core inlet tube. Refer to Heater Core Inlet Tube Replacement .
1	Heater Core Assembly

Callout

Component Name

Preliminary Procedure

Remove the heater case. Refer to Heater Case Replacement .
Disconnect the heater core outlet tube. Refer to Heater Core Outlet Tube Replacement .
Disconnect the heater core inlet tube. Refer to Heater Core Inlet Tube Replacement .

Heater Core Assembly
