Heater Core Outlet Tube Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

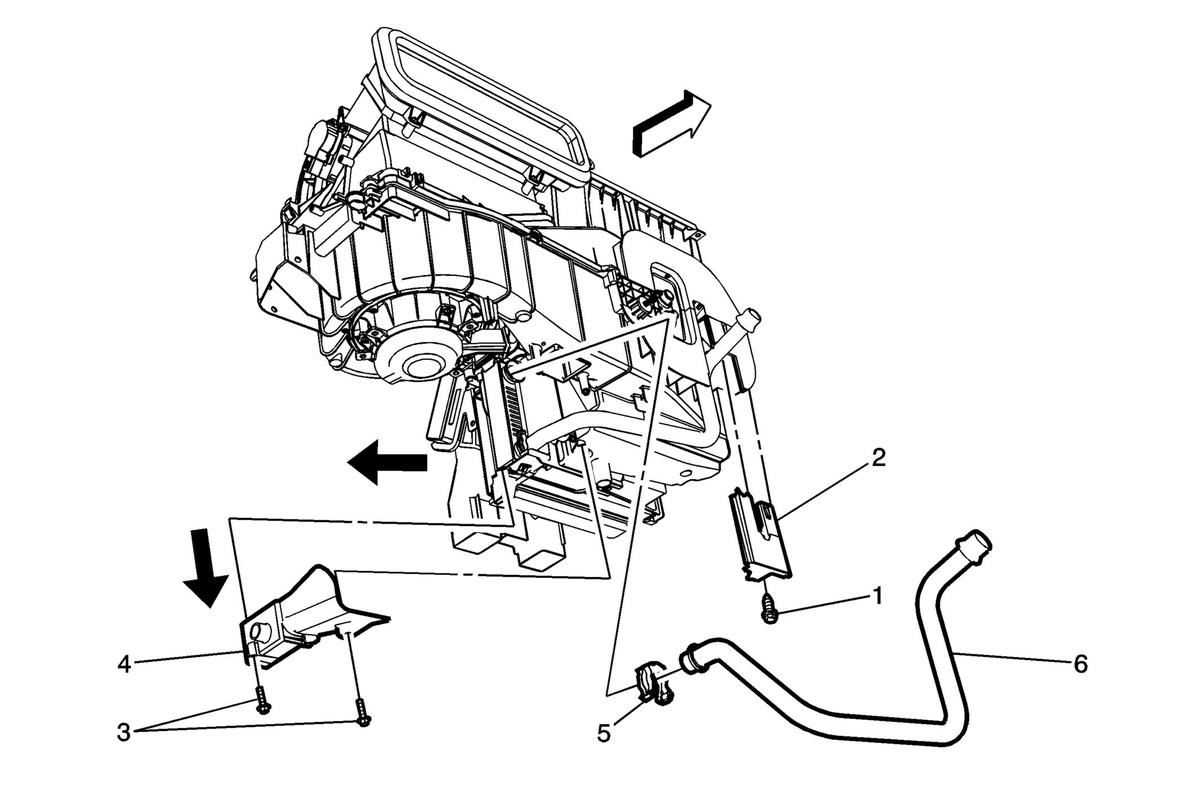

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . |
|
| 1 | Heater and Air Conditioning Evaporator Case Clip Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Heater and Air Conditioning Evaporator Case Clip |
| 3 | Heater Core Tube Cover Fastener (QTY: 2) |
| 4 | Heater Core Tube Cover |
| 5 | Heater Core Outlet Tube Clamp |
| 6 | Heater Core Outlet Tube |
