Instrument Panel Lower Trim Panel Insulator Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

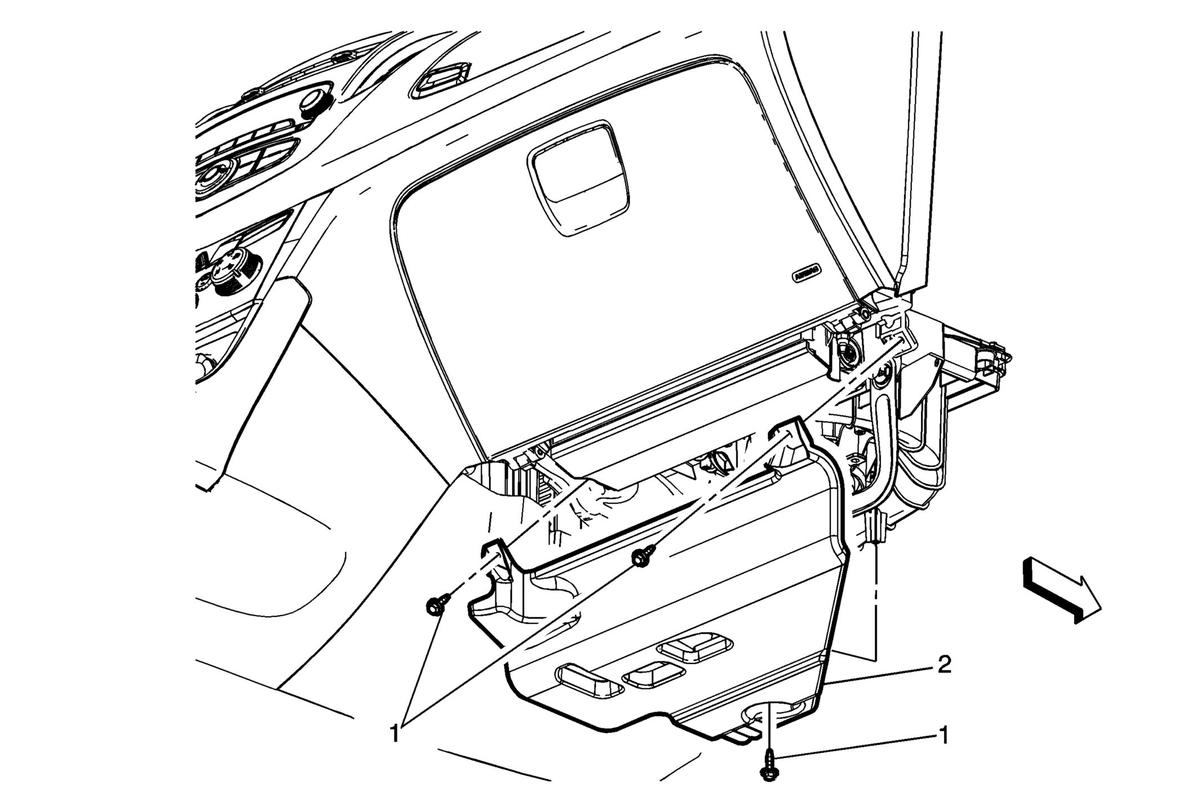

Fig 1: Instrument Panel Lower Trim Panel
GM2858927Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Lower Trim Panel Insulator Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
1.8 N.m (16 lb in)
2 Instrument Panel Lower Trim Panel Insulator
