Removal Procedure - Production Blower Motor
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the right side front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Right Side .
- Remove the 3 blower motor cover screws, and remove the blower motor cover.
- Disconnect the blower motor wire harness connector.

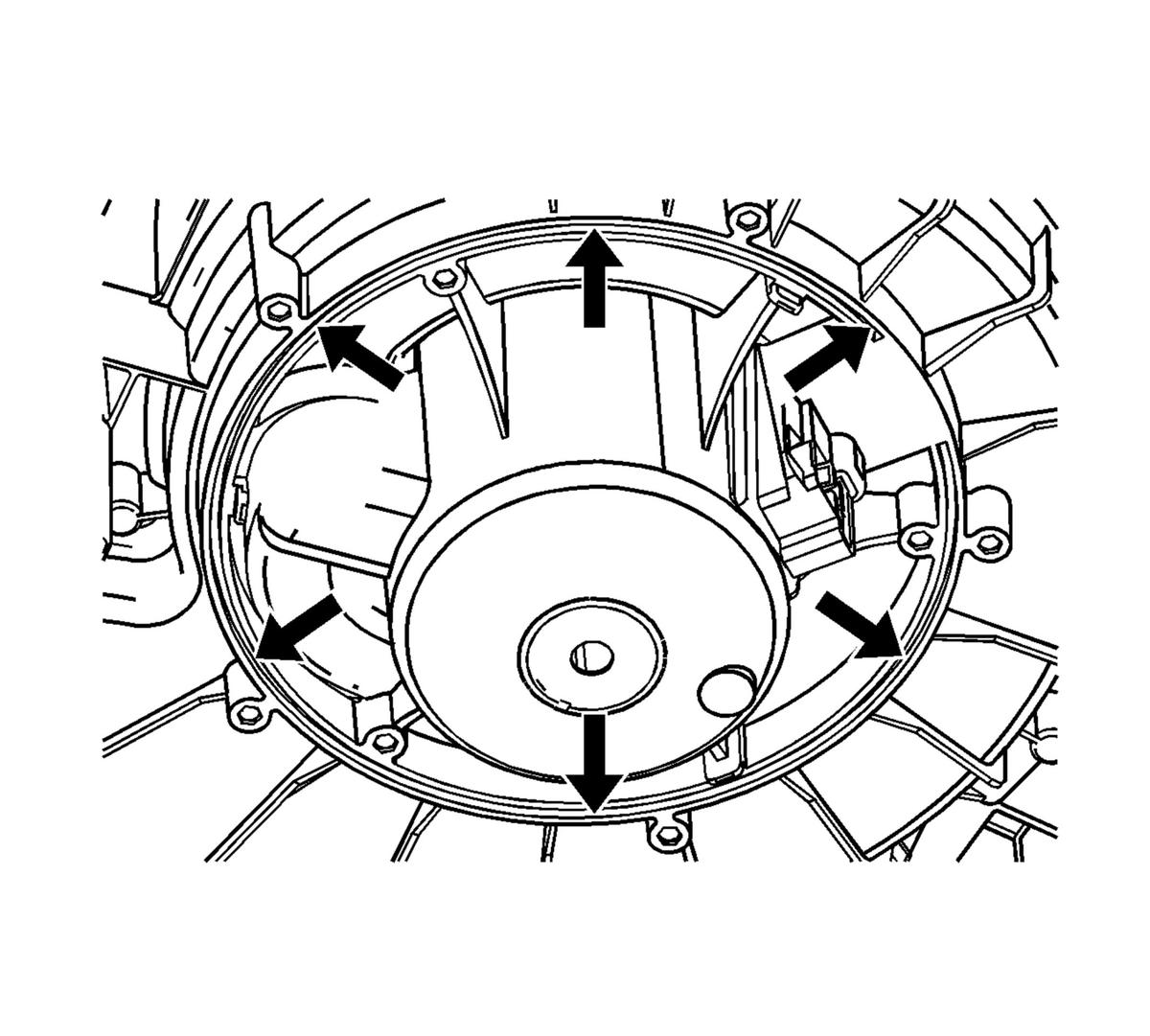

- Cut out the blower motor using a utility knife, following the narrow groove around the blower motor assembly in the lower case.

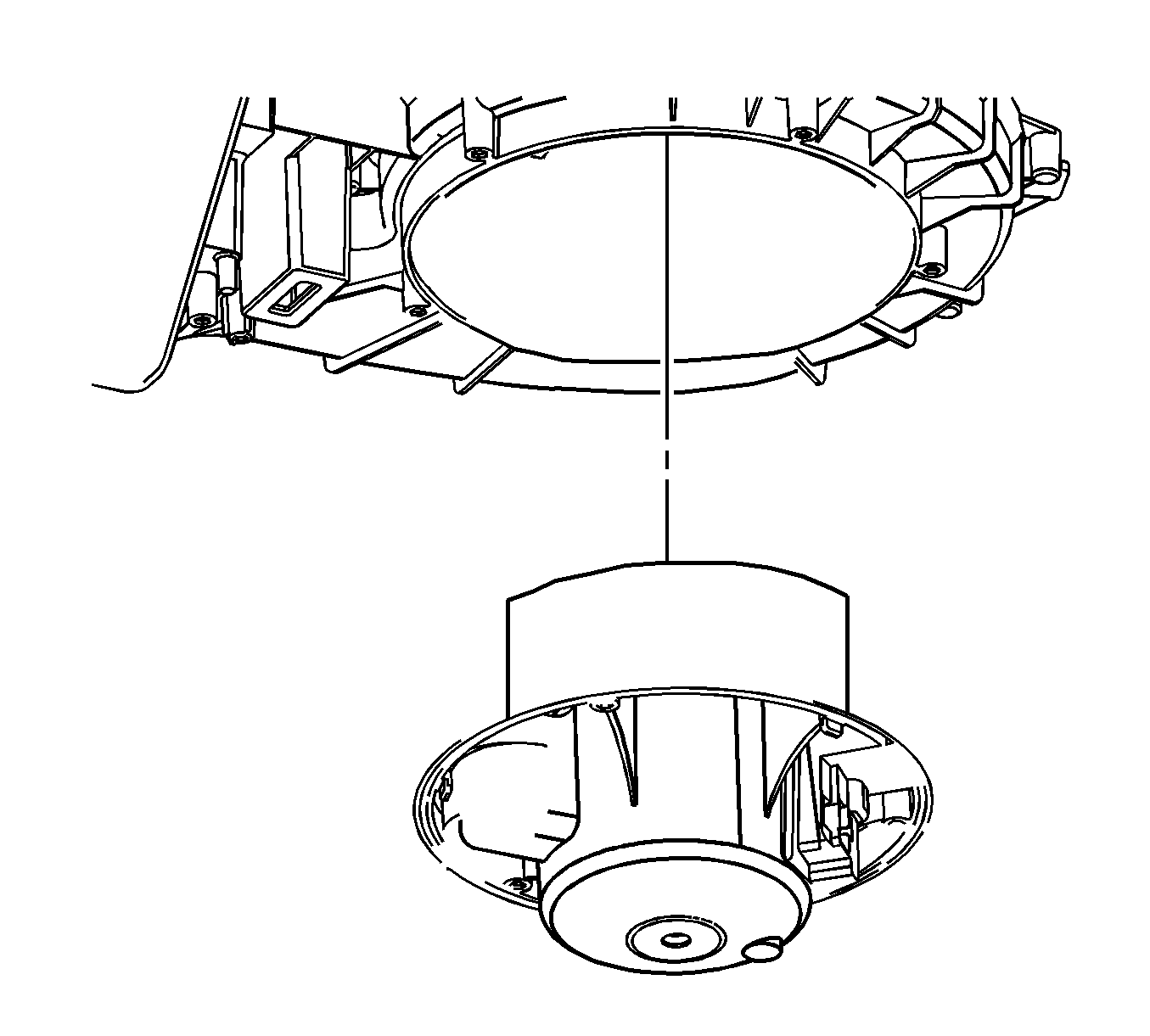

- Remove the blower motor assembly.
NOTE:
Blower motor is molded into heater and air conditioning evaporator and blower module lower case during manufacturing process, therefore heater and air conditioning evaporator and blower module lower case must be cut to remove blower motor assembly. Cut through the case as straight as possible, because the blower motor cup must be reused. In order to prevent damage to the component, do not cut any deeper than necessary to remove the blower motor cup.
