Air Conditioning Refrigerant Desiccant Replacement (LUV)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

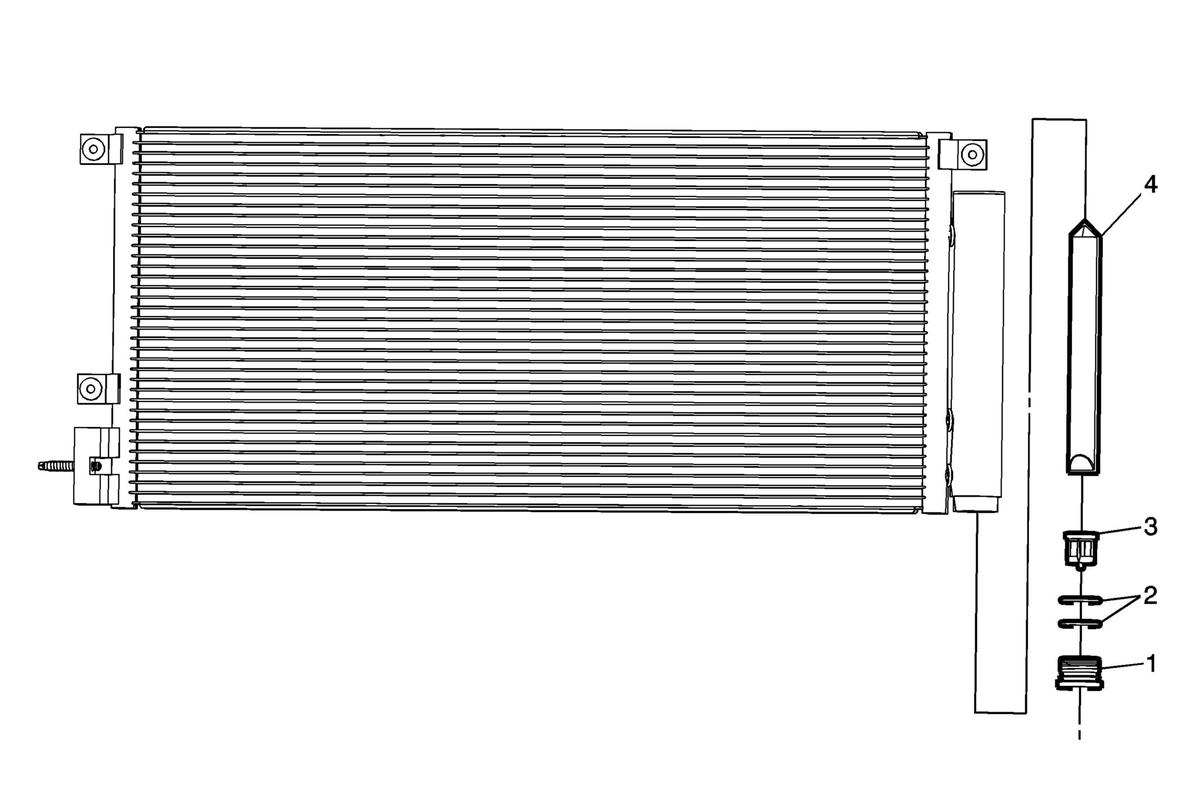

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air conditioning condenser. Refer to Air Conditioning Condenser Replacement . |
|
| 1 | Receiver and Dehydrator Cover
CAUTION:
Refer to Fastener Caution . Tighten 12 N.m (106 lb in) |
| 2 | Receiver and Dehydrator O-ring (Qty: 2) |
| 3 | Air Conditioning Refrigerant Filter |
| 4 | Air Conditioning Refrigerant Desiccant |
