Air Conditioning Evaporator Module Drain Hose Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

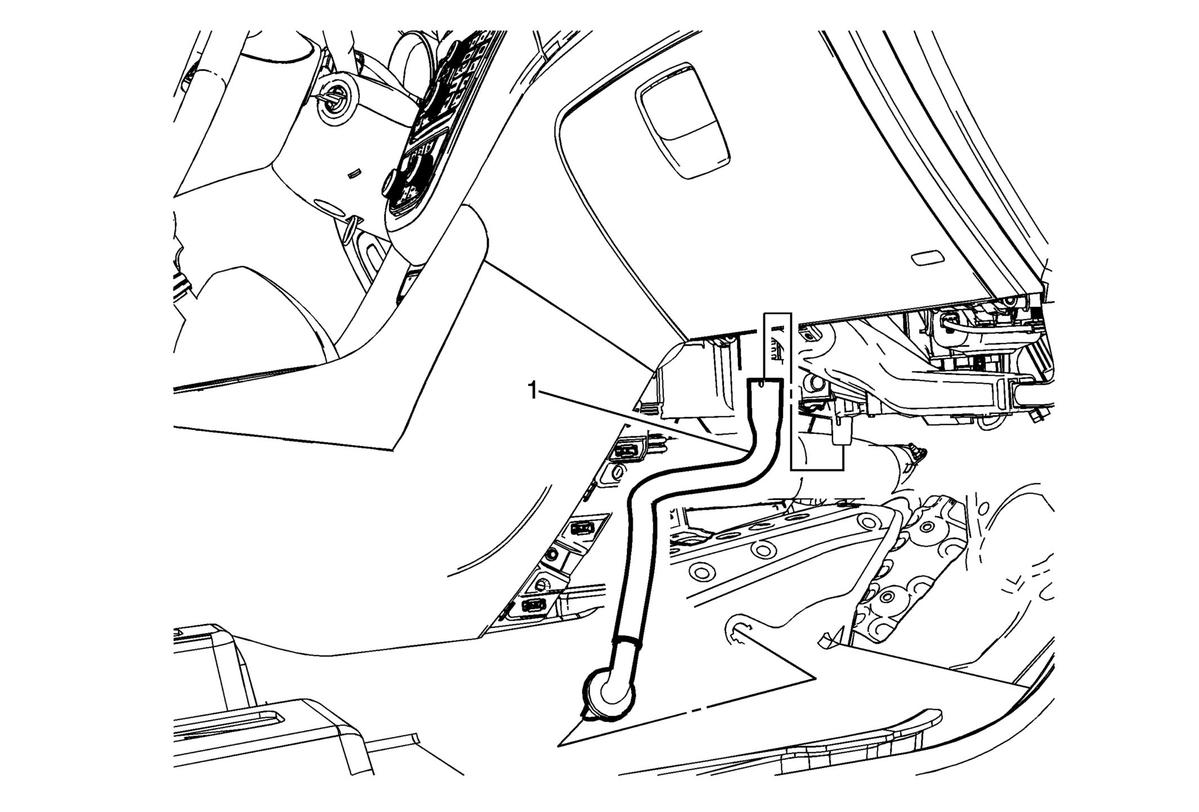

Fig 1: Air Conditioning Evaporator Module Drain Hose

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Front Floor Console Extension Replacement - Right Side Pull the right front carpet back away from the right center of the vehicle. CAUTION: Refer to HVAC Module Drain Tube Caution .
1	Air Conditioning Evaporator and Blower Module Drain Hose

Call out

Component Name

Preliminary Procedures

Front Floor Console Extension Replacement - Right Side
Pull the right front carpet back away from the right center of the vehicle.

CAUTION:

Refer to HVAC Module Drain Tube Caution .

Air Conditioning Evaporator and Blower Module Drain Hose
