Air Conditioning Clutch Assembly Replacement (LUV)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

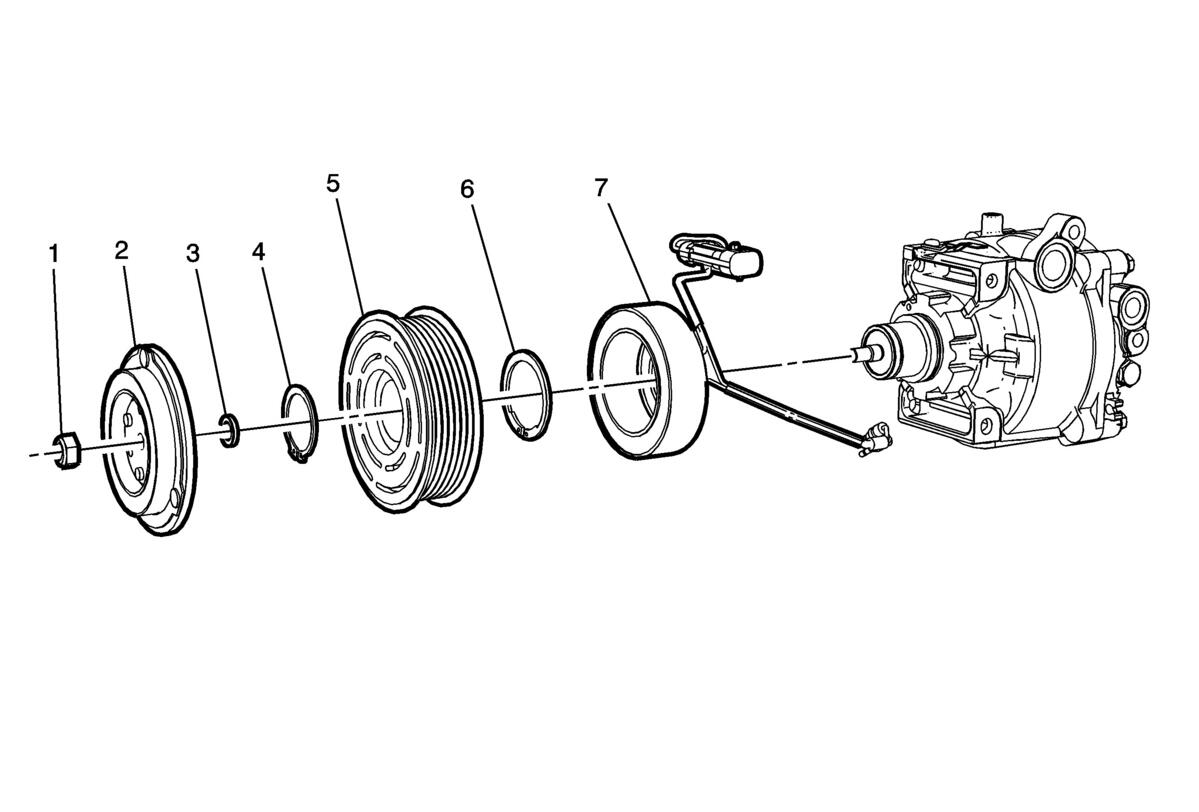

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (LUV) . |
|
| 1 | Air Conditioning Compressor Clutch Nut
CAUTION:
Refer to Fastener Caution . Procedure Use the GE-48965 holder to hold the compressor clutch plate from turning when removing the nut. Special Tools GE-48965 Clutch Plate Holder For equivalent regional tools, refer to Special Tools . |
| 2 | Air Conditioning Compressor Clutch |
| 3 | Air Conditioning Compressor Clutch Shim (Qty: 5) |
| 4 | Retaining Ring |
| 5 | Air Conditioning Compressor Pulley |
| 6 | Retaining Ring |
| 7 | Air Conditioning Compressor Coil |
