Exhaust Crossover Pipe Heat Shield Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

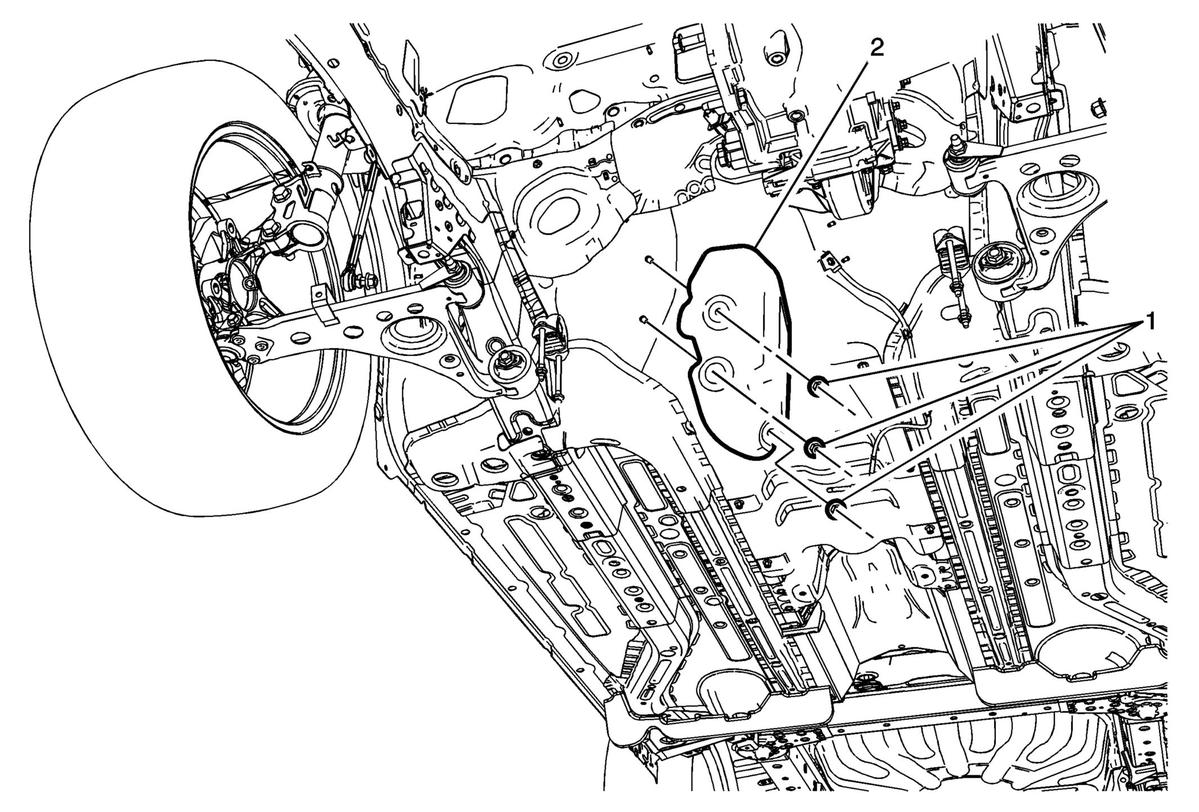

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Exhaust Service Warning .
WARNING:
Preliminary Procedures Remove the exhaust muffler. Refer to Exhaust Muffler Replacement (2H0) Exhaust Muffler Replacement (LUV) .Refer to Eye Protection Warning . |
|
| 1 | Exhaust Crossover Pipe Heat Shield Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (26 lb in) |
| 2 | Exhaust Crossover Pipe Heat Shield |
