Engine Oil Cooler Inlet Pipe Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

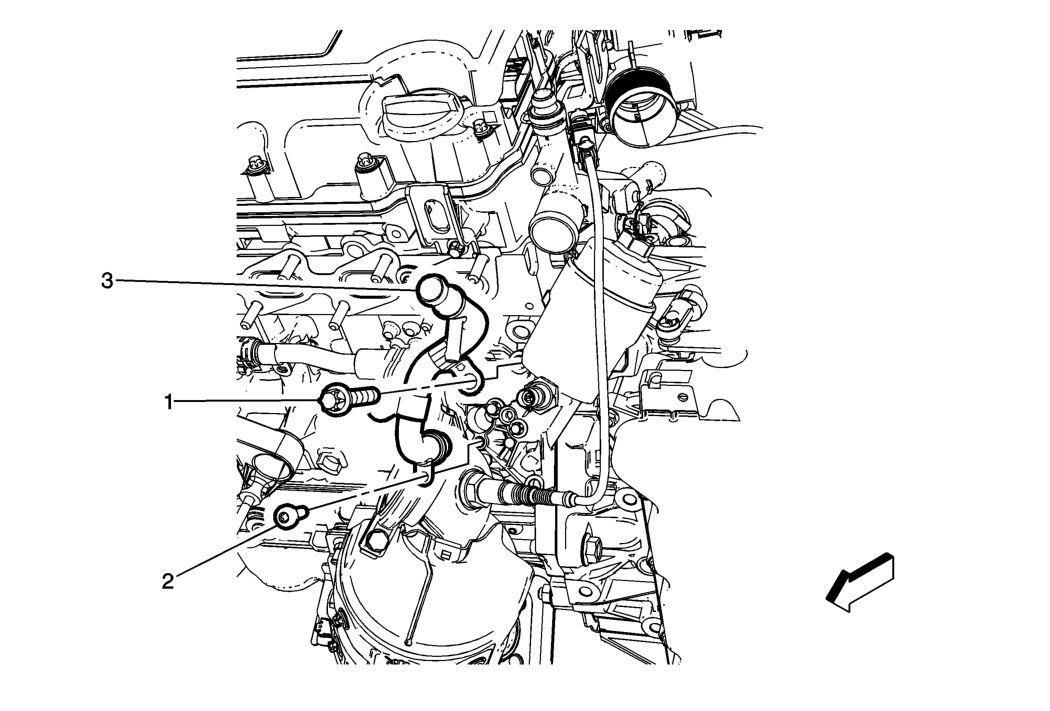

Fig 1: Engine Oil Cooler Inlet Pipe (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling . Remove the engine oil cooler coolant inlet hose. Refer to Engine Oil Cooler Coolant Inlet Hose Replacement (LUJ) . Remove the turbo charger. Refer to Turbocharger Replacement .
1	Engine Oil Cooler Fastener CAUTION: Refer to Fastener Caution . 10 N.m (89 lb in)
2	Engine Oil Cooler Housing Fastener CAUTION: Refer to Fastener Caution . 25 N.m (18 lb ft)
3	Engine Oil Cooler Inlet Pipe
