Engine Oil Cooler Coolant Inlet Hose Replacement (LUJ)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

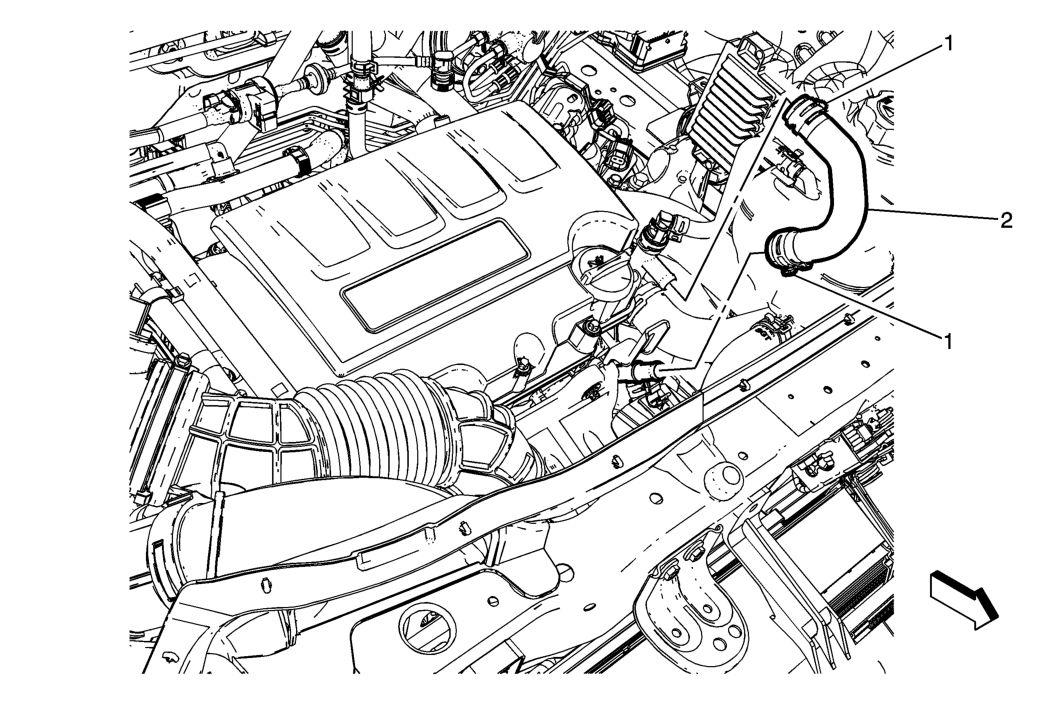

| Callout | Component Name |
|---|---|
| 1 | Engine Oil Cooler Coolant Inlet Hose Clamp (Qty: 2) Procedure Reposition the engine oil cooler coolant inlet hose using the BO-38185 Hose Clamp Pliers
NOTE:
Replace hose clamps if necessary. Special Tools BO-38185 Hose Clamp Pliers. For equivalent regional tools, refer to Special Tools . |
| 2 | Engine Oil Cooler Coolant Inlet Hose |
