Engine Coolant Fan Shroud Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

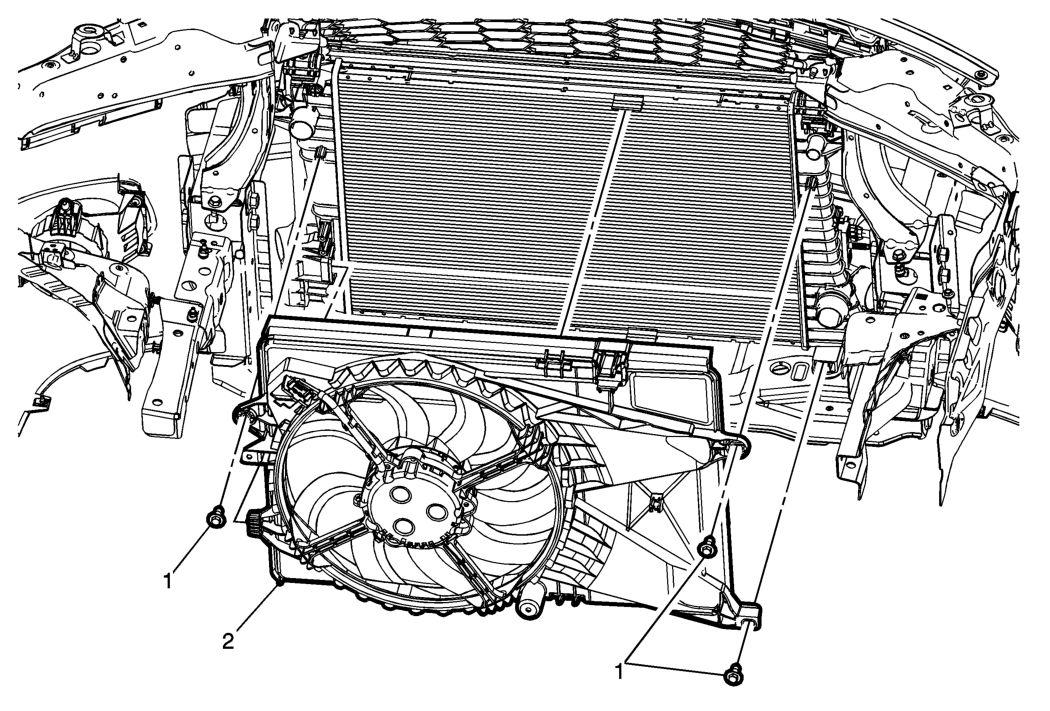

Fig 1: Engine Coolant Fan Shroud (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radiator surge tank. Refer to Radiator Surge Tank Replacement (LUV, 2H0) . Unclip transmission cooler lines from shroud if equipped. Unclip radiator surge tank outlet hose from fan shroud. Disconnect the electrical connectors from the fan shroud. Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LUV) . Remove the front compartment front center insulator. Refer to Front Compartment Front Center Insulator Replacement . Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (LUV) .
1	Engine Coolant Fan Shroud Bolt (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Engine Coolant Fan Shroud

Callout

Component Name

Preliminary Procedure

Remove the radiator surge tank. Refer to Radiator Surge Tank Replacement (LUV, 2H0) .
Unclip transmission cooler lines from shroud if equipped.
Unclip radiator surge tank outlet hose from fan shroud.
Disconnect the electrical connectors from the fan shroud.
Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LUV) .
Remove the front compartment front center insulator. Refer to Front Compartment Front Center Insulator Replacement .
Remove the radiator outlet hose. Refer to Radiator Outlet Hose Replacement (LUV) .

Engine Coolant Fan Shroud Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Engine Coolant Fan Shroud
