Radiator Inlet Hose Replacement (LUV)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

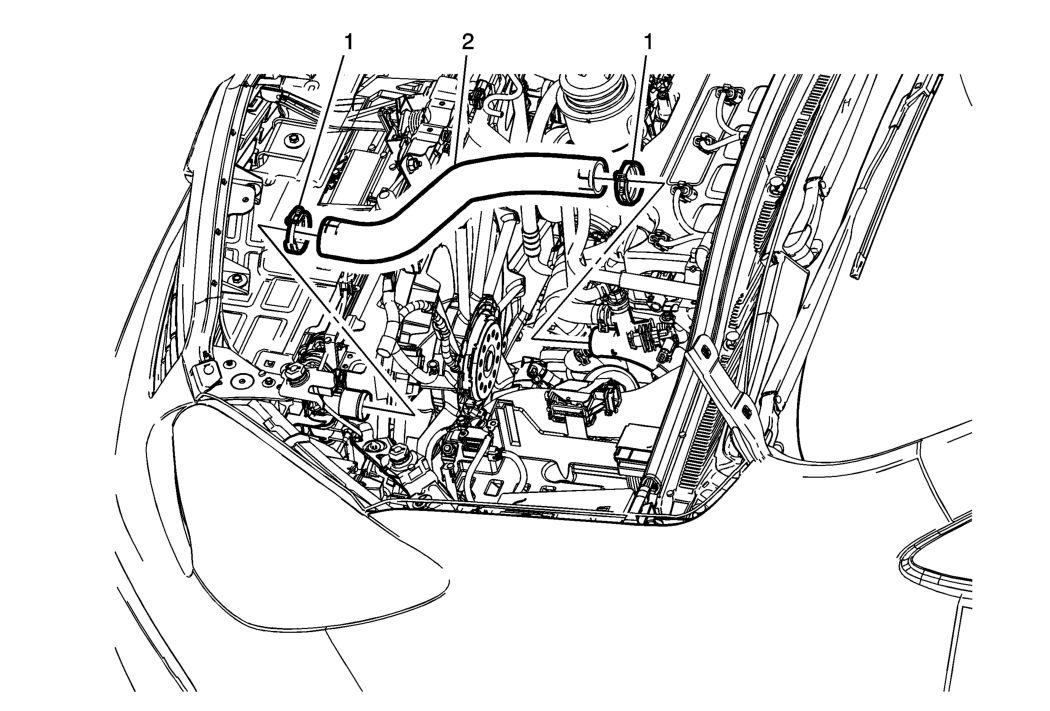

Fig 1: Radiator Inlet Hose (LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling . Remove the radiator surge tank, and reposition the radiator surge tank out of the way. Refer to Radiator Surge Tank Replacement (LUV, 2H0, LUJ) . Disconnect the electrical connectors.
1	Radiator Inlet Hose Clamp (Qty: 2) Special Tools BO-38185 Hose Clamp Pliers. For equivalent regional tools, refer to Special Tools .
2	Radiator Inlet Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling .
Remove the radiator surge tank, and reposition the radiator surge tank out of the way. Refer to Radiator Surge Tank Replacement (LUV, 2H0, LUJ) .
Disconnect the electrical connectors.

Radiator Inlet Hose Clamp (Qty: 2)
Special Tools
BO-38185 Hose Clamp Pliers.
For equivalent regional tools, refer to Special Tools .

Radiator Inlet Hose
