Engine Coolant Fan Replacement (LUV)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

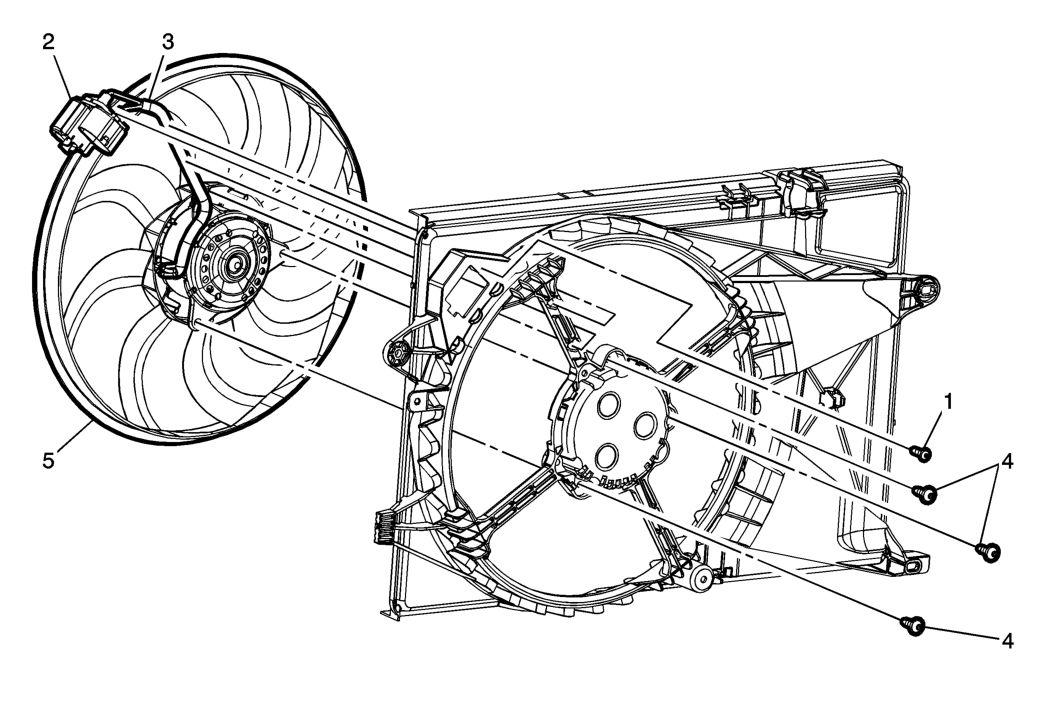

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the engine coolant fan shroud from the vehicle. Refer to Engine Coolant Fan Shroud Replacement (LUV) . |
|
| 1 | Engine Coolant Fan Resistor Bolt |
| 2 | Engine Coolant Fan Resistor |
| 3 | Resistor Wiring Harness. Procedure Unclip resistor harness from the shroud. |
| 4 | Engine Coolant Fan Bolt (Qty: 3) |
| 5 | Engine Coolant Fan Procedure Remove the engine coolant fan from the shroud. |
