Engine Flywheel Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

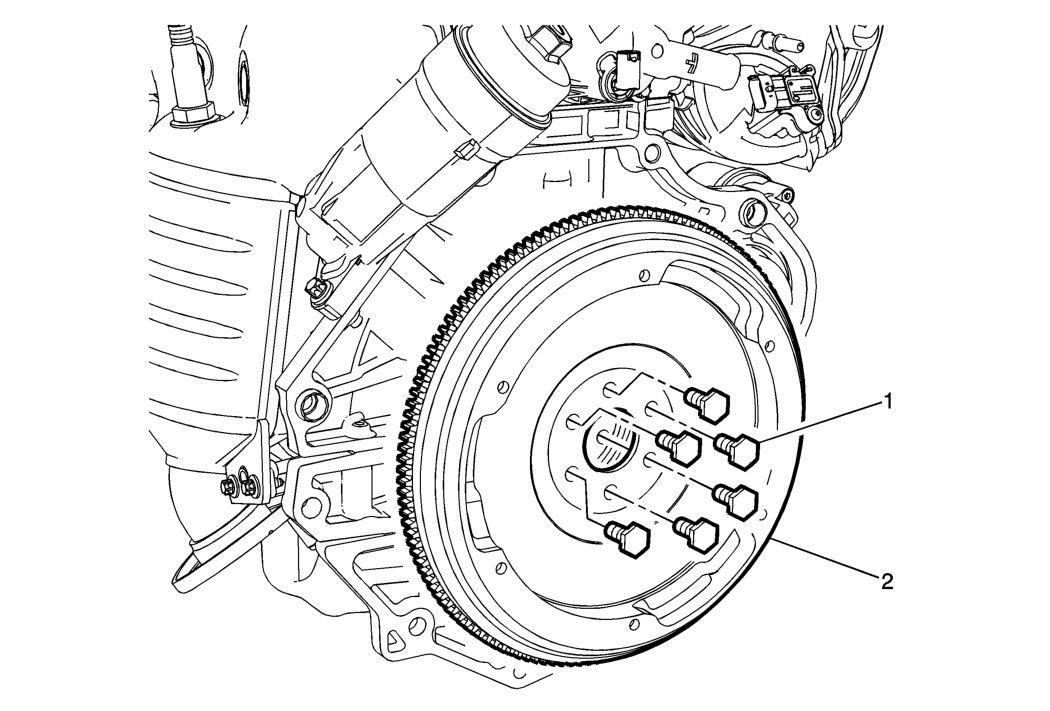

Fig 1: Engine Flywheel And Fasteners
GM2509775Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Flywheel Fastener (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Procedure
Ensure to use a NEW fastener whenever the flywheel is removed.
Tighten
  1. First pass 35 N.m (26 lb ft)
  2. Second pass 30 degrees.
  3. Final pass 15 degrees

Special Tools
J-45059-A  Angular Torque Wrench
For equivalent regional tools, refer to Special Tools .
2 Flywheel
Procedure
Inspect the engine flywheel for the following:
  1. Stress cracks around the engine flywheel.
  2. Cracks at welded areas that retain the ring gear onto the engine flywheel.
  3. Damaged or missing ring gear teeth.
  4. Do not attempt to repair the welded areas that retain the ring gear to the engine flywheel plate. Install a new engine flywheel.
