Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

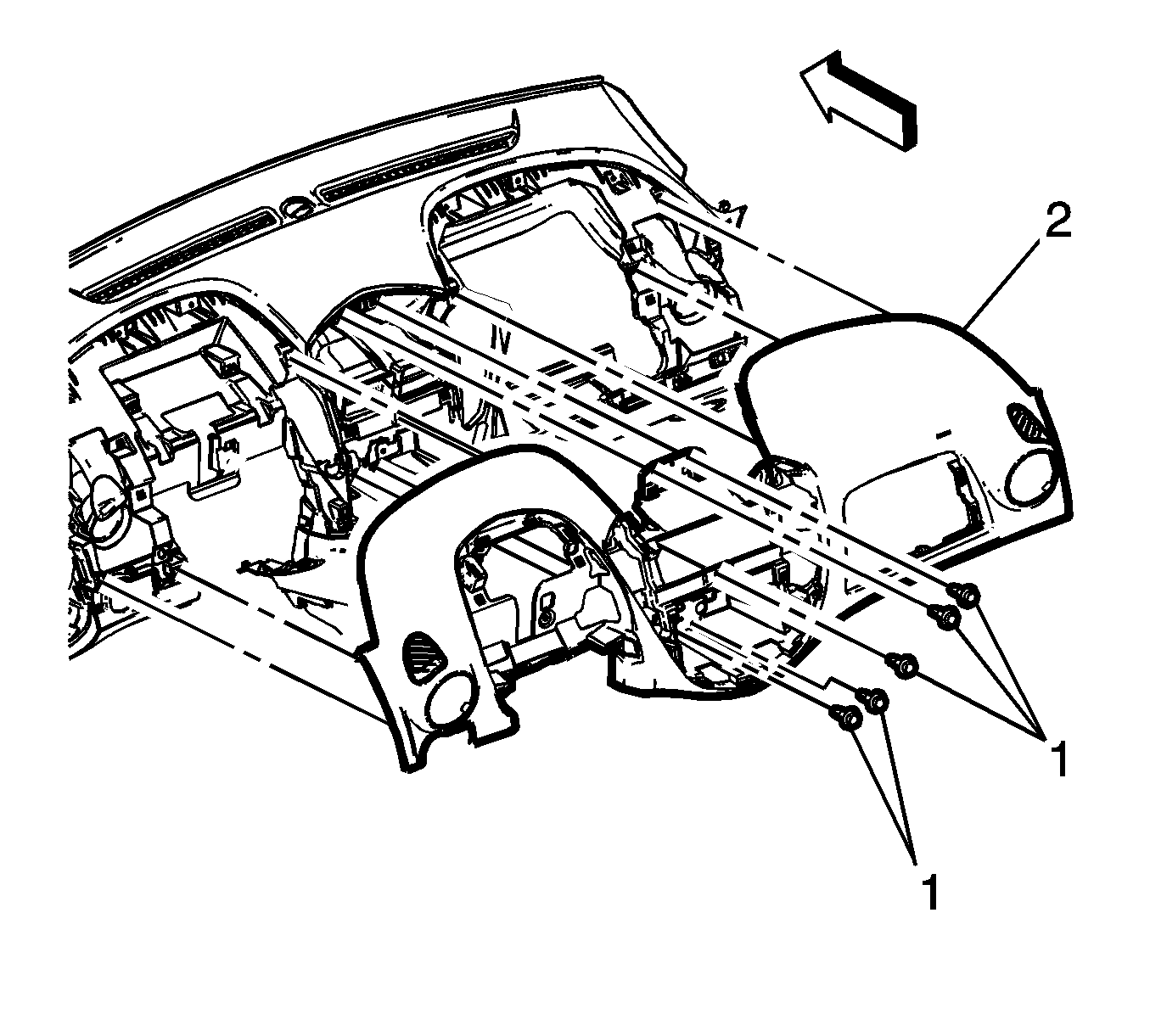

    Fig 1: Instrument Panel Assembly Upper Trim Panel
    GM2858656Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the instrument panel bolts (1).

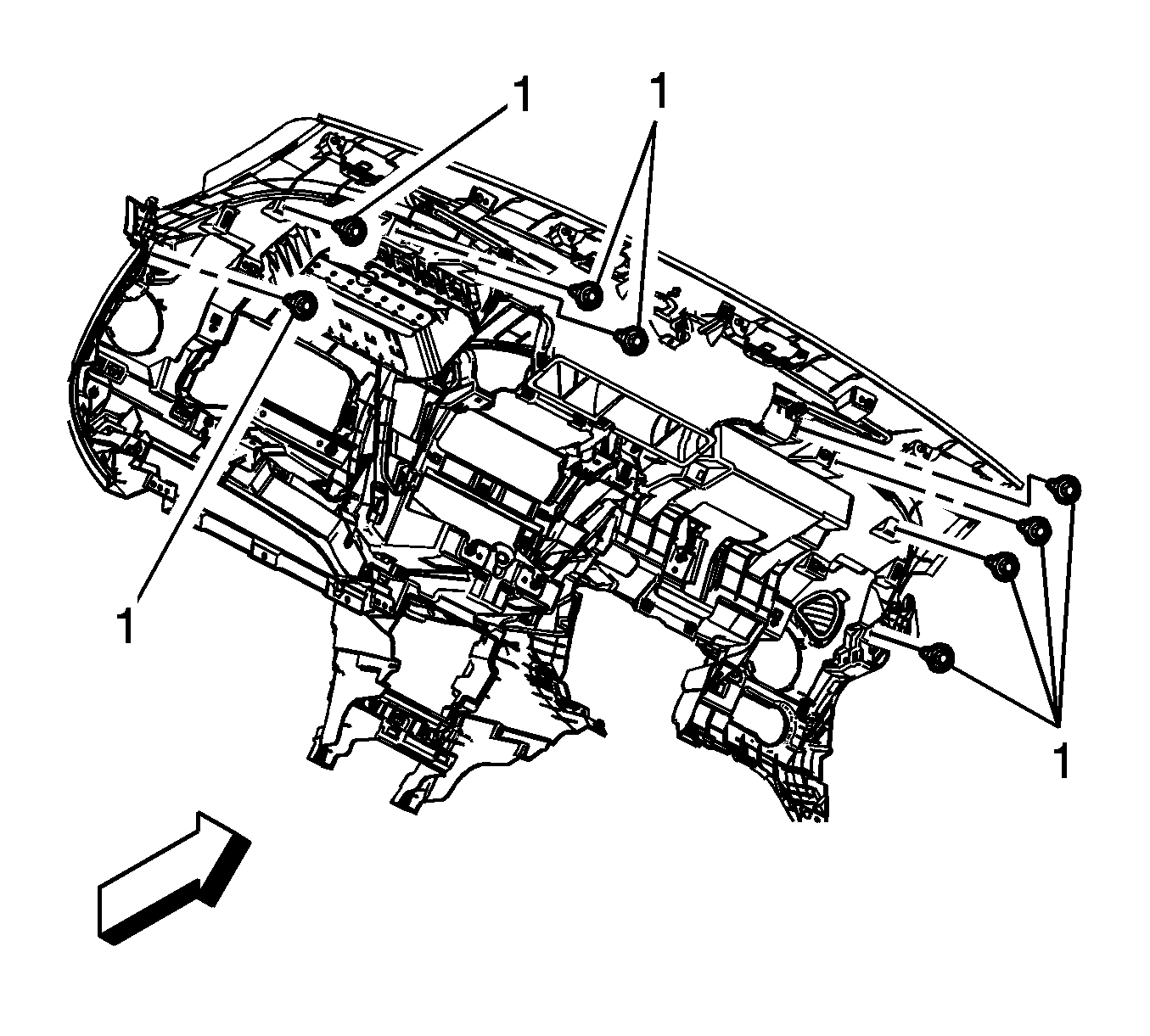

    2. Fig 2: Instrument Panel Bolts
    GM2858649Courtesy of GENERAL MOTORS COMPANY
  2. Install the instrument panel bolts (1).
  3. Install the windshield defroster outlet duct. Refer to Windshield Defroster Outlet Duct Replacement .
  4. Install the instrument panel. Refer to Instrument Panel Assembly Replacement (Trax) .
