Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement (Encore) .
  2. Remove the windshield defroster outlet duct. Refer to Windshield Defroster Outlet Duct Replacement .
  3. Remove the airbag instrument panel module. Refer to Airbag Instrument Panel Module Replacement .

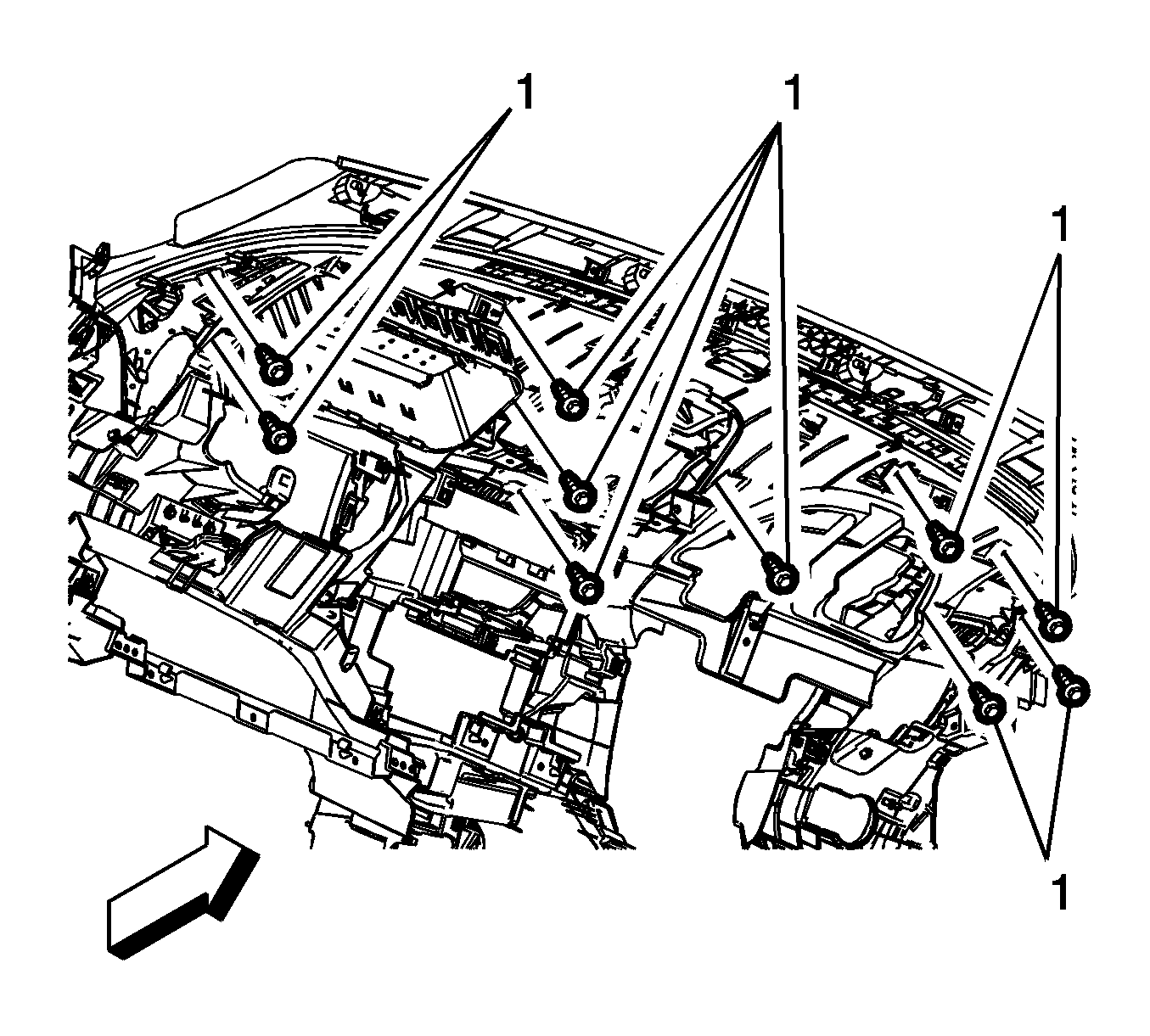

    4. Fig 1: Instrument Panel Bolts
    GM2782843Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to HVAC Duct Heat Stake Caution .

  4. Remove the instrument panel bolts (1).

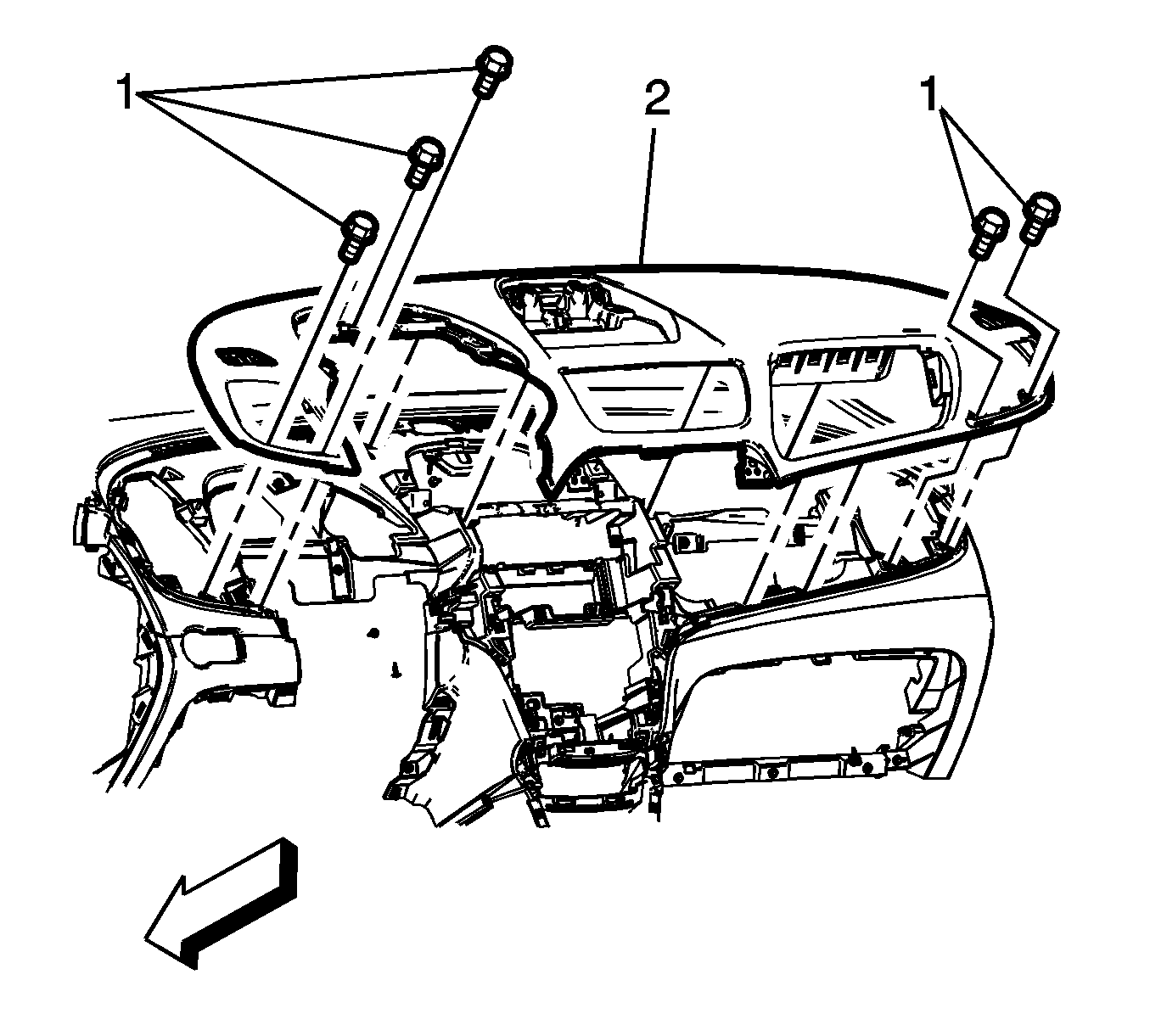

    5. Fig 2: Instrument Panel And Bolts
    GM2782846Courtesy of GENERAL MOTORS COMPANY
  5. Remove the instrument panel bolts (1).
  6. Use a flat bladed plastic trim tool to aid in the removal of the upper trim panel from the instrument panel assembly.
