Front Floor Console Cup Holder Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

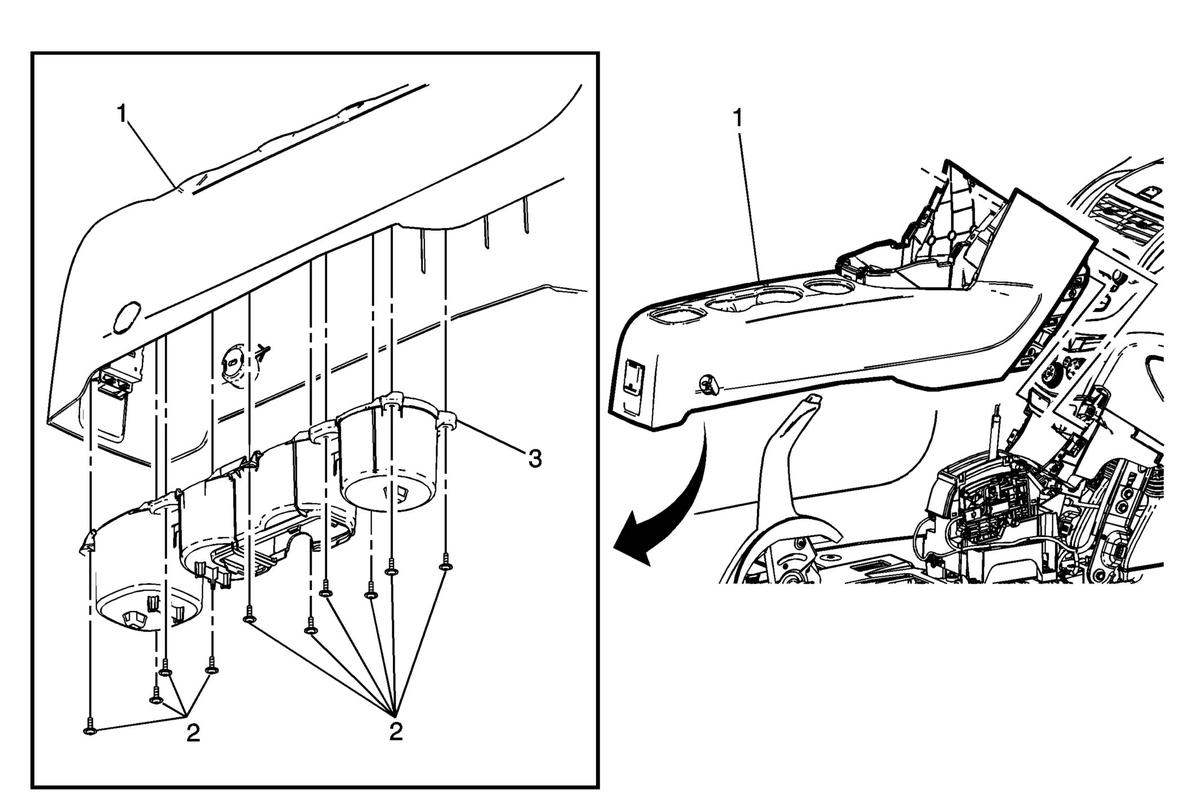

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Bracket Refer to Front Floor Console Bracket Replacement (Trax) . |
| 2 | Front Floor Console Cup Holder Fasteners (Qty: 10)
CAUTION:
Refer to Fastener Caution . |
| 3 | Front Floor Console Cup Holder Procedure Transfer components as necessary. |
