Front Floor Console Bracket Replacement (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

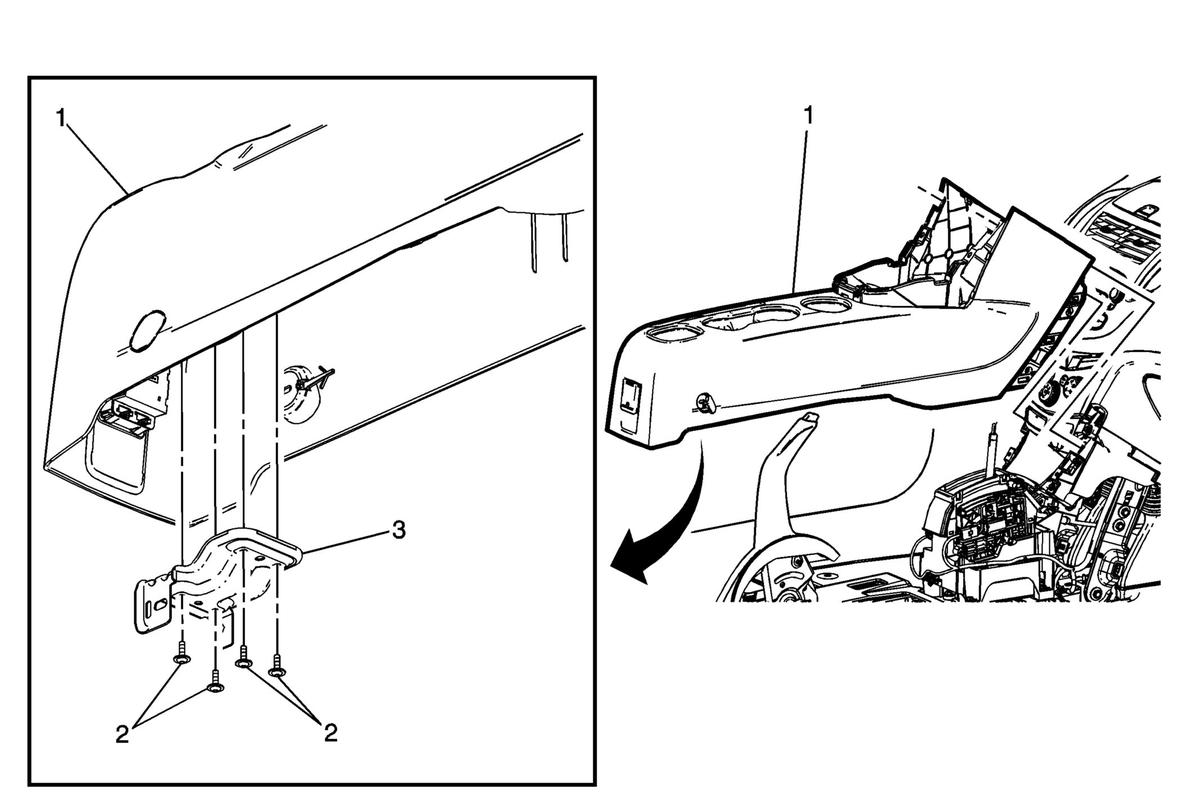

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Refer to Front Floor Console Replacement (Trax) . |
| 2 | Front Floor Console Bracket Fasteners (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 3 | Front Floor Console Bracket Procedure Disconnect the electrical connection. |
