Evaporative Emission Canister Vent Solenoid Valve Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

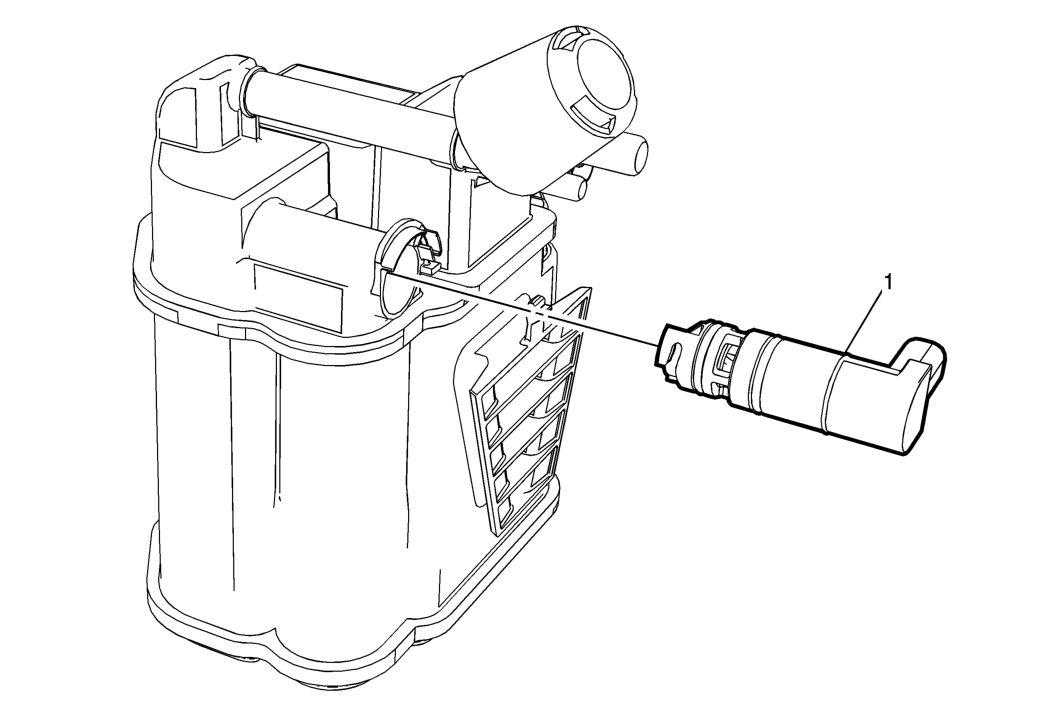

Fig 1: Evaporative Emission Canister Vent Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the evaporative emission canister. Refer to Evaporative Emission Canister Replacement (AWD) Evaporative Emission Canister Replacement (FWD) .
1	Evaporative Emission Canister Vent Solenoid Valve Procedure Disconnect the electrical connector. Rotate the solenoid counterclockwise to remove.

Callout

Component Name

Preliminary Procedure
Remove the evaporative emission canister. Refer to Evaporative Emission Canister Replacement (AWD) Evaporative Emission Canister Replacement (FWD) .

Evaporative Emission Canister Vent Solenoid Valve

Procedure

Disconnect the electrical connector.
Rotate the solenoid counterclockwise to remove.
