Evaporative Emission Canister Replacement (FWD)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

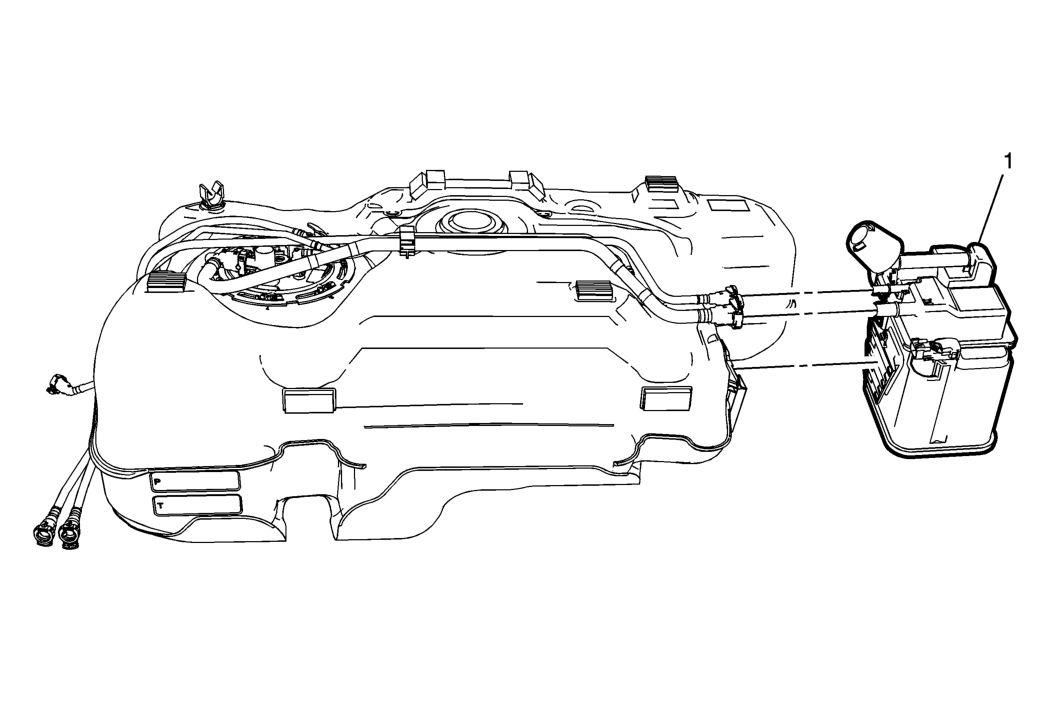

Fig 1: Evaporative Emission Canister (FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. Preliminary Procedures Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) . Remove the evaporative emission pipes. Refer to Plastic Collar Quick Connect Fitting Service .
1	Evaporative Emission Canister

Callout

Component Name

WARNING:

Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

Preliminary Procedures

Remove the fuel tank. Refer to Fuel Tank Replacement (AWD) .
Remove the evaporative emission pipes. Refer to Plastic Collar Quick Connect Fitting Service .

Evaporative Emission Canister
