Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

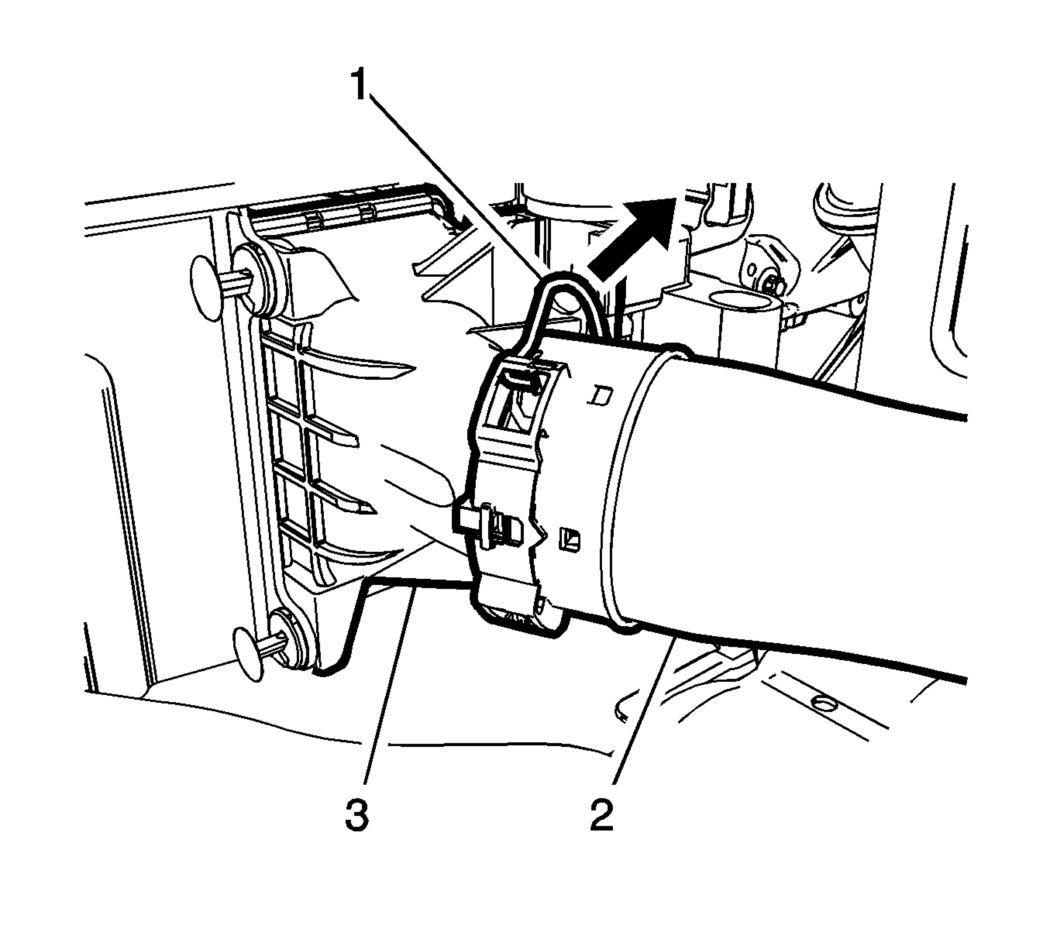

Fig 1: Charge Air Cooler, Outlet Air Hose & Retainer Spring

Courtesy of GENERAL MOTORS COMPANY

Install the charge air cooler outlet air hose (2) to charge air cooler (3).
Clip the in retainer spring (1).

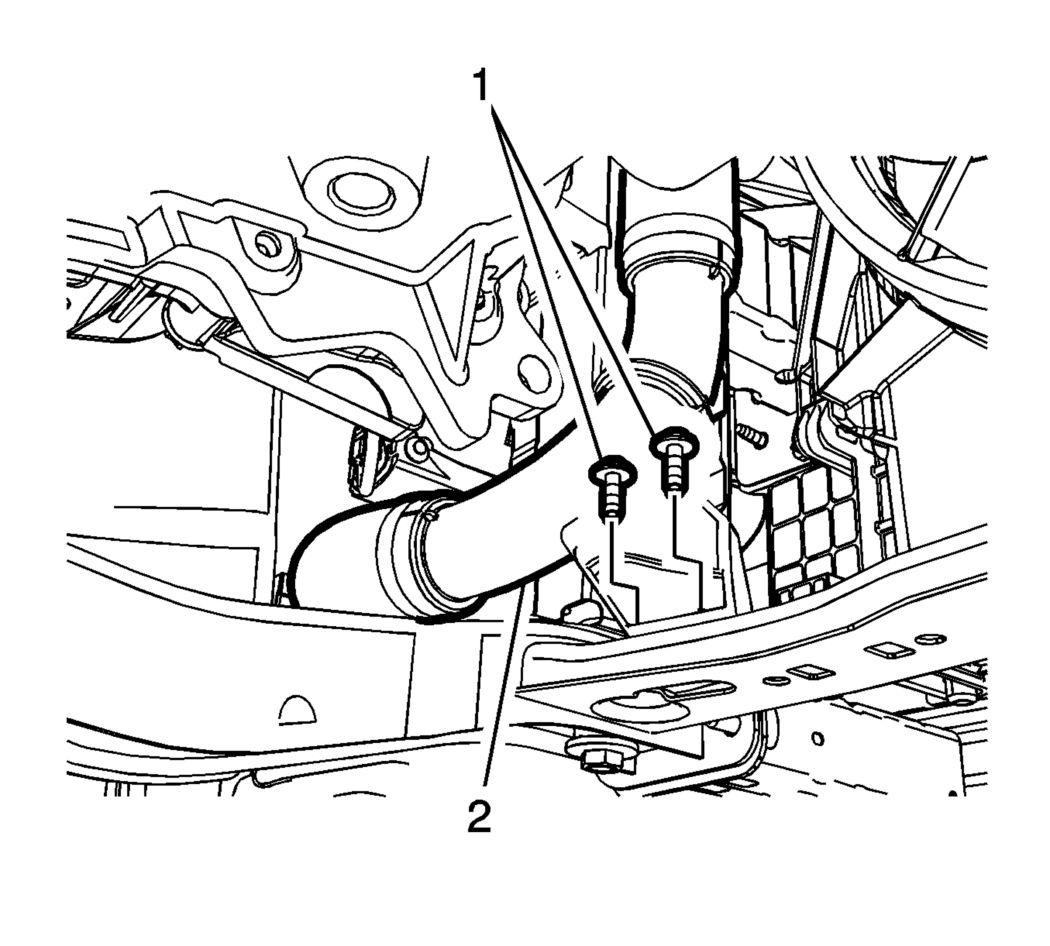

Fig 2: Charge Air Cooler Outlet Air Pipe To Frame Bracket

Courtesy of GENERAL MOTORS COMPANY

Install the fasteners (1) to the charge air cooler outlet air pipe to frame bracket (2).

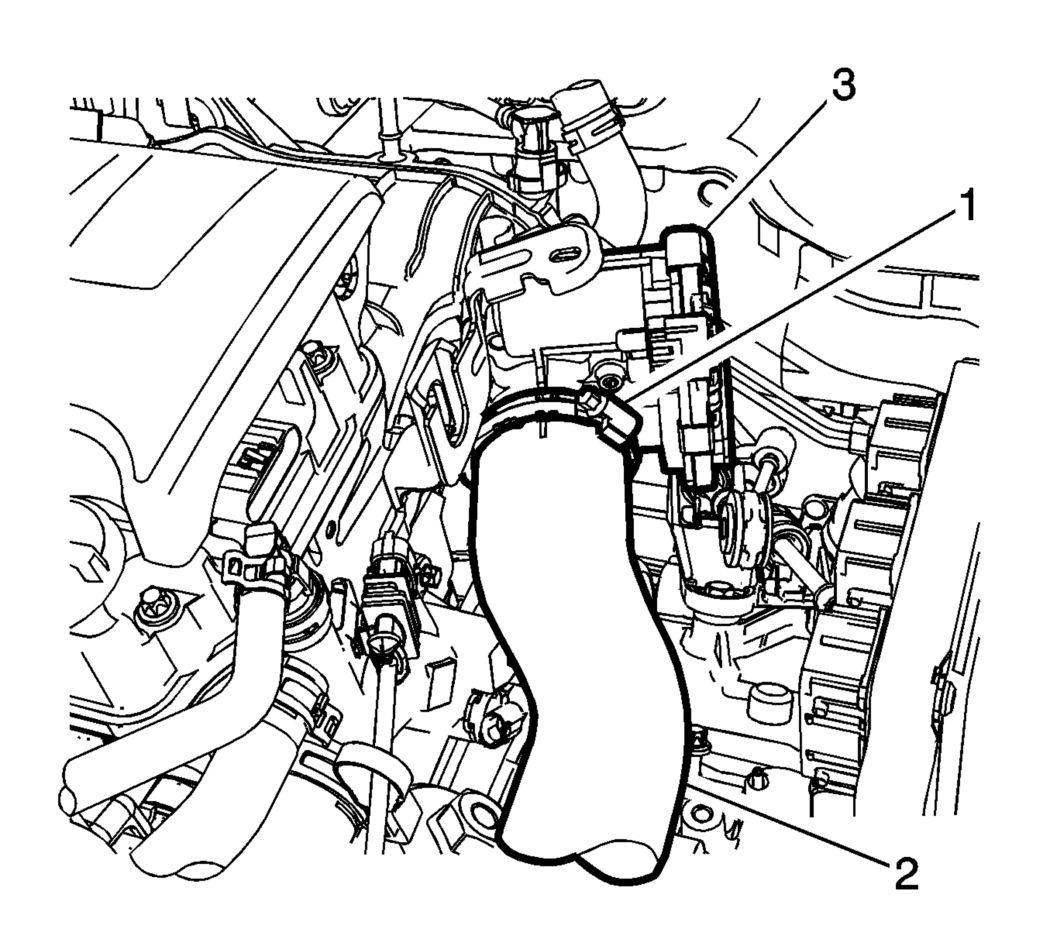

Fig 3: Charge Air Cooler Outlet Air Hose, Throttle Body & Clamp

Courtesy of GENERAL MOTORS COMPANY

Install the charge air cooler inlet air pipe to the turbocharger.

CAUTION:

Refer to Fastener Caution .

Tighten the clamp (1).
Connect the intake air pressure and temperature sensor electrical connector.
Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) .
