Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

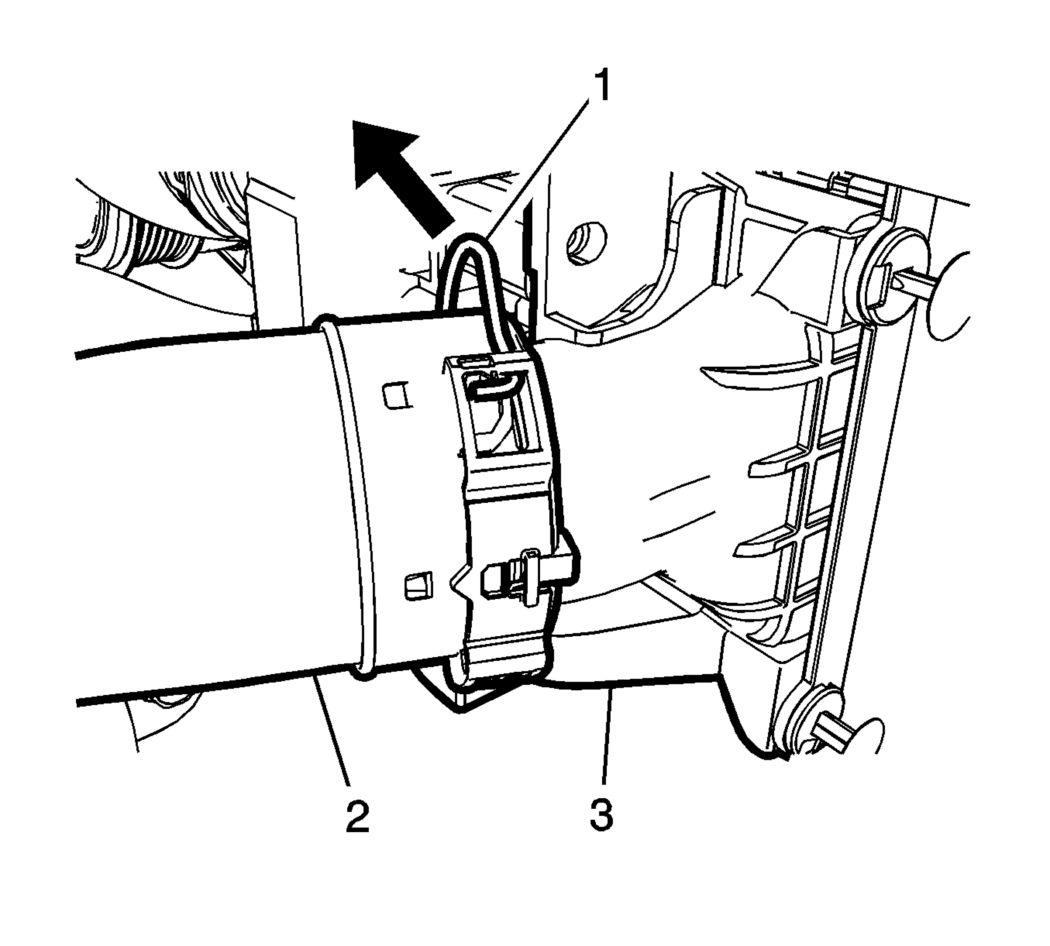

Fig 1: Charge Air Cooler Inlet Retainer Spring

Courtesy of GENERAL MOTORS COMPANY

Install the charge air cooler inlet air hose (2) to charge air cooler (3).
Clip the in retainer spring (1).

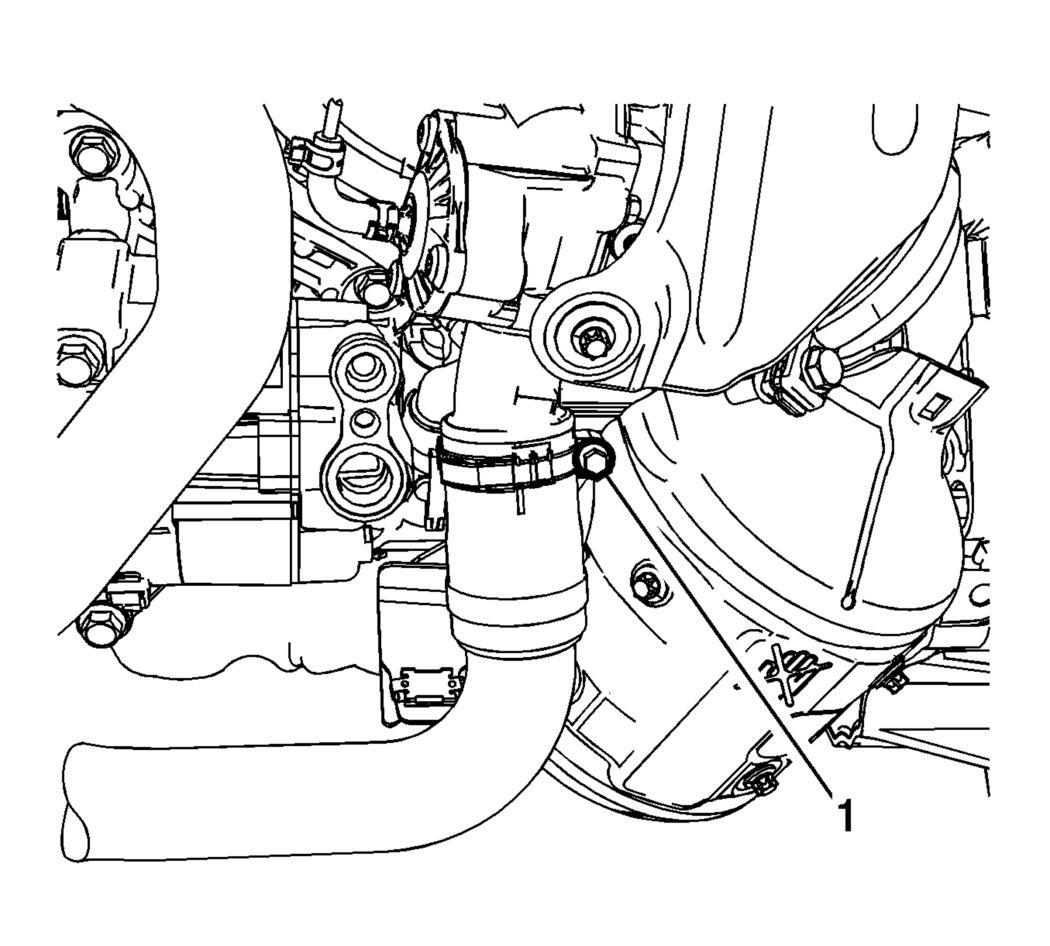

Fig 2: Charge Air Cooler Inlet Air Hose Clamp

Courtesy of GENERAL MOTORS COMPANY

Install the charge air cooler inlet air pipe to the turbocharger outlet.

CAUTION:

Refer to Fastener Caution .

Tighten the clamp (1).
Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) .
