Rear License Plate Lamp Wiring Harness Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

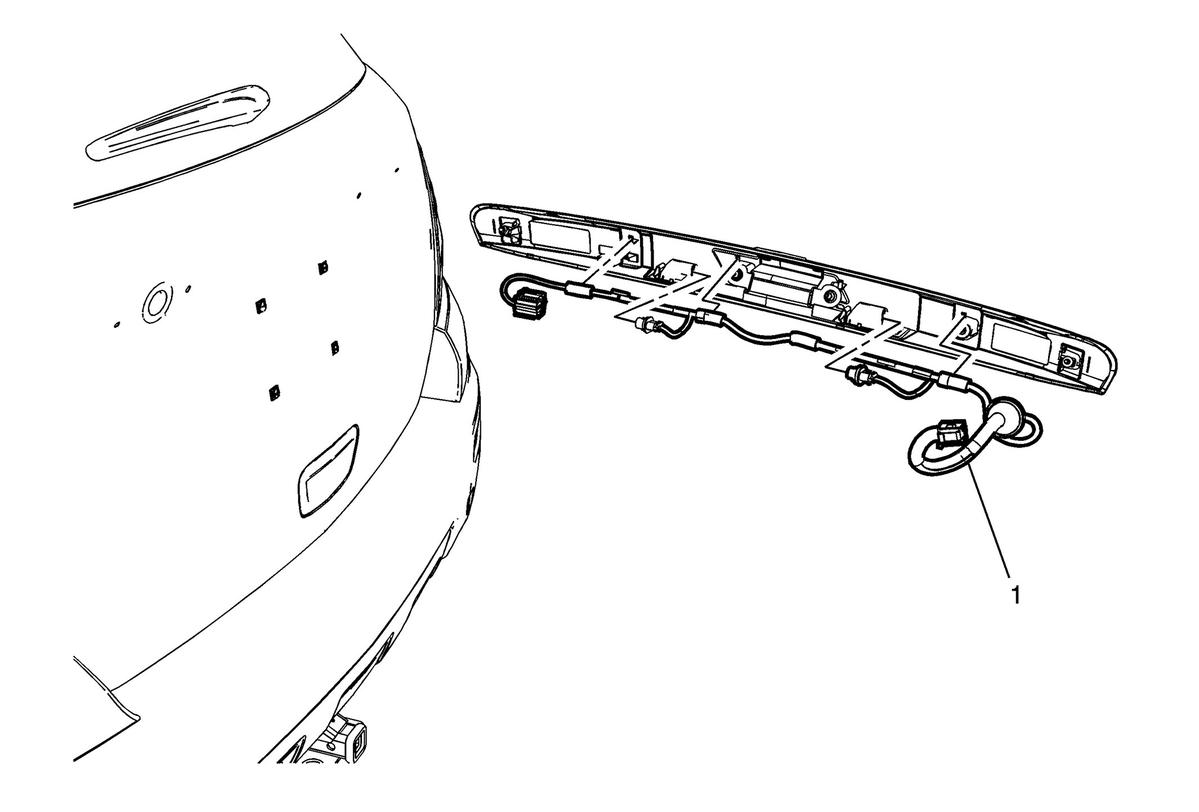

Fig 1: Rear License Plate Lamp Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement Remove the rear center applique. Refer to Liftgate Center Applique Replacement (Trax)Liftgate Center Applique Replacement (Encore) . Disconnect the electrical connector.
1	Rear License Plate Lamp Wiring Harness Procedure Disconnect the electrical harness from the applique. Disconnect the electrical harness from the rearview camera image display module. Replace the license plate bulbs if needed.

Callout

Component Name

Preliminary Procedure

Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement
Remove the rear center applique. Refer to Liftgate Center Applique Replacement (Trax)Liftgate Center Applique Replacement (Encore) .
Disconnect the electrical connector.

Rear License Plate Lamp Wiring Harness

Procedure

Disconnect the electrical harness from the applique.
Disconnect the electrical harness from the rearview camera image display module.
Replace the license plate bulbs if needed.
