Front Fog Lamp Cover Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Encore) |
|

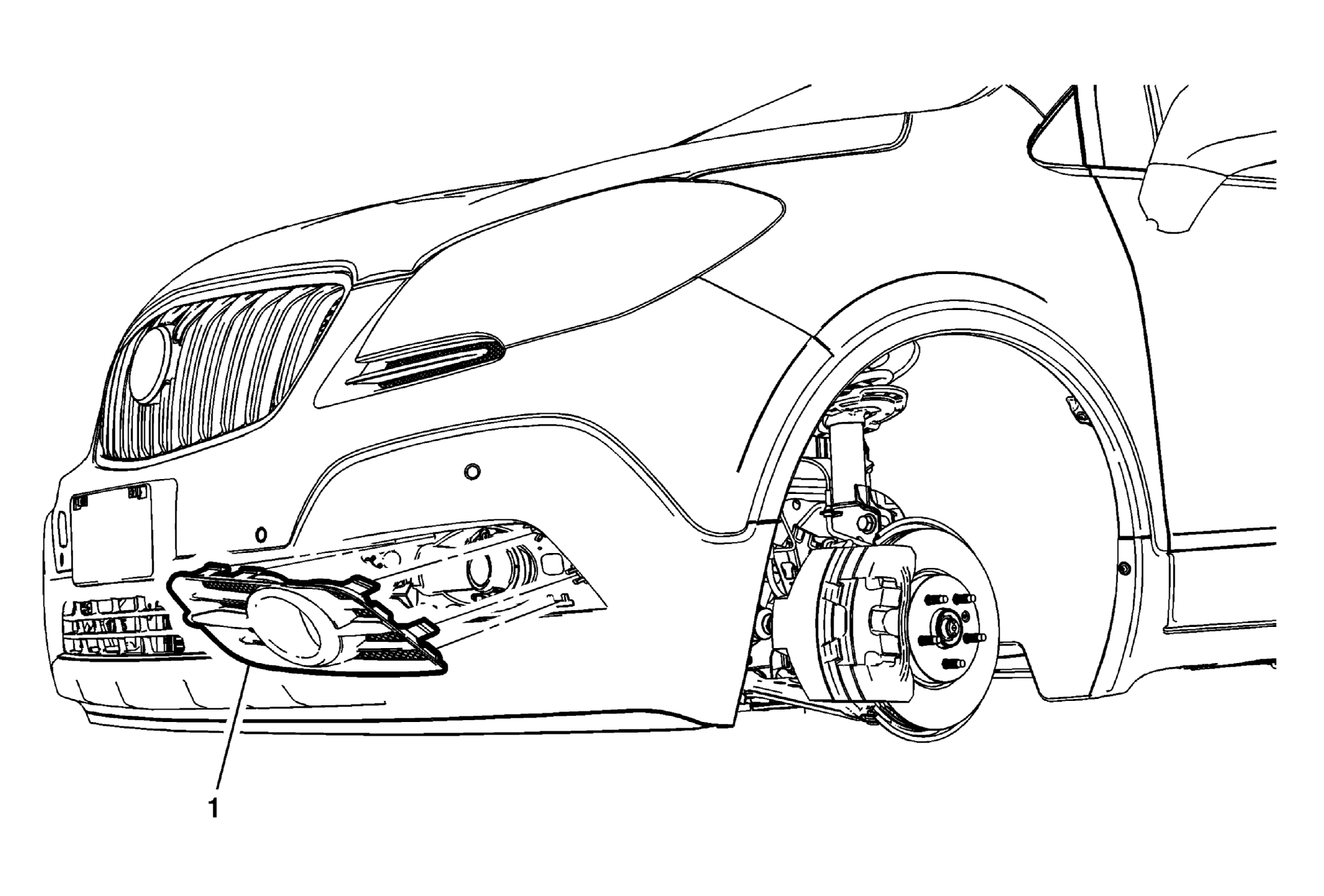

| 1 | Front Fog Lamp Opening Cover Procedure Release the eight locking tabs on the fog lamp opening cover from the front bumper fascia and push outward on the front fog lamp opening cover in order to remove. |
