Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:

    Do NOT allow the wiring harness to be pinched between the motor/module assembly and the steering column during installation. A pinched harness will cause diagnostic trouble codes to be set and may require replacement of the steering column.

  1. Position the steering column assembly in the vehicle.
  2. Fig 1: Steering Column Upper Support Bracket
    GM2810787Courtesy of GENERAL MOTORS COMPANY
  3. Steering Column Upper Support Bracket Bolt - Install, but do NOT tighten

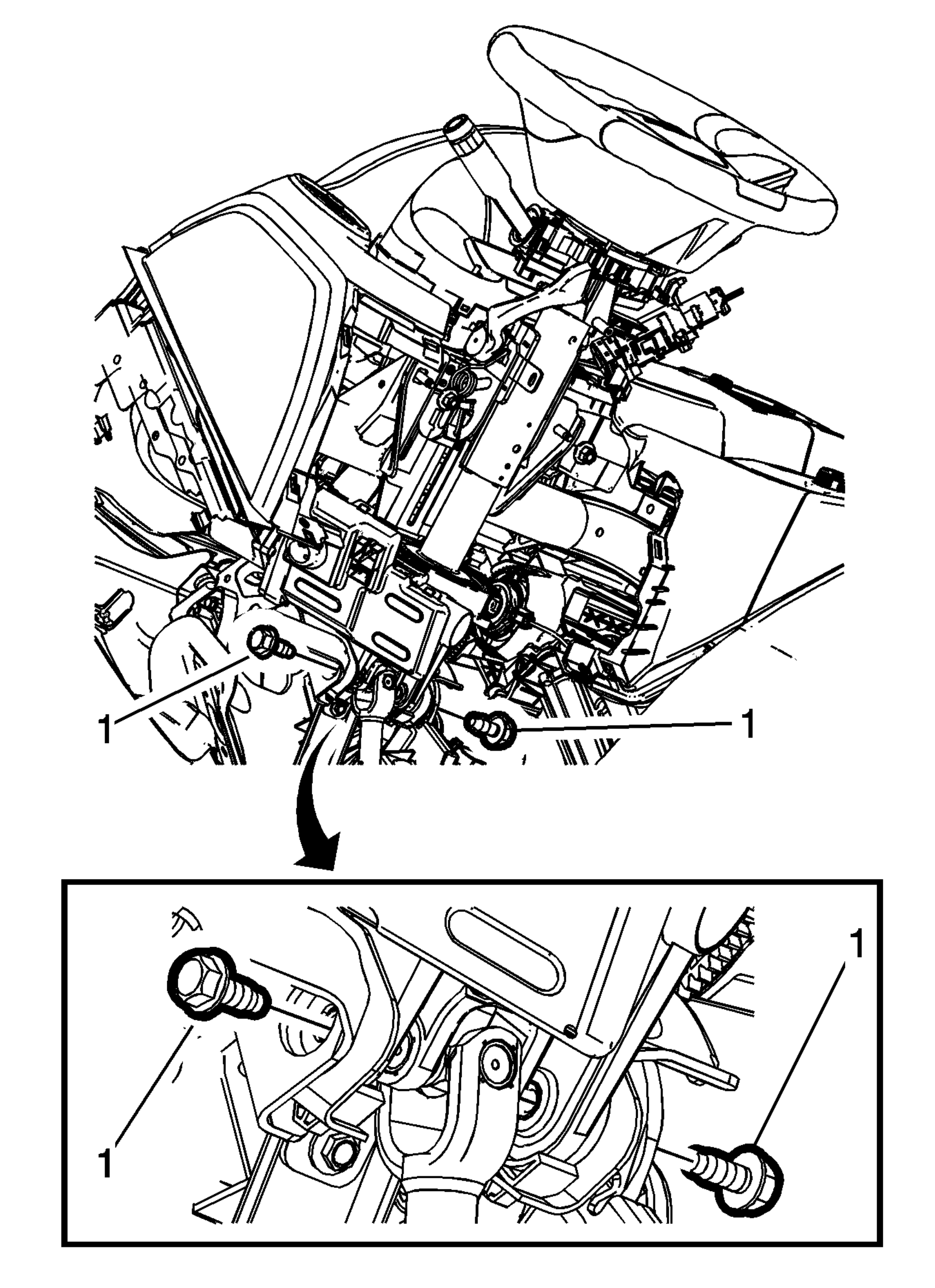

  4. Fig 2: Steering Column Lower Support Bracket
    GM2810784Courtesy of GENERAL MOTORS COMPANY
  5. Steering Column Lower Support Bracket Bolt - Install, but do NOT tighten
  6. WARNING:

    In order to ensure the intended function of the steering column in a vehicle during a crash and in order to avoid personal injury to the driver, perform the following:

    • Tighten the steering column lower fasteners before you tighten the steering column upper fasteners. Failure to do this can damage the steering column.
    • Tighten the steering column fasteners to the specified torque. Overtightening the upper steering column fasteners could affect the steering column collapse.
    CAUTION:

    Ensure all fasteners are securely seated before applying needed torque. Failure to do so may result in component damage or malfunctioning of steering column.

    CAUTION:

    Refer to Fastener Caution .

  7. Steering Column Lower Support Bracket Bolt - Tighten to 22 N.m (16 lb ft)
  8. Fig 3: Steering Column Upper Support Bracket
    GM2810787Courtesy of GENERAL MOTORS COMPANY
  9. Steering Column Upper Support Bracket Bolt - Tighten to 22 N.m (16 lb ft)
  10. Align the match marks on the intermediate steering shaft lower universal joint and the steering gear shaft to aid in installation.
  11. Align the match marks on the intermediate steering shaft lower universal joint and the intermediate steering shaft to aid in installation.
  12. Fig 4: Intermediate Steering Shaft Lower Universal Joint And Bolts
    GM4200924Courtesy of GENERAL MOTORS COMPANY
  13. Install the intermediate steering shaft lower universal joint (3) in the vehicle.
  14. Intermediate Steering Shaft Lower Bolt - Install and tighten 49 N.m (36 lb ft)
  15. Intermediate Steering Shaft Middle Bolt - Install and tighten 49 N.m (36 lb ft)
  16. Connect any electrical connectors as necessary.
  17. Instrument Panel Knee Bolster Outer Bracket Replacement Install
  18. Instrument Panel Knee Bolster Inner Bracket Replacement Install
  19. Floor Front Air Outlet Duct Replacement - Left Side (Encore)Floor Front Air Outlet Duct Replacement - Left Side (Trax) Install
  20. {If equipped} Instrument Panel Lower Airbag Replacement - Driver Side (AYF) Install
  21. Instrument Panel Knee Bolster Replacement (Encore)Instrument Panel Knee Bolster Replacement (Trax) Install
  22. Steering Column Lower Trim Cover Replacement (Encore) Steering Column Lower Trim Cover Replacement (Trax)  Install
  23. Program the power steering control module. Power Steering Control Module Programming and Setup
  24. Center the steering angle sensor. Steering Angle Sensor Centering
