Front Wheel Drive Intermediate Shaft Bracket Replacement (LUV with MH8 or MH5)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

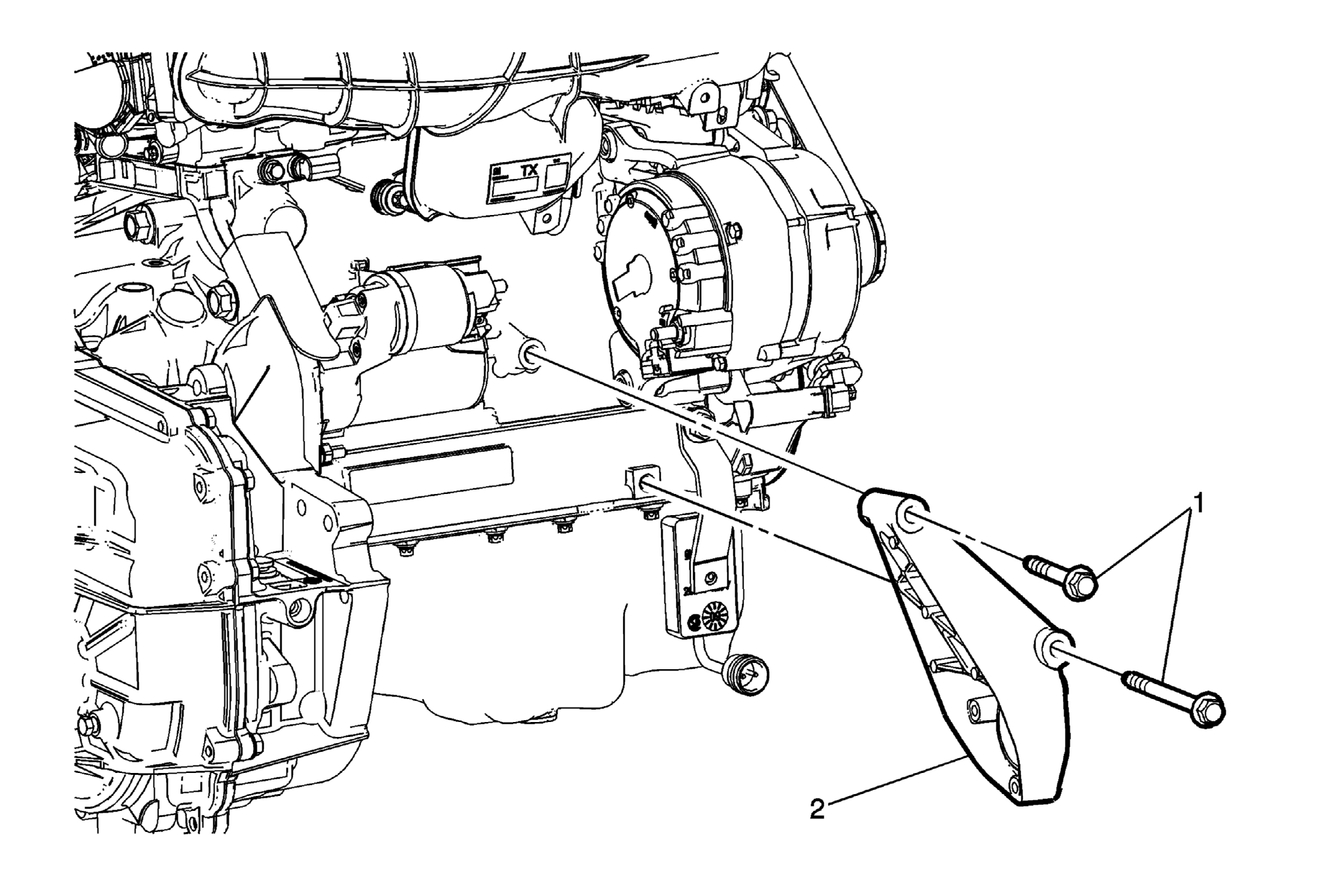

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheel drive intermediate shaft. Refer to Front Wheel Drive Intermediate Shaft Replacement (LUV with MH8 or MH5) . |
|
| 1 | Front Wheel Drive Shaft Bracket Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 58 N.m (43 lb ft) |
| 2 | Front Wheel Drive Intermediate Shaft Bracket |
