Front Wheel Drive Intermediate Shaft Replacement (LUV with MH8 or MH5)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

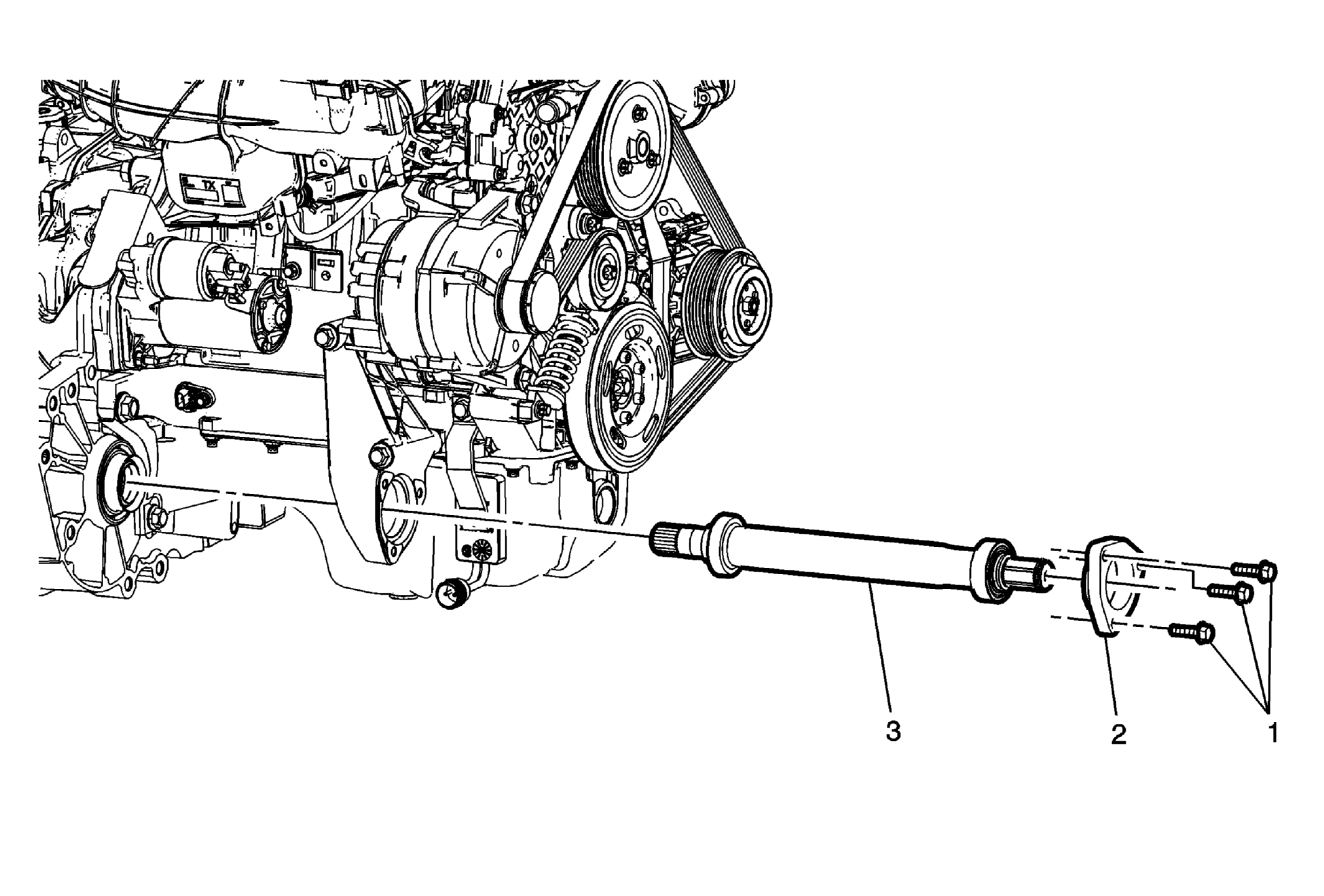

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side . |
|
| 1 | Front Wheel Drive Intermediate Shaft Bolts (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten the bolts: Tighten 22 N,m (16 lb ft) |
| 2 | Front Wheel Drive Intermediate Shaft Bearing Retainer |
| 3 | Front Wheel Drive Intermediate Shaft |
