Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Brake Dust Warning

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Rear Brake Rotor Remove - Rear Brake Rotor Replacement

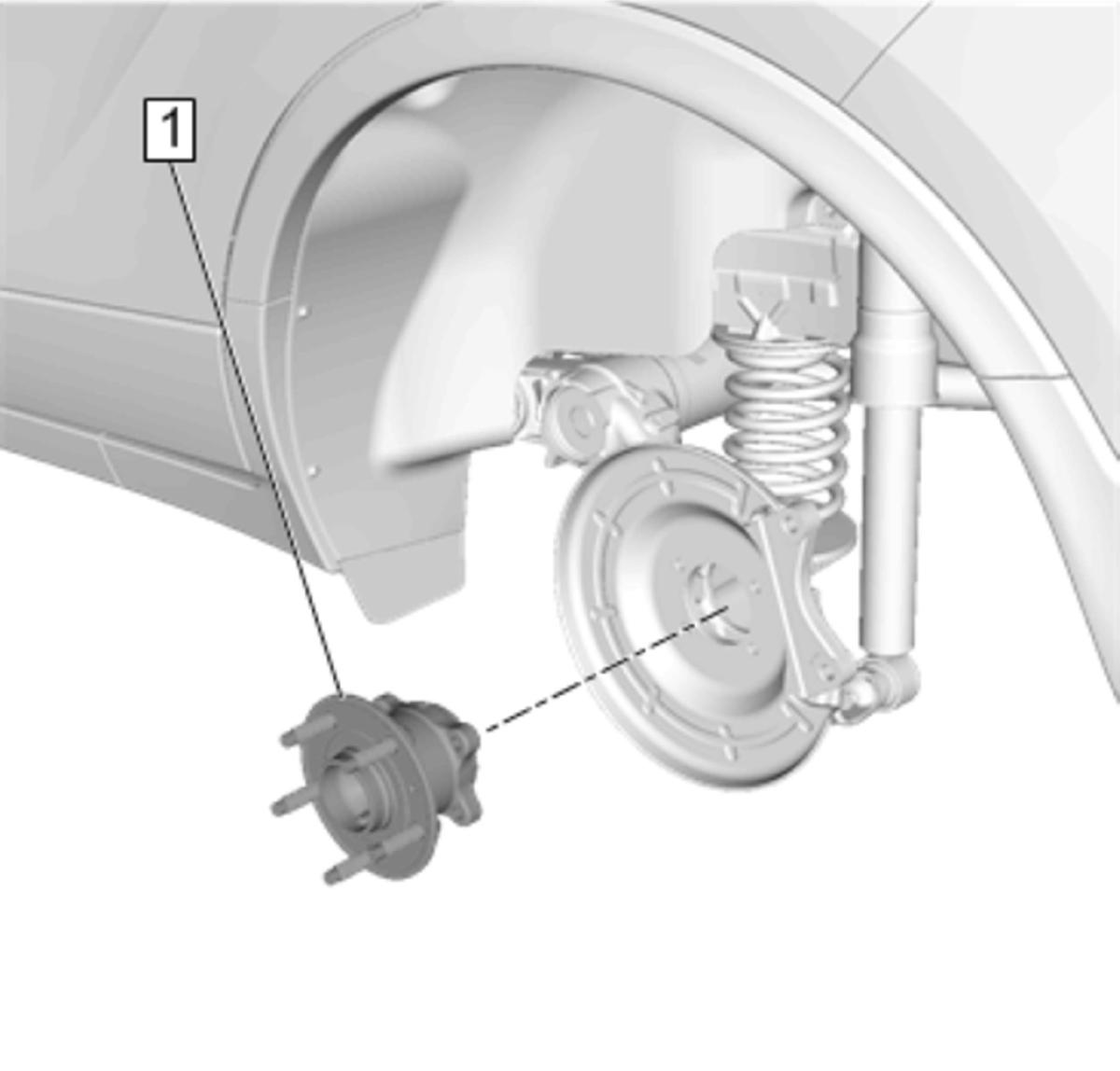

    3. Fig 1: Wheel Bearing and Hub Assembly
    GM4420487Courtesy of GENERAL MOTORS COMPANY
  3. Rear Wheel Bearing and Hub Assembly - RemoveRear Wheel Bearing and Hub Replacement (With Drum Brakes)Rear Wheel Bearing and Hub Replacement (With Disc Brakes)

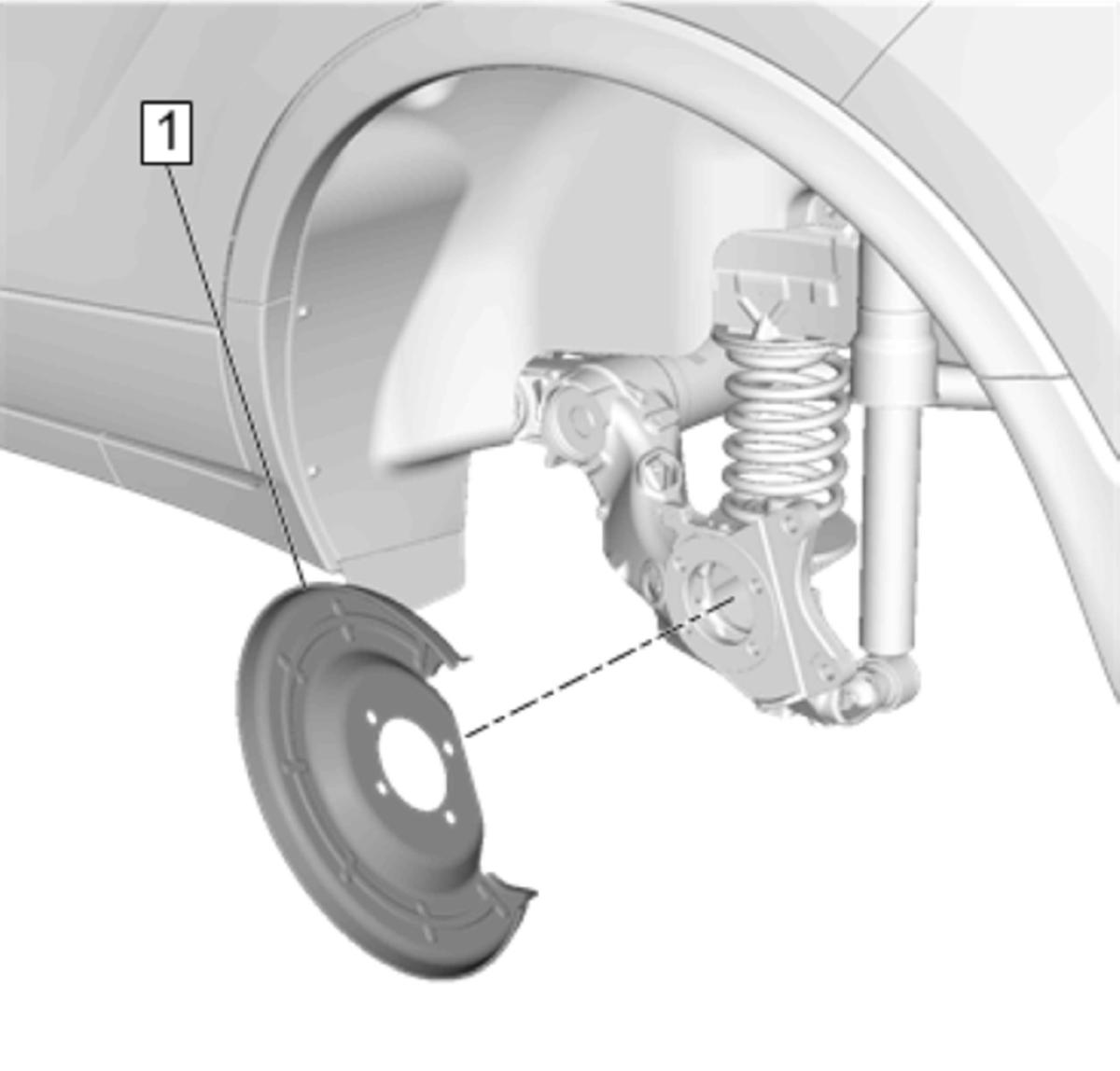

    4. Fig 2: Rear Brake Shield
    GM4420488Courtesy of GENERAL MOTORS COMPANY
  4. Rear Brake Shield - Remove

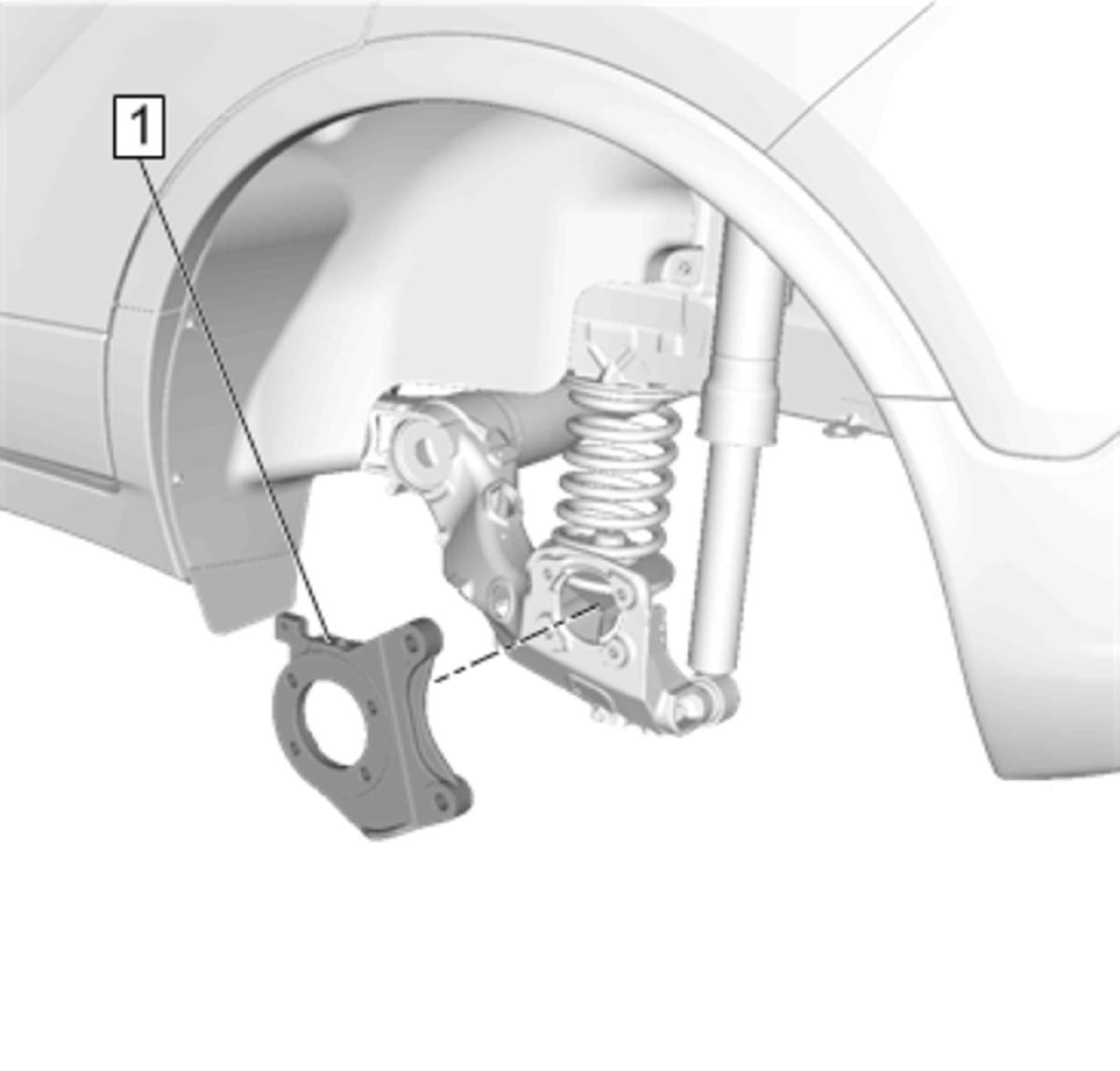

    5. Fig 3: Brake Caliper Bracket
    GM4424492Courtesy of GENERAL MOTORS COMPANY
  5. Brake Caliper Bracket - Remove
