Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Intermediate Steering Shaft@Steering Gear - Separate - Intermediate Steering Shaft Replacement (N40)
  2. Remove as much power steering fluid from the power steering fluid reservoir as possible.
  3. Raise and support the vehicle. Lifting and Jacking the Vehicle
  4. Steering Linkage Outer Tie Rod to Steering Knuckle - Separate - Steering Linkage Outer Tie Rod Replacement
  5. Front Stabilizer Shaft Link to Front Stabilizer Shaft - Separate - Stabilizer Shaft Link Replacement
  6. Exhaust Isolator to Drivetrain and Front Suspension Frame - Separate - Exhaust Front Pipe Replacement (LUV)Exhaust Front Pipe Replacement (2H0)
  7. Rear Transmission Mount Through Bolt - Remove - Transmission Mount Bracket Replacement - Rear (AWD)Transmission Mount Bracket Replacement - Rear (FWD)

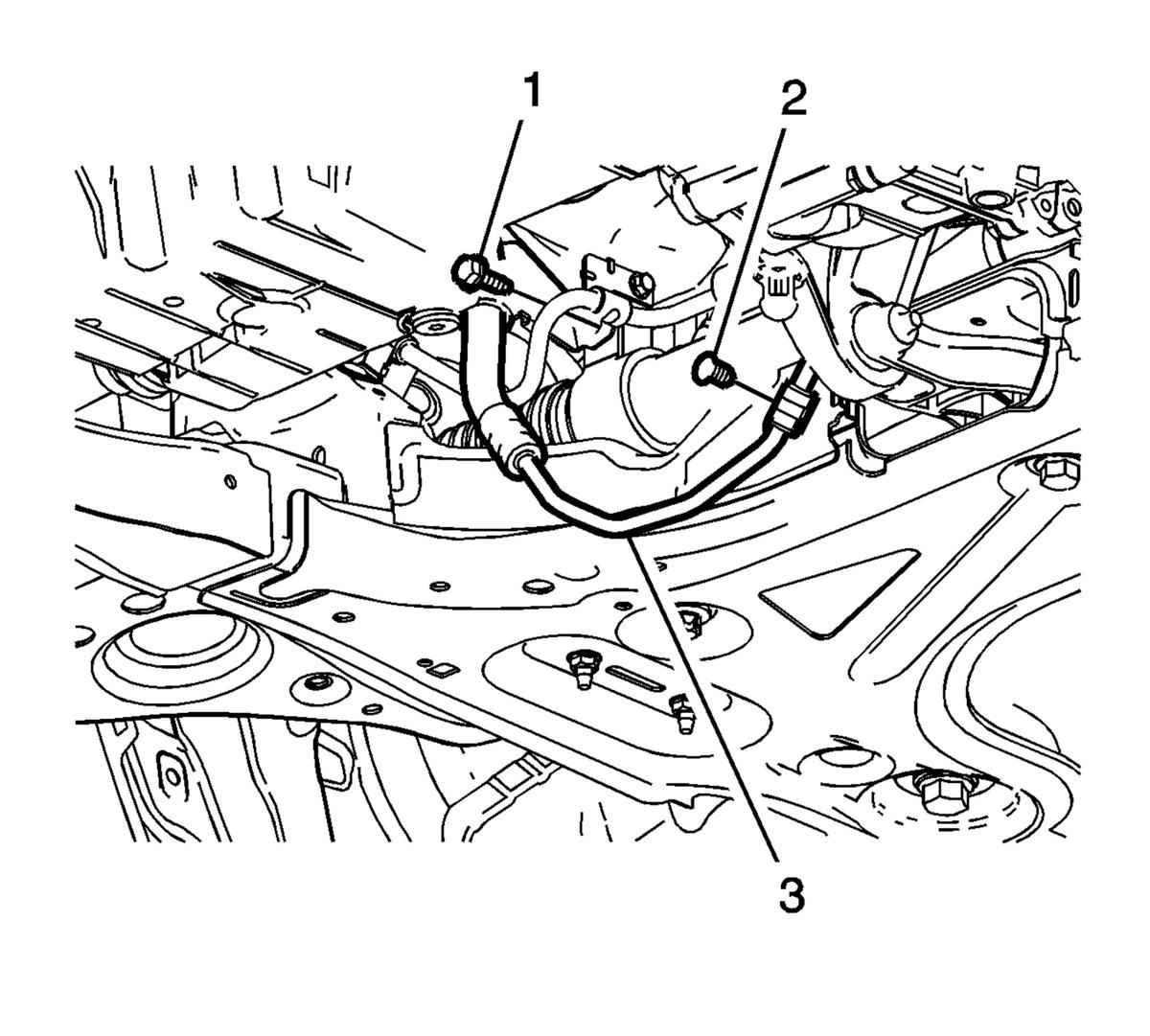

    8. Fig 1: Power Steering Gear Inlet Hose And Bracket
    GM2808014Courtesy of GENERAL MOTORS COMPANY
  8. Remove the power steering gear inlet hose bracket bolt (1) and the plastic push pin (2) and separate the power steering gear inlet hose (3) from the vehicle frame.
    9. Fig 2: Power Steering Gear Outlet Hose Bracket
    GM2809970Courtesy of GENERAL MOTORS COMPANY
  9. Remove the power steering gear outlet hose bracket bolt (1) and the plastic push pin (2) and separate the power steering gear inlet hose (3) from the steering gear.
    10. Fig 3: Power Steering Gear Inlet And Outlet Hoses
    GM2808015Courtesy of GENERAL MOTORS COMPANY
  10. Remove the power steering gear inlet and outlet hose bolt (1).
  11. Remove the power steering gear inlet hose (2), power steering gear outlet hose (3) and power steering gear inlet and outlet hose seals (4) from the steering gear.

    DISCARD the seals.

  12. Position adjustable stands underneath the left and right sides of the rear of the drivetrain and front suspension frame.
  13. Loosen, but do NOT remove, the drivetrain and front suspension frame front bolts. Drivetrain and Front Suspension Frame Replacement (Long Cradle)Drivetrain and Front Suspension Frame Replacement (Short Cradle)Drivetrain and Front Suspension Frame Replacement (Long Cradle - V5O)
  14. Remove the drivetrain and front suspension frame upper and rear bolts. Drivetrain and Front Suspension Frame Replacement (Long Cradle)Drivetrain and Front Suspension Frame Replacement (Short Cradle)Drivetrain and Front Suspension Frame Replacement (Long Cradle - V5O)
  15. Partially lower the rear of the drivetrain and front suspension frame to gain clearance for the steering gear.
  16. Finish removing the front stabilizer shaft. Stabilizer Shaft Replacement

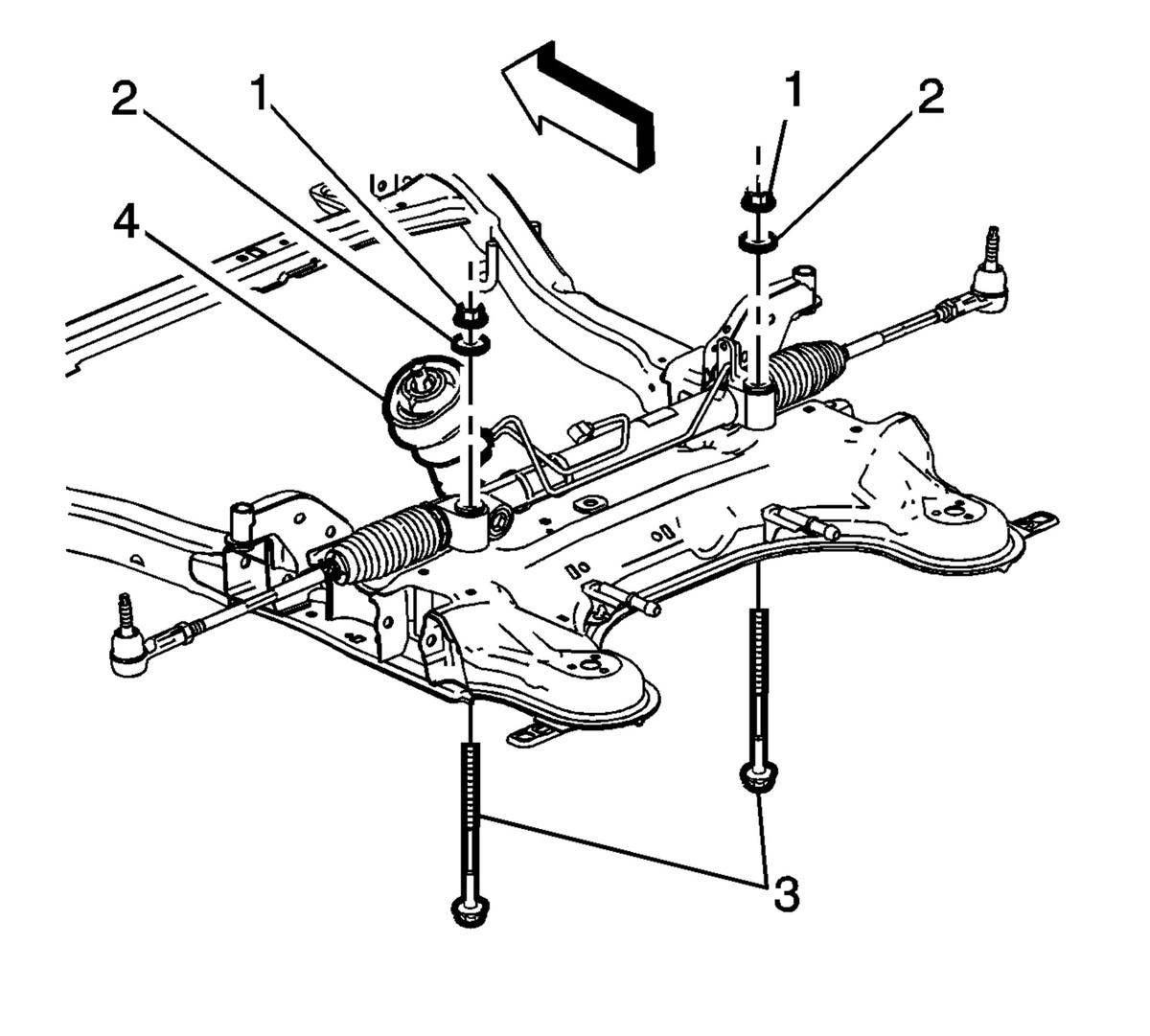

    17. Fig 4: Steering Gear And Mounting Bolts
    GM2813354Courtesy of GENERAL MOTORS COMPANY
  17. Remove the steering gear nuts (1), washers (2) and steering gear bolts (3).

    DISCARD the bolts.

  18. Remove the steering gear (4) from the drivetrain and front suspension frame.
  19. Transfer components as necessary.
