Stabilizer Shaft Link Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

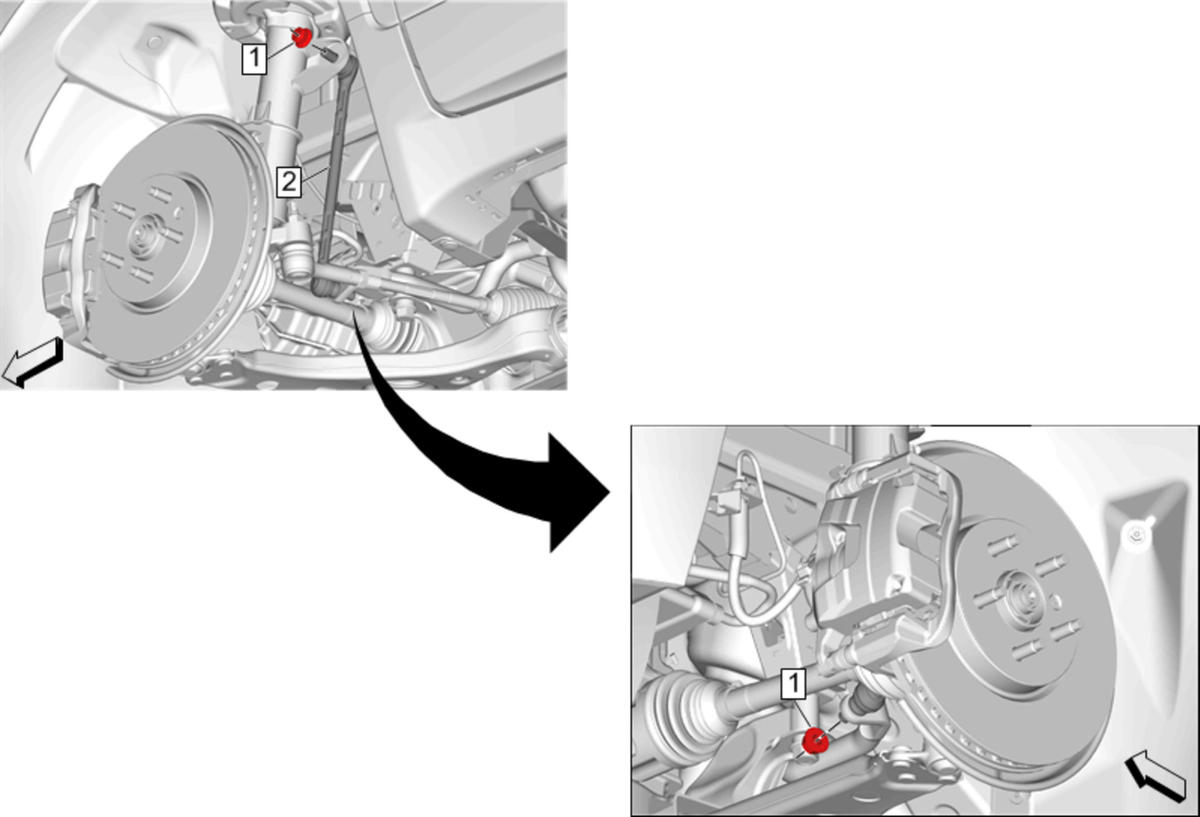

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation |
|
| 1 | Front Stabilizer Shaft Link Nut
CAUTION:
Refer to Fastener Caution . Procedure Use the proper tool to hold the front stabilizer shaft link stud from rotating while loosening the front stabilizer shaft link nut. Tighten 65 N.m (48 lb ft) |
| 2 | Front Stabilizer Shaft Link |
