Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

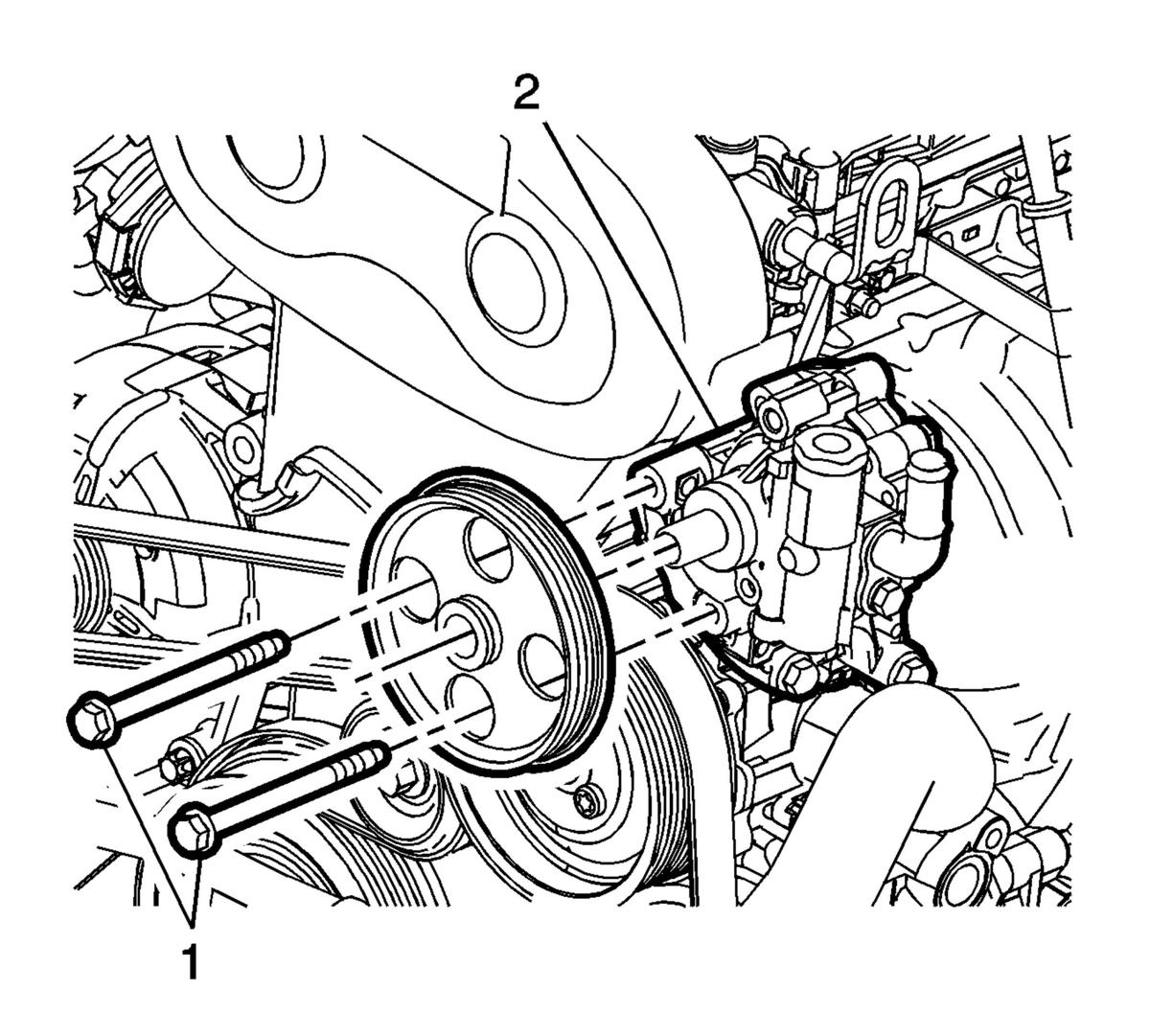

    Fig 1: Power Steering Pump And Bolts
    GM2807986Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering pump in the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Power Steering Pump Bolt - Install and tighten to 22 N.m (16 lb ft)
  3. Air Conditioning Evaporator Hose Assembly Replacement (2H0)Air Conditioning Evaporator Hose Assembly Replacement (LUJ, LUV) - Install

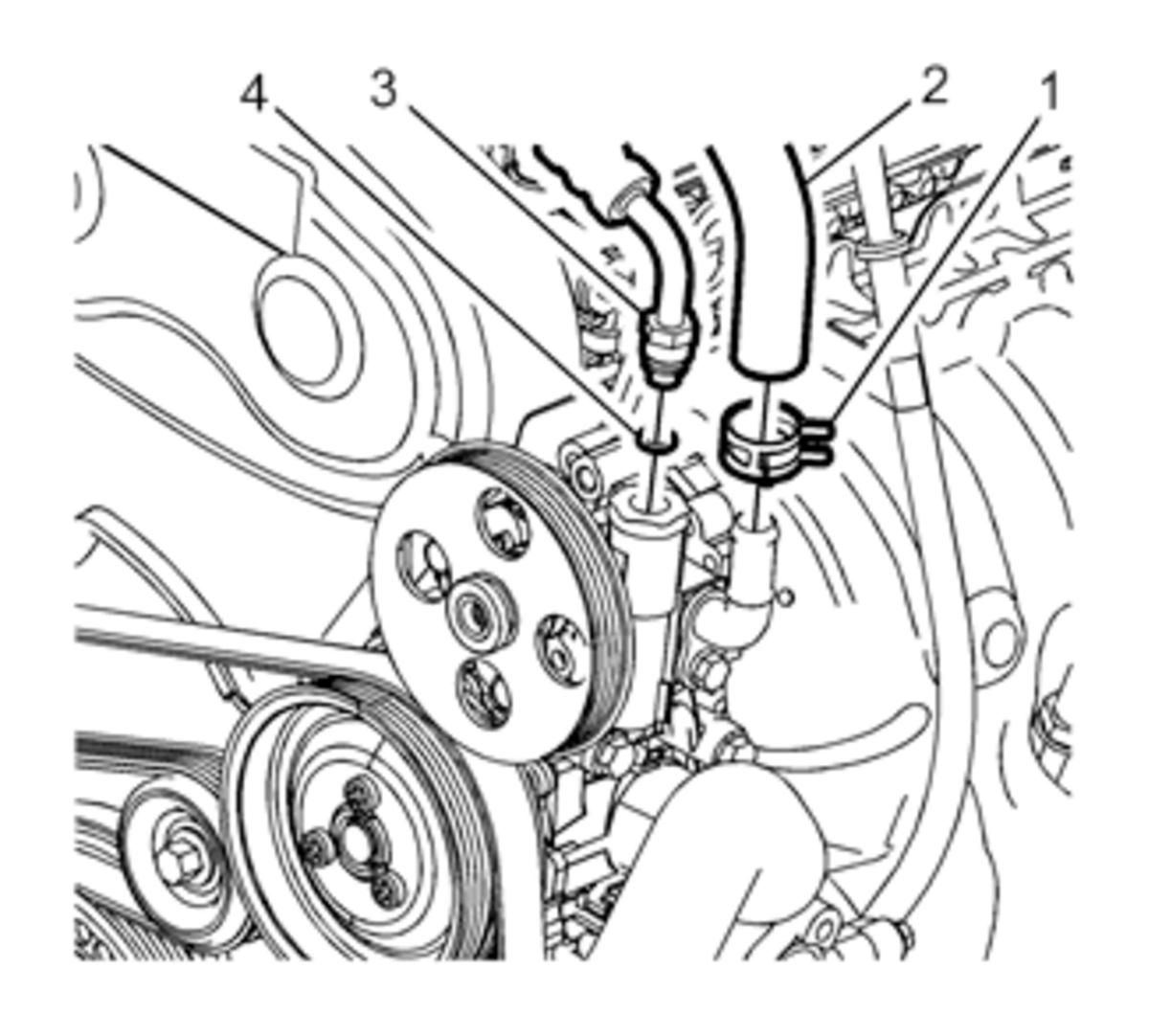

    4. Fig 2: Power Steering Fluid Reservoir Outlet Hose
    GM2807341Courtesy of GENERAL MOTORS COMPANY
  4. Power Steering Gear Inlet Hose Seal to Power Steering Gear Inlet Hose - Install

    Use a NEW seal.

    5. CAUTION:

    Refer to Component Fastener Tightening Caution .

  5. Power Steering Gear Inlet Hose to Power Steering Pump - Install and tighten 34 N.m (25 lb ft)
  6. Power Steering Fluid Reservoir Outlet Hose to Power Steering Pump - Install
  7. Power Steering Fluid Reservoir Outlet Hose Clamp to Power Steering Pump - Install
  8. Power Steering Pump Belt - Install
  9. Air Cleaner Assembly Replacement - Install
  10. Fill and bleed the power steering system. Power Steering System Bleeding
