Power Steering Pump Rear Brace Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

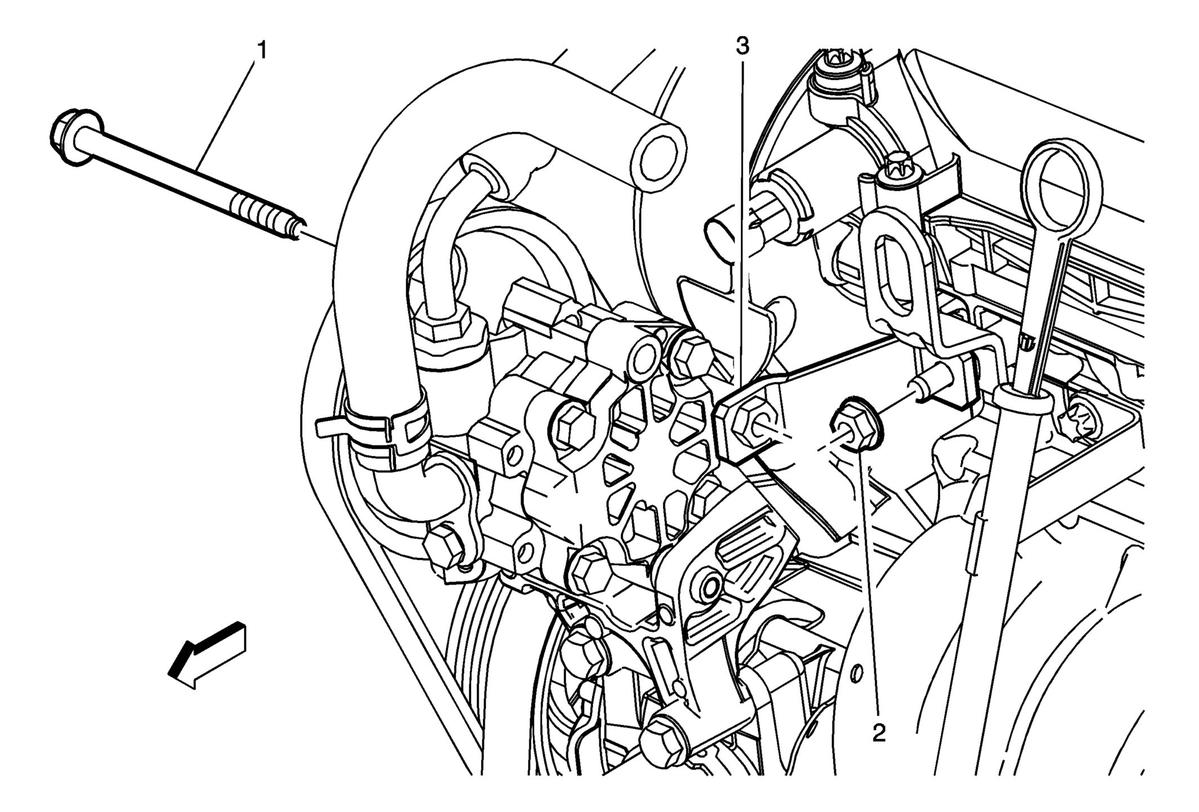

| Callout | Component Name |
|---|---|
| Preliminary Procedure Power Steering Fluid Reservoir Replacement |
|
| 1 | Power Steering Pump Bolt
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Power Steering Pump Rear Brace Nut Tighten 22 N.m (16 lb ft) |
| 3 | Power Steering Pump Rear Brace |
