Power Steering Fluid Reservoir Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

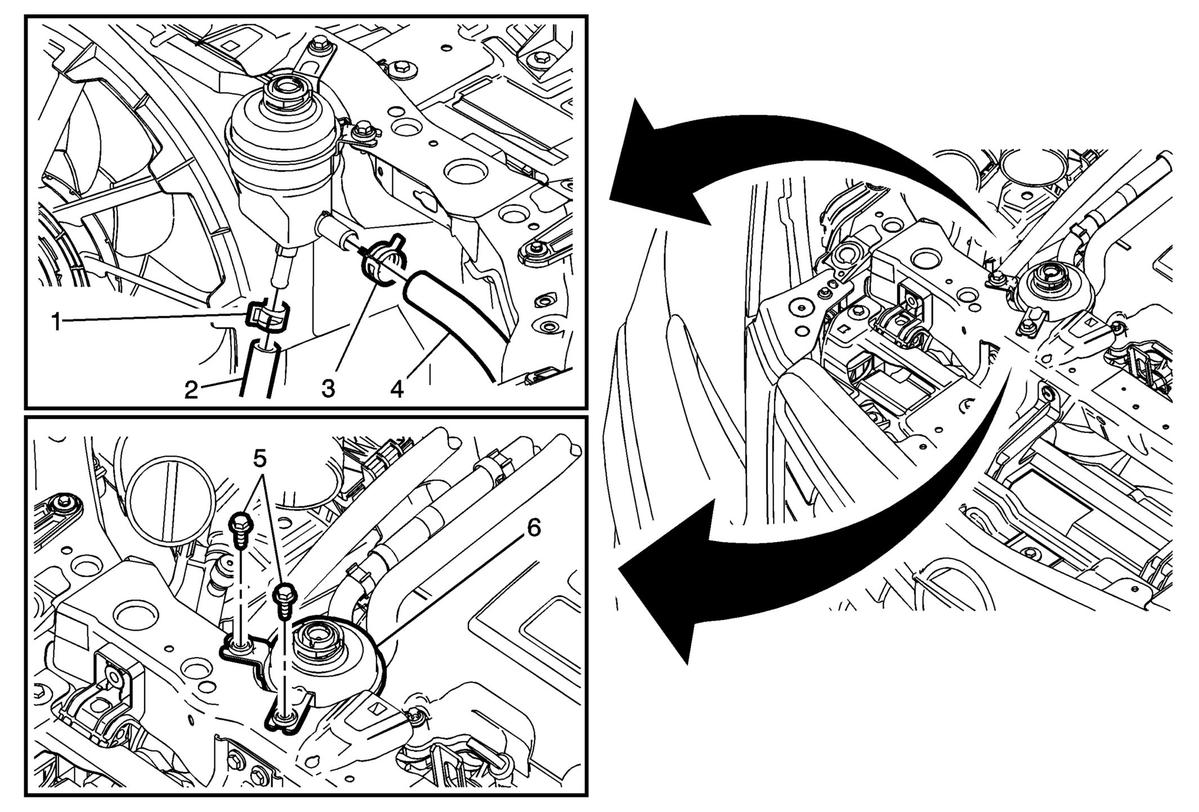

Fig 1: Power Steering Fluid Reservoir

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Opening Upper Cover Replacement Remove as much power steering fluid from the power steering fluid reservoir as possible.
1	Power Steering Fluid Reservoir Inlet Hose Clamp
2	Power Steering Fluid Reservoir Inlet Hose
3	Power Steering Fluid Reservoir Outlet Hose Clamp
4	Power Steering Fluid Reservoir Outlet Hose
5	Power Steering Fluid Reservoir Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
6	Power Steering Fluid Reservoir Procedure Fill and bleed the power steering system. Power Steering System Bleeding
