Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

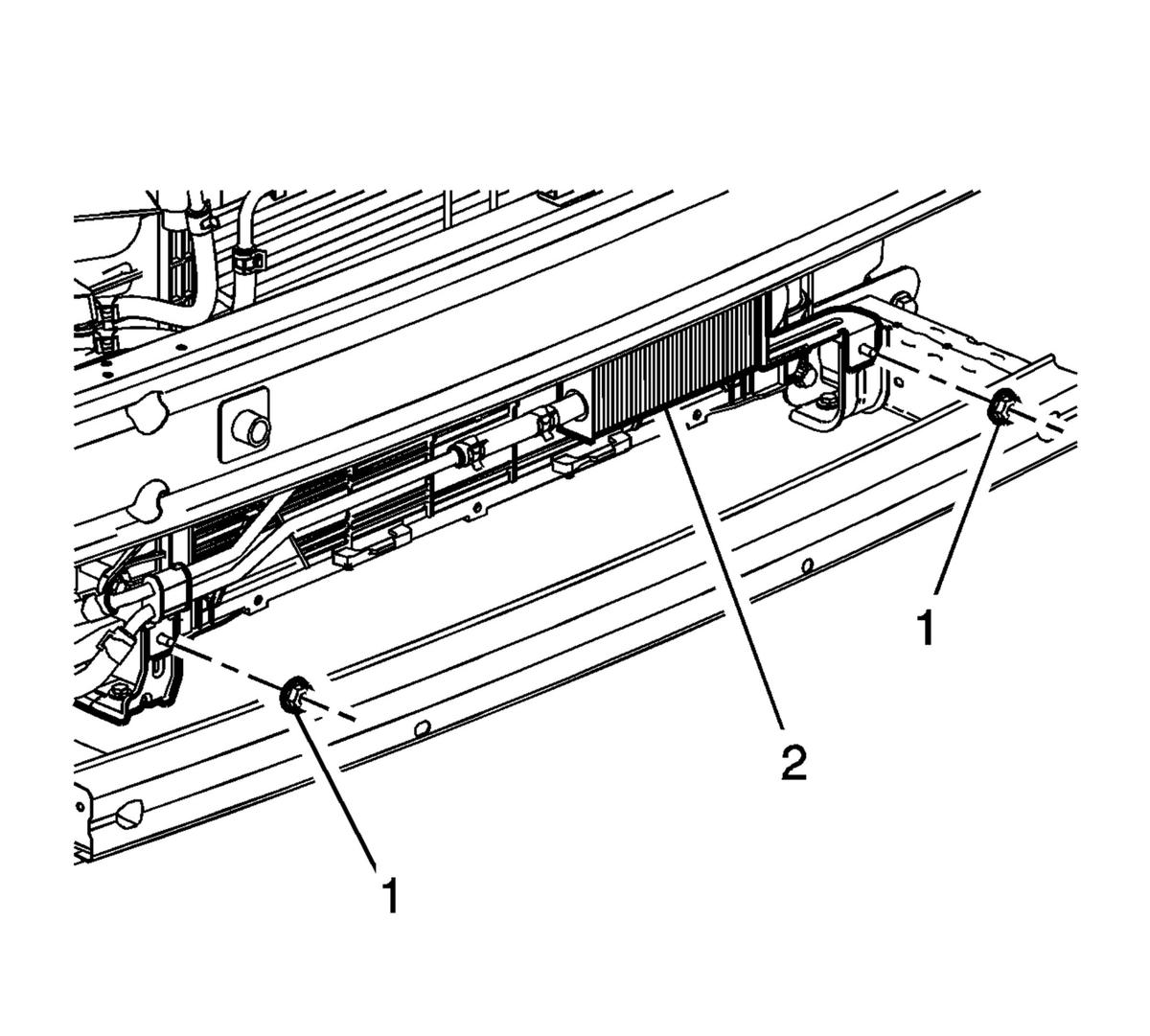

    Fig 1: Power Steering Fluid Cooler
    GM2812359Courtesy of GENERAL MOTORS COMPANY
  1. Position the power steering fluid cooler (2) on the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Power Steering Fluid Cooler Nut - Install and tighten 9 N.m (80 lb in)
    3. Fig 2: P/S Fluid Reservoir Inlet Pipe
    GM2810052Courtesy of GENERAL MOTORS COMPANY
  3. Power Steering Fluid Reservoir Inlet Pipe to Power Steering Fluid Cooler - Install
  4. Power Steering Fluid Reservoir Inlet Pipe Clamp to Power Steering Fluid Cooler - Install

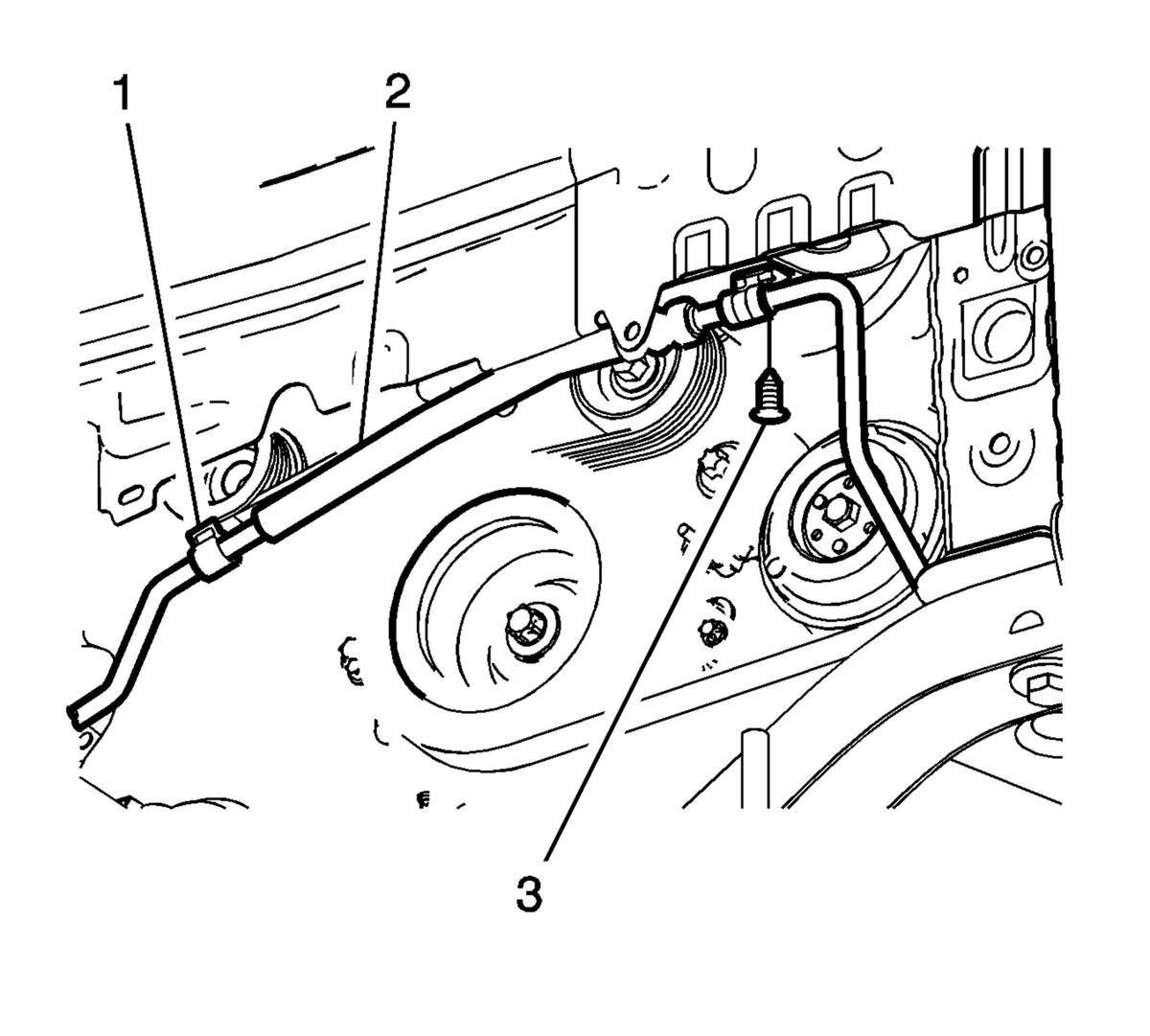

    5. Fig 3: Power Steering Gear Outlet Hose And Clamp
    GM2812352Courtesy of GENERAL MOTORS COMPANY
  5. Power Steering Gear Outlet Hose to Power Steering Fluid Cooler - Install
  6. Power Steering Gear Outlet Hose Clamp to Power Steering Fluid Cooler - Install
  7. Install the plastic push pin (3) in the power steering fluid cooler bracket.
  8. Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) - Install
  9. Fill and bleed the power steering system. Power Steering System Bleeding
