Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- From inside the vehicle, feed the parking brake cable ends through the vehicle body.
- Install the parking brake cable pass through grommets (1).
- Install the parking brake cable routing clips (2).
- Install the parking brake cable collars (3) to the floor tunnel bracket.
- Connect the park brake lever cable to the park brake cable equalizer (4).
- Reposition the rear floor carpet.
- Install the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

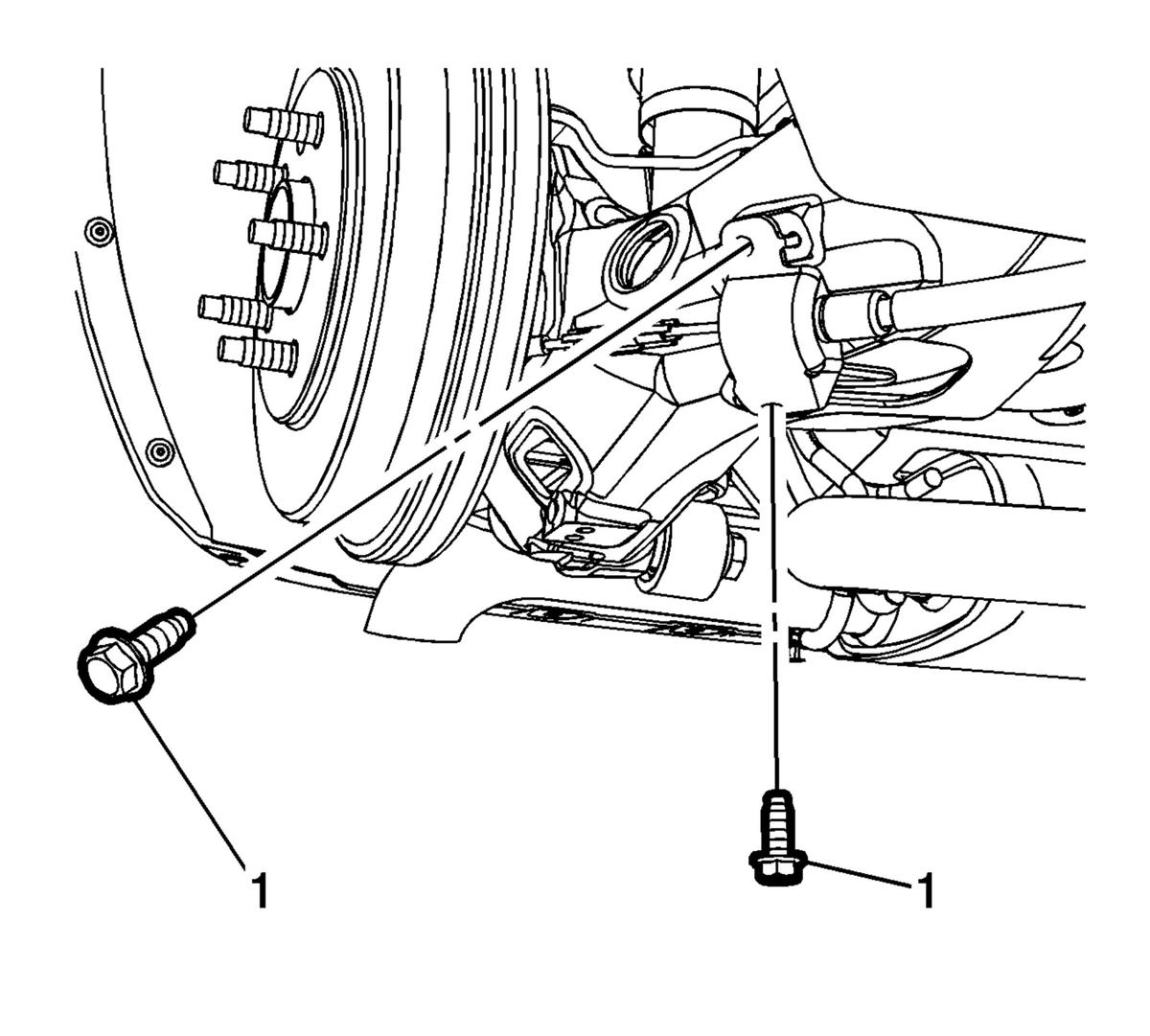

- Install the rear right parking brake cable bracket bolts (1) and tighten to 22 N.m (16 lb ft).
- Connect the right parking brake cable connector.
- Install the front right parking brake cable bracket nut (1) and tighten to 22 N.m (16 lb ft).

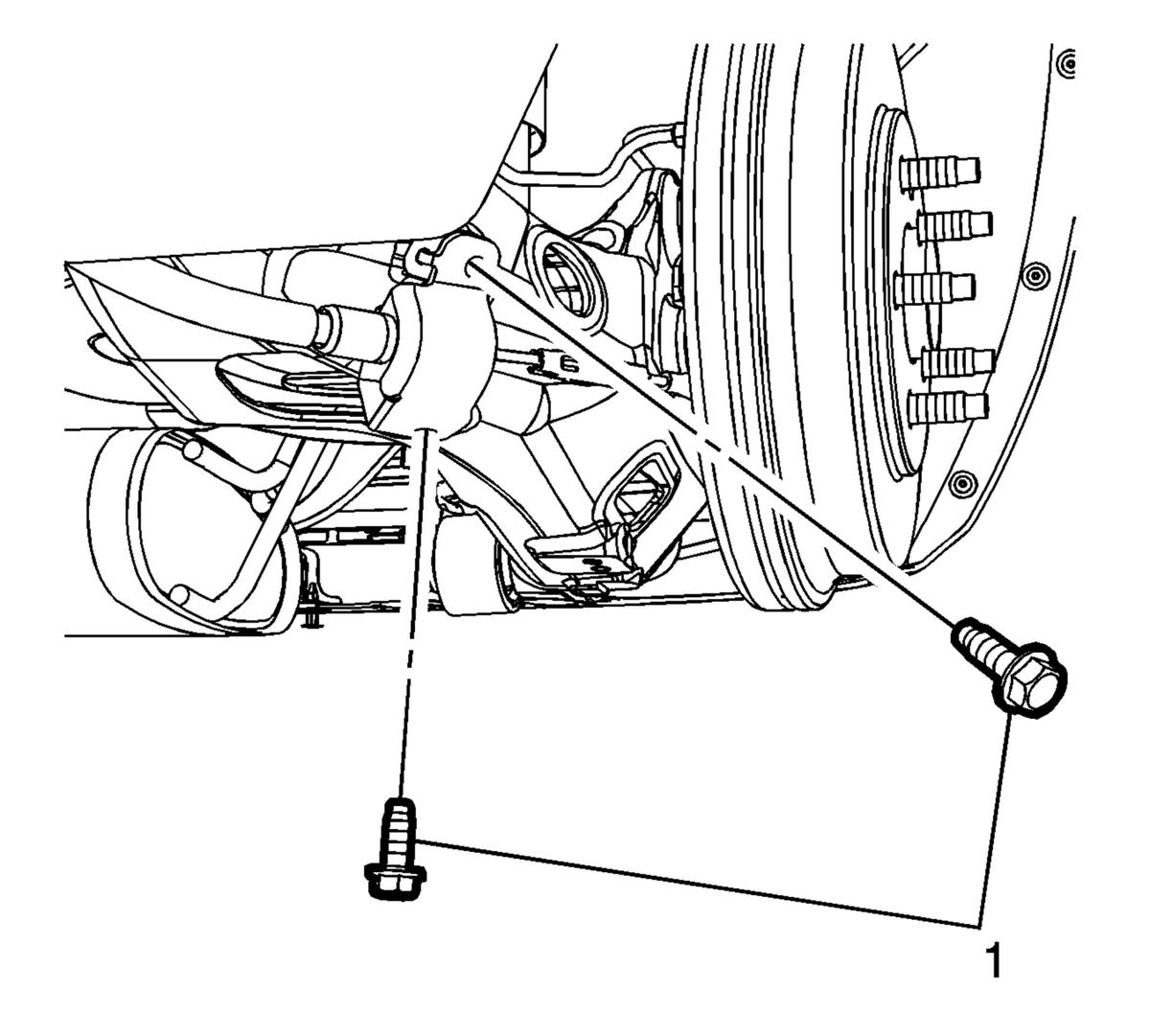

- Install the rear left parking brake cable bracket bolts (1) and tighten to 22 N.m (16 lb ft).
- Connect the left parking brake cable connector.
- Install the front left parking brake cable bracket bolt (1) and tighten to 22 N.m (16 lb ft).
- Lower the vehicle.
- Using ONLY HAND TOOLS, loosely install the adjusting nut (1) to the front park brake cable threaded rod.
- Adjust the parking brake. Refer to Parking Brake Adjustment (Drum Brake) .
- Install the front floor console. Refer to Front Floor Console Replacement (Encore)Front Floor Console Replacement (Trax) .
CAUTION:
Refer to Fastener Caution .
