Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console. Refer to Front Floor Console Replacement (Encore)Front Floor Console Replacement (Trax) .
  2. Ensure that the parking brake lever is in the fully released position.
  3. Disconnect the electrical connector from the parking brake warning lamp switch.
    4. Fig 1: Parking Brake Cable Adjusting Nut
    GM2513001Courtesy of GENERAL MOTORS COMPANY
  4. Using ONLY HAND TOOLS, remove the adjusting nut (1) from the front cable threaded rod.

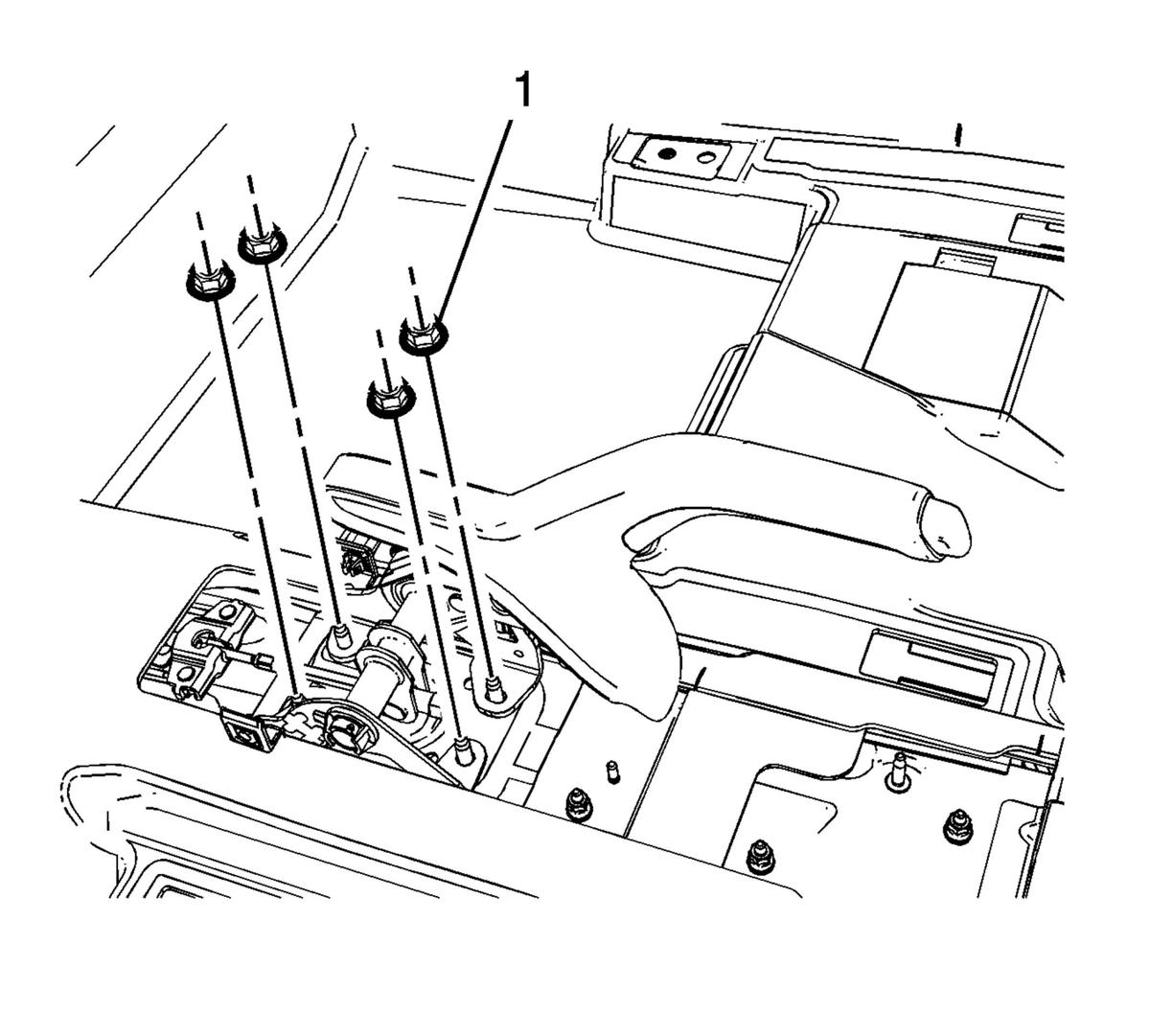

    5. Fig 2: Parking Brake Lever Mounting Nut
    GM2513002Courtesy of GENERAL MOTORS COMPANY
  5. Remove the parking brake lever mounting nuts (1).
  6. While removing the front cable threaded rod from the parking brake lever assembly, remove the parking brake lever assembly from the vehicle.
