Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. While installing the front cable threaded rod to the parking brake lever assembly, install the parking brake lever assembly to the vehicle.

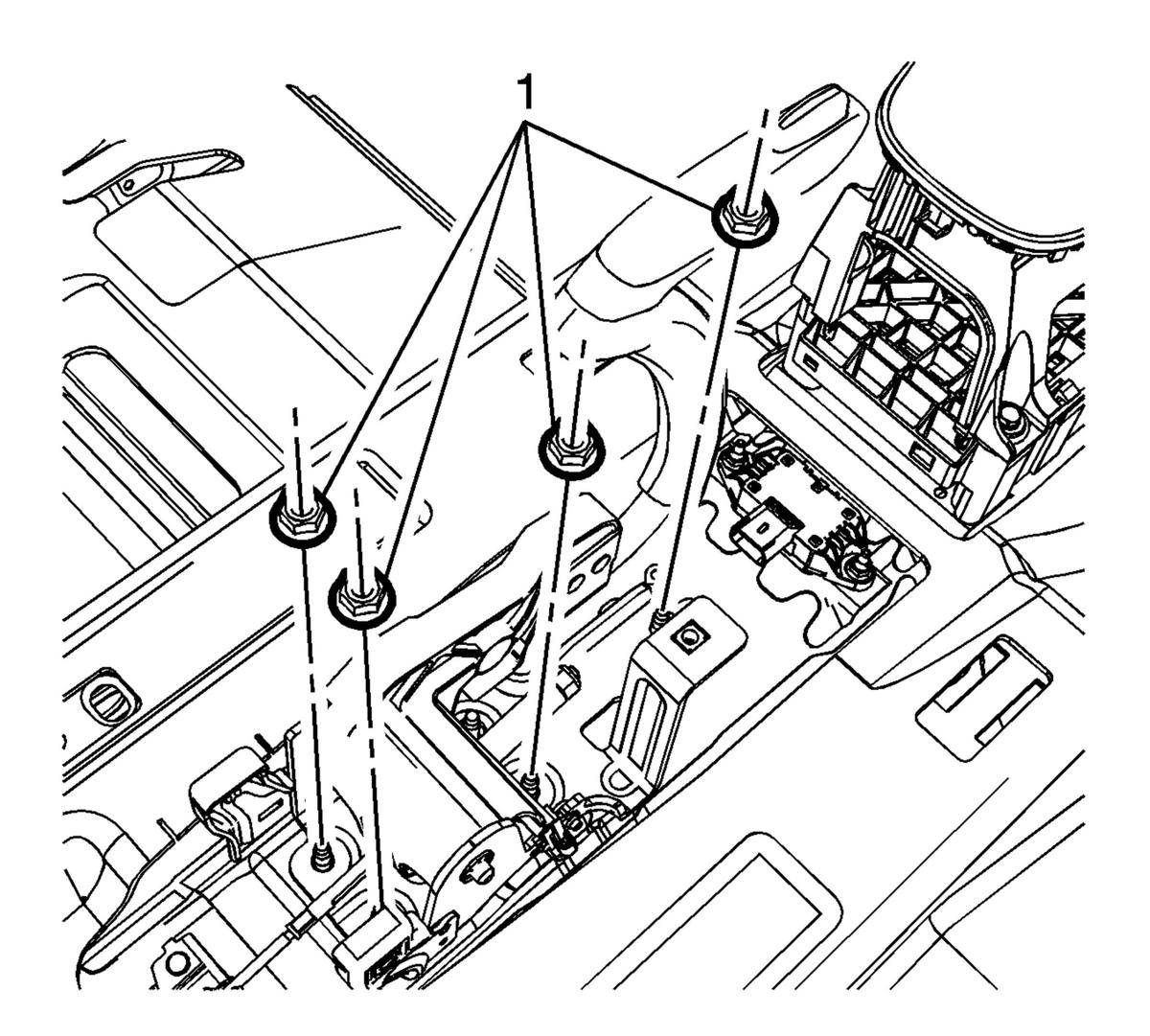

    2. Fig 1: Parking Brake Lever Mounting Nuts
    GM2772557Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the parking brake lever mounting nuts (1) and tighten to 22 N.m (16 lb ft).
  3. Connect the electrical connector to the parking brake indicator switch.
    4. Fig 2: Parking Brake Cable Adjusting Nut
    GM2513001Courtesy of GENERAL MOTORS COMPANY
  4. Loosely install the adjusting nut (1) to front cable threaded rod.
  5. Adjust the parking brake cable tension. Refer to Parking Brake Adjustment (Disc Brake) .
  6. Install the front floor console. Refer to Front Floor Console Replacement (Encore)Front Floor Console Replacement (Trax) .
