Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console. Refer to Front Floor Console Replacement (Encore)Front Floor Console Replacement (Trax) .
  2. Ensure that the park brake lever is in the fully released position.
  3. Disconnect the electrical connector from the parking brake indicator switch.

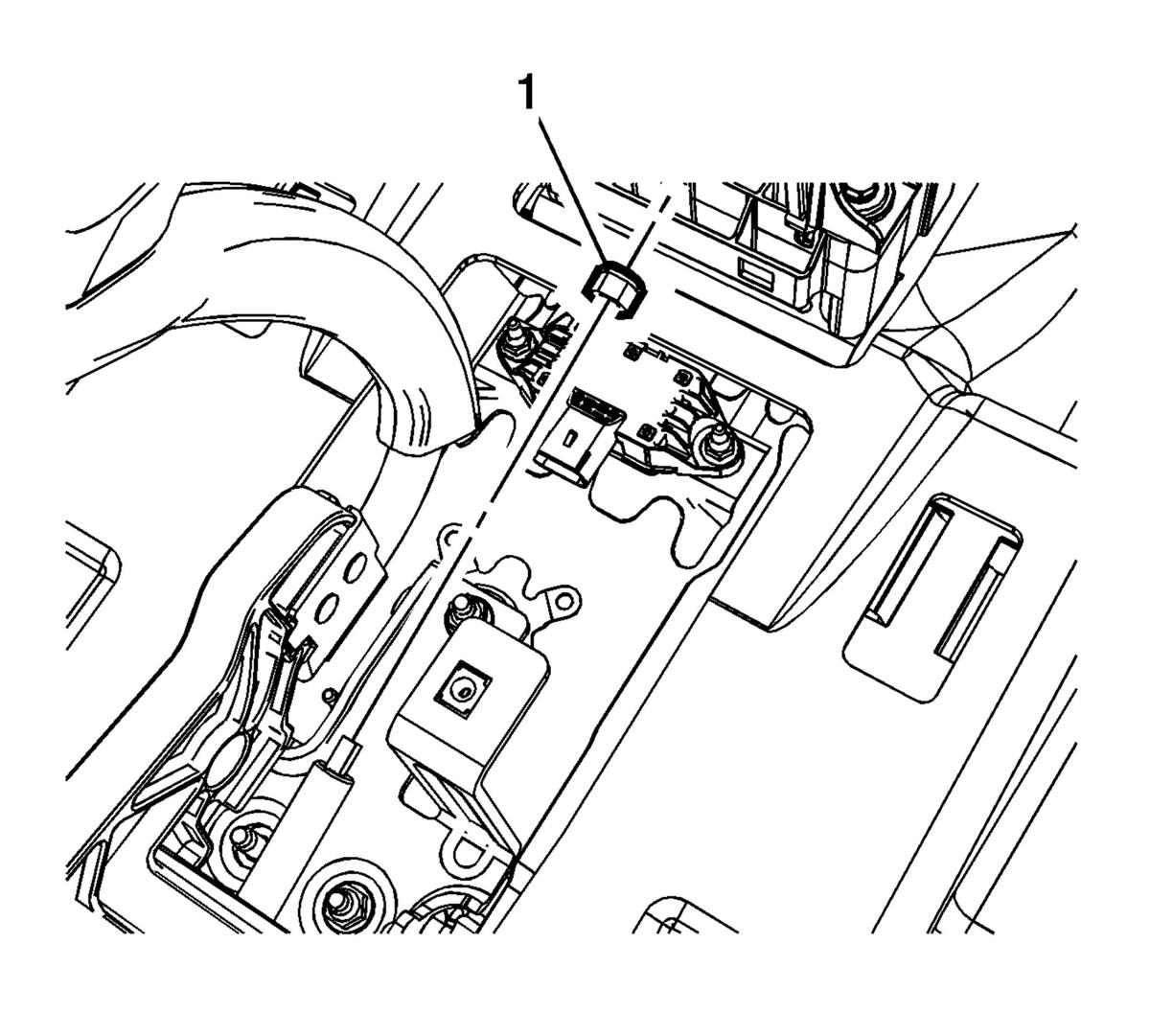

    4. Fig 1: Parking Brake Front Cable Adjuster Nut
    GM2787059Courtesy of GENERAL MOTORS COMPANY
  4. Using ONLY HAND TOOLS, remove the adjusting nut (1) from the parking brake front cable threaded rod.

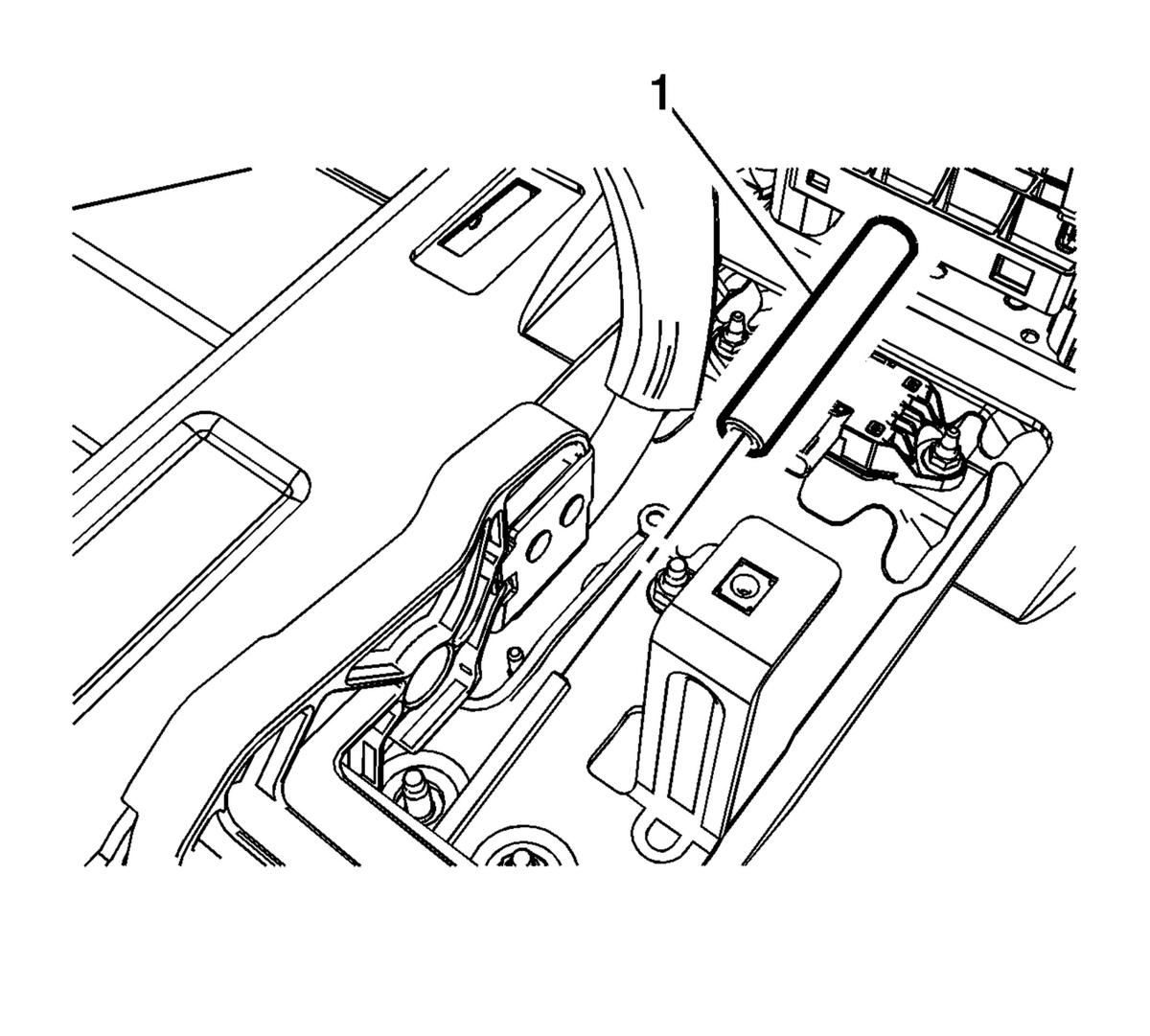

    5. Fig 2: Front Cable Tube Spacer
    GM2787061Courtesy of GENERAL MOTORS COMPANY
  5. Remove the parking brake front cable tube spacer washer (1).

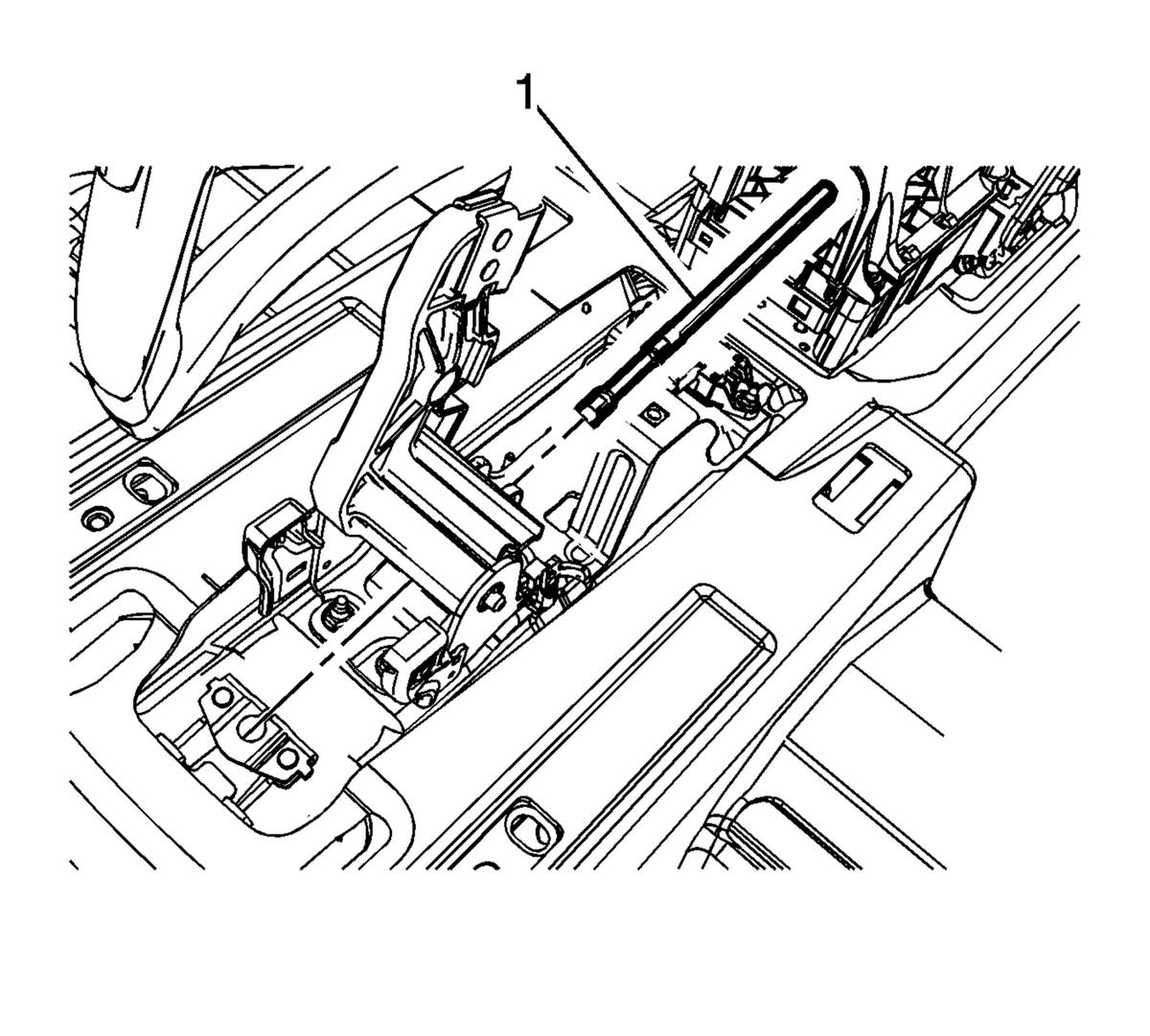

    6. Fig 3: Front Parking Brake Cable
    GM2787063Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect the front parking brake cable from the rear parking brake cable equalizer.
  7. Remove the front parking brake cable (1) from the parking brake lever.
